Stock #: Q10609
Brand: DOOSAN

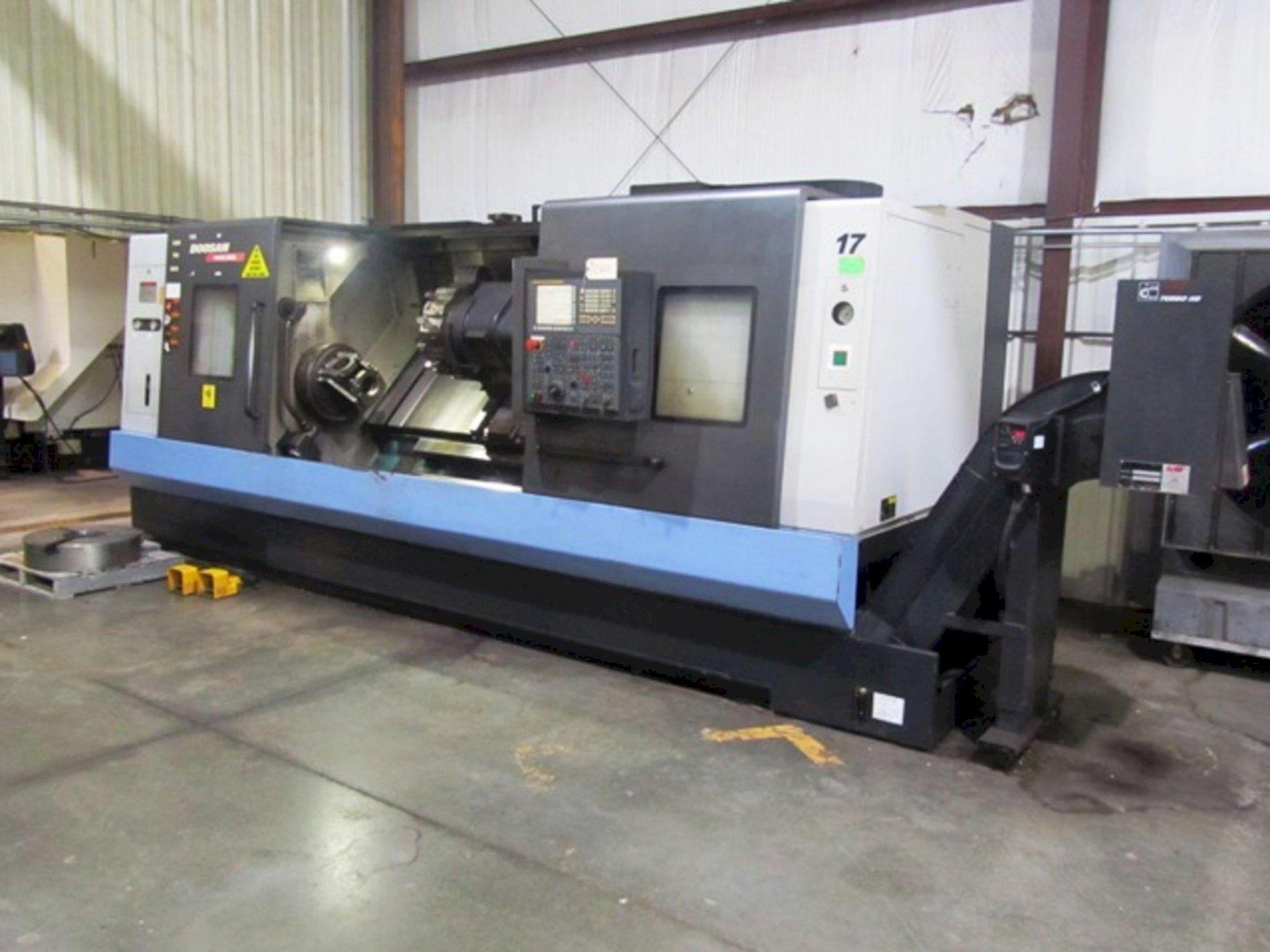

Model: PUMA 480L
Type: Lathes, CNC
Condition: Excellent
Year: 2014

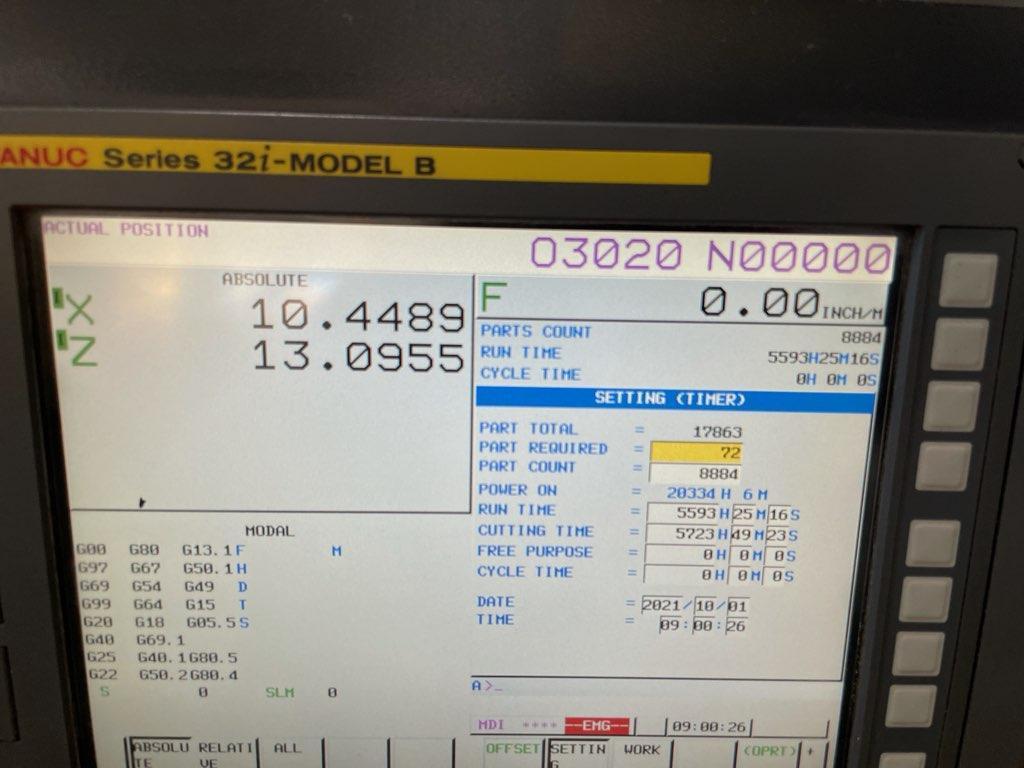

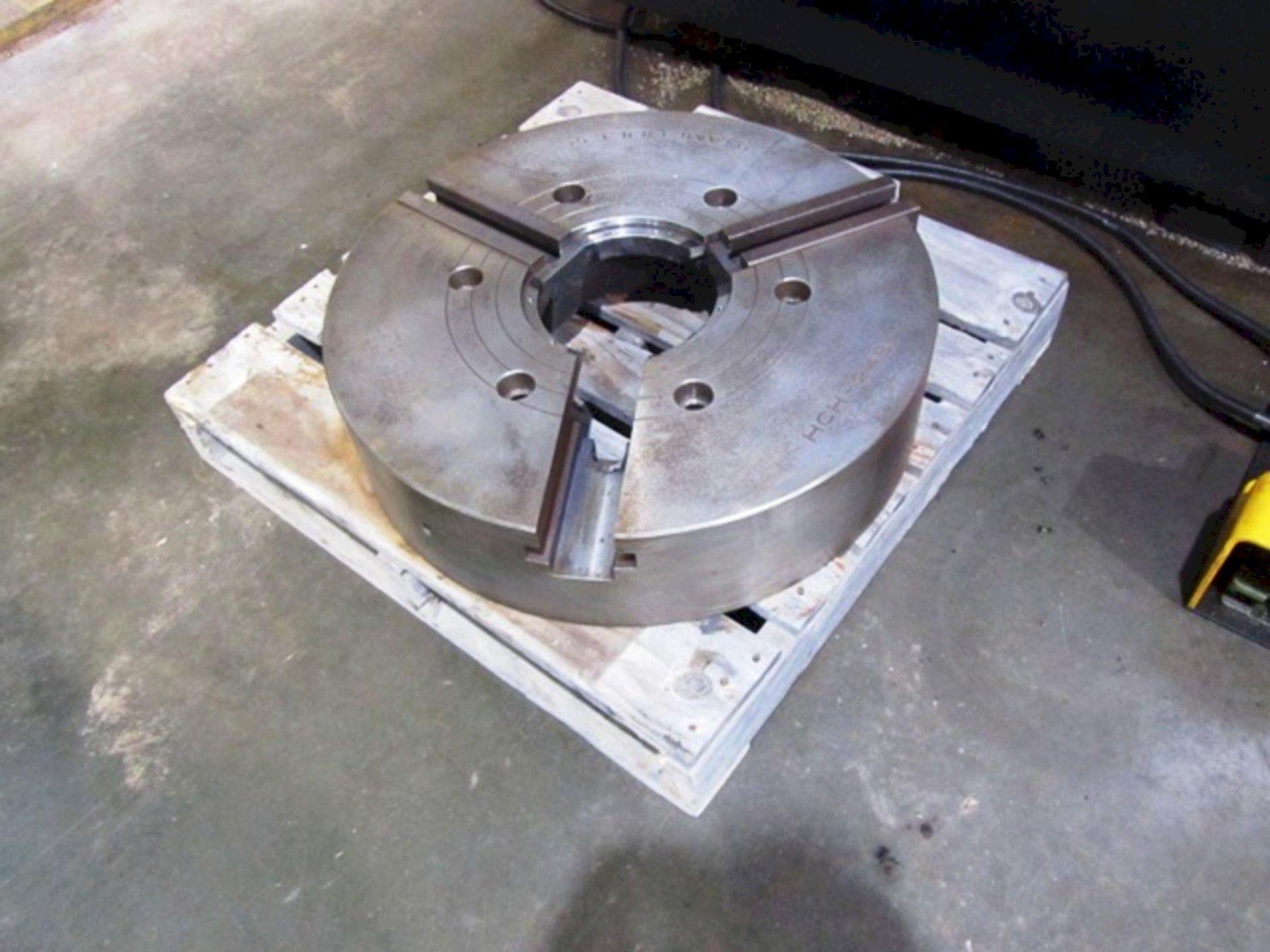

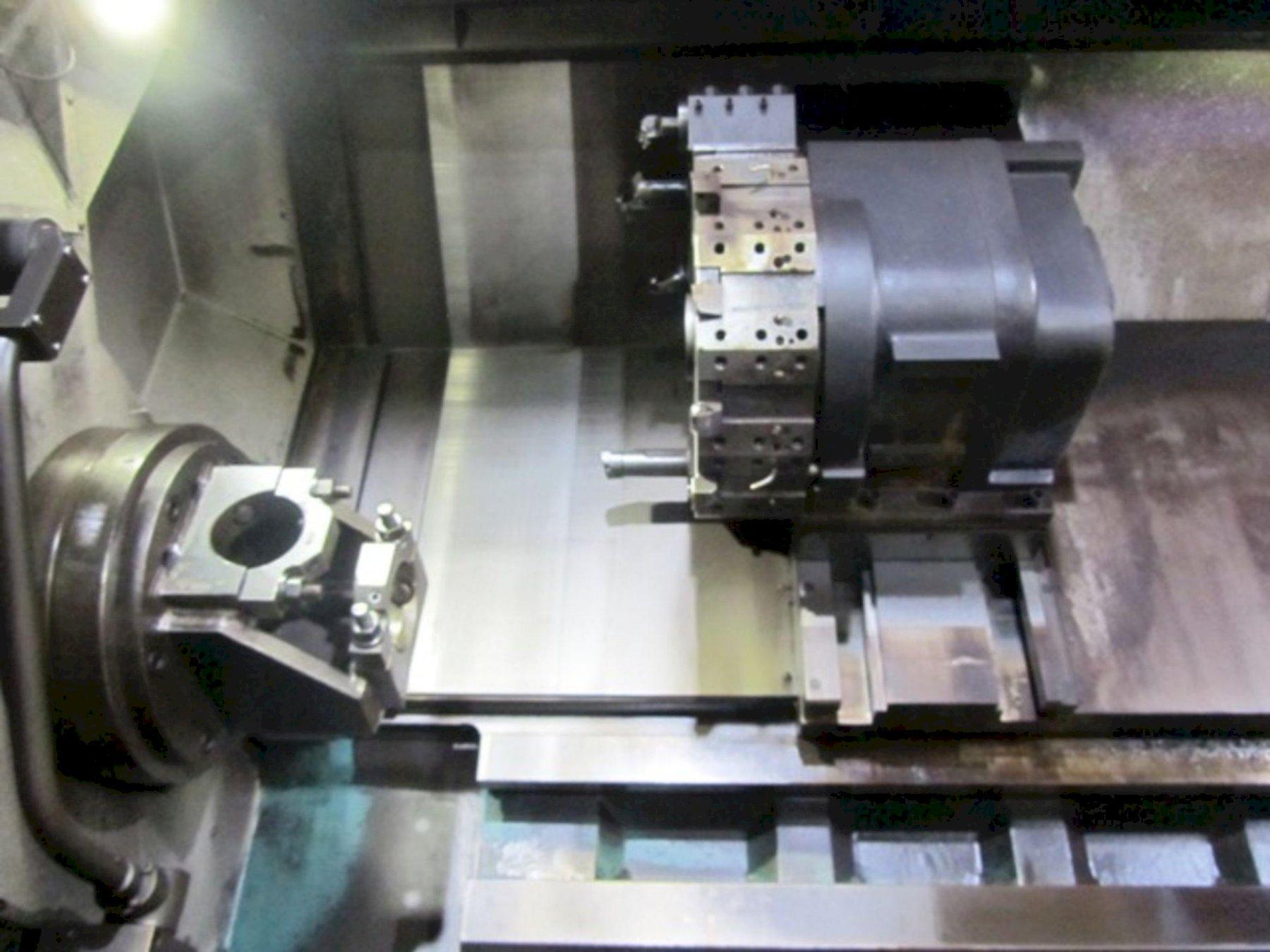

Fanuc 32i CNC Control, 10.4" Color LCD, 24" Samchully 3-Jaw Hydraulic Chuck, 35" Max Swing, 84" Between Centers, 6.5" Bar Capacity, 12 Position Turret, 2-Speed Gear Box - 1,500 Max RPM Spindle, Tool Setter, Chip Conveyor & Coolant System.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Fanuc 32i CNC Control |
| Max Swing Over Bed | 35.4" |
| Max Turning Diameter | 25.6" |
| Chuck Size | 24" |
| Max Distance Between Centers | 84" |
| Max Turning Length | 80.4" |
| X-Axis (Cross Travel) | 14.3" |
| Z-Axis (Longitudinal Travel) | 81" |
| X-Axis Rapid Traverse Rate | 630 IPM |
| Z-Axis Rapid Traverse Rate | 394 IPM |
| Tool Turret Positions | 12 |
| Spindle Nose | A1-15 |
| Spindle Bore | 7.1" |
| Bar Capacity | 6.5" |
| Spindle Speed Range | 25 - 1500 RPM |
| Spindle Horsepower | 63 HP |
| Tailstock Quill Travel | 4.1" |
| Electrics | 220/3/60 |
| Approximate Machine Dimensions | 226" x 87" |
| Approximate Machine Height | 94" |
| Approximate Machine Weight | 27,000 LBS |
CONDITION: Machine Appears to be in Excellent Condition !
