DAMAGED ALLEN BRADLEY SERVO MOTOR

Stock #: Q10596

Brand: ALLEN BRADLEY
Model: MPL-B4540F-MJ22AA
Type: Servo Motors
Condition: As-Is
Year: Not Specified

Equipped With:



Part # 7054-05-4202, Series A

Specifications:

Torque (Stall) 10.2 Nm /90 LB-in
Amp (Stall) Continuous 0 A / Peak 9.1 A
Voltage 460 V
Max Speed 3,000 RPM
Ambient 40° C
Time Rating Continuous
Power Rating 3.0 kW
Frame 45 = 130mm (5.12")
Frequency 0-200 Hz
Motor Phase 3-Phase
Insulation Class H (Max 180° C / 356° F)
Encoder Multi-turn high-resolution
Approximate Dimensions 12" x 10"
Approximate Height 8"
Approximate Weight 20 LBS

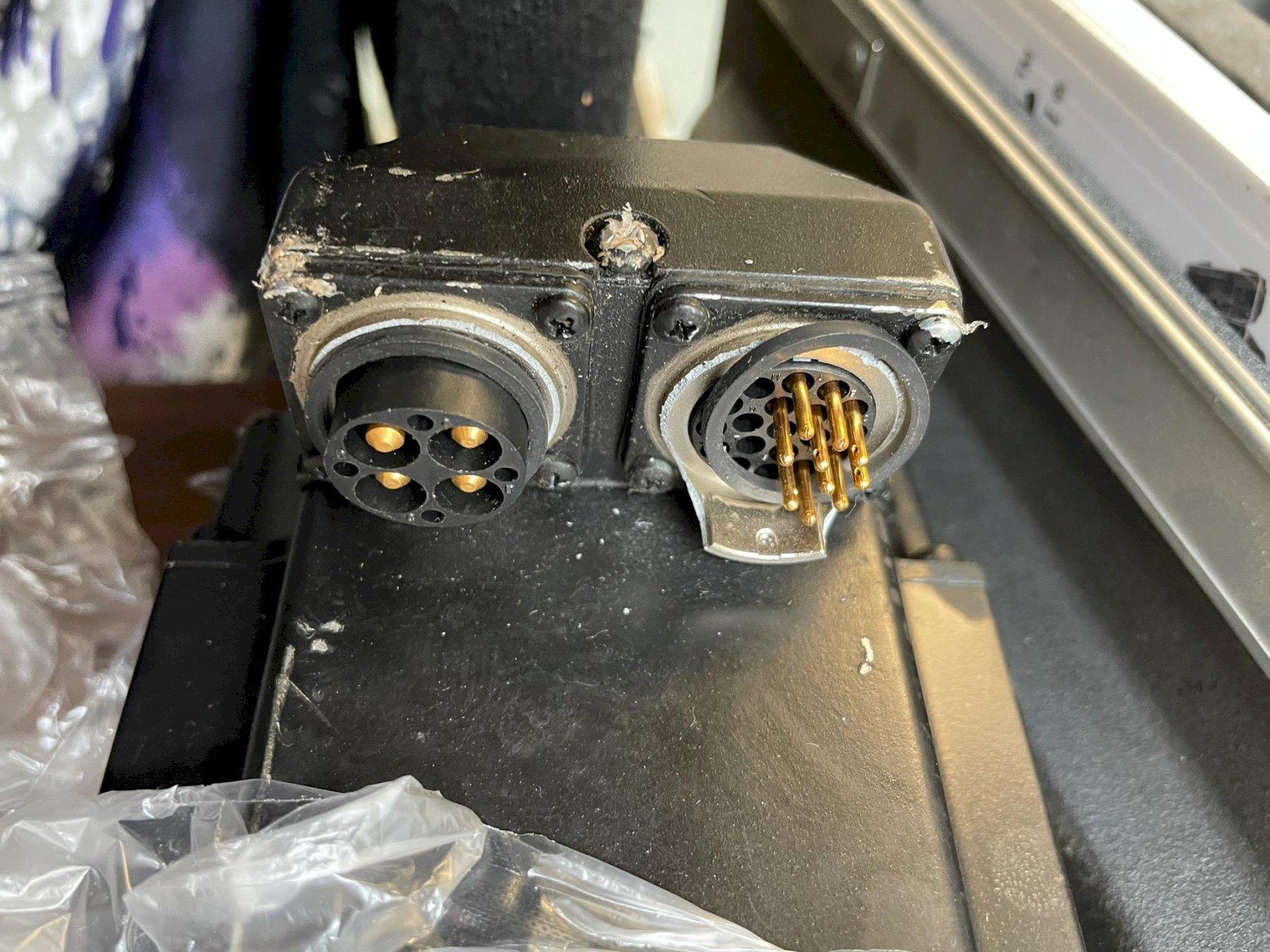

CONDITION: This servo motor was damaged in shipment and broke the connectors. Allen Bradley does not have these obsolete connectors any longer.
