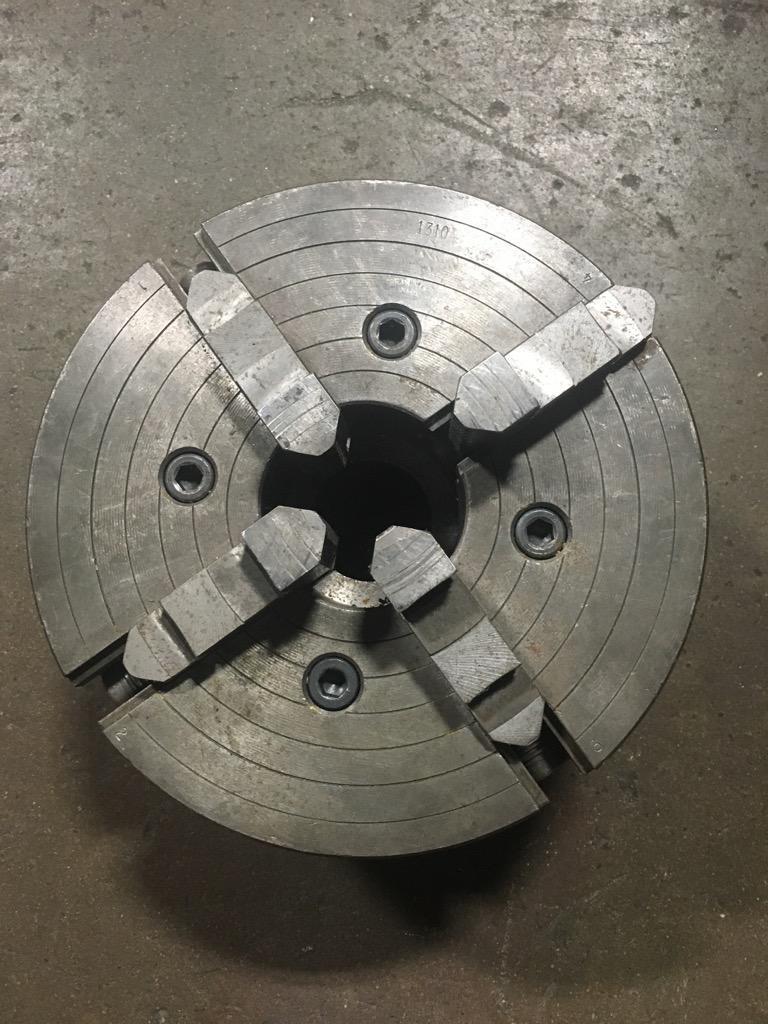

10" BUCK 4-JAW INDEPENDENT CHUCK

Stock #: Q10542

Brand: BUCK
Model: 1310
Type: Chucks
Condition: Excellent
Year: Not Specified

Equipped With:


Buck Independent Chucks Are Built from Forged Steel for Long, Accurate Service, Made of Vibration Dampening High-Tensile Semi-Steel, Feature T-Slots and Recessed Back for Minimum Overhang, D-Style Spindle Adapter with Cam-Locks. Hardened, 1-Piece, Reversible, Jaws Are Heat-Treated Alloy Steel.

Specifications:

Type Independent
# Jaws 4
Body Diameter 10"
Body Height 3.031"
Through Hole yes
Through Hole Diameter 3.015"
Recess Diameter 6.312"
Recess Depth 0.27"

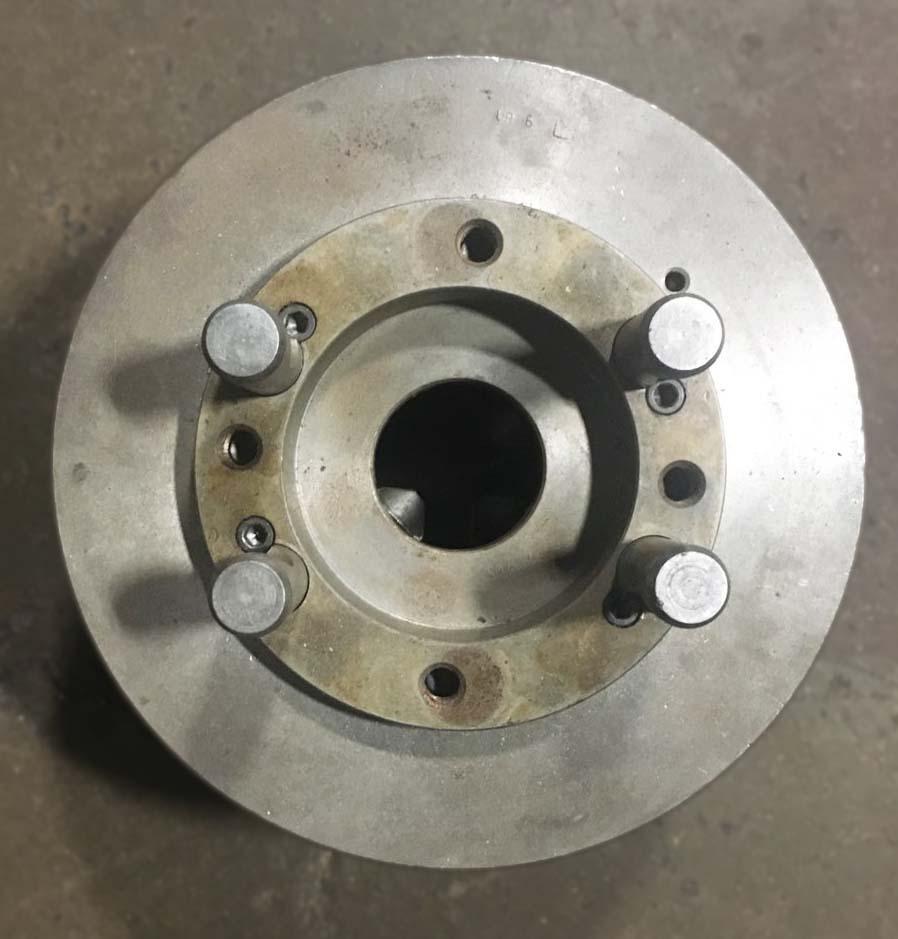

Spindle Mount Type D-Style
Distance Centerline to Bolt Hole 2.625"
Bolt Hole Diameter 0.531"
Jaw Width 3.5"
Jaw Height 2.38"
Jaw Thickness 3.96"
Max Speed 2,000 RPM
Clamping Range 0.39" - 9.84"
Approximate Weight 57 LBS
CONDITION: This Chuck Appears to be in Excellent Condition.
