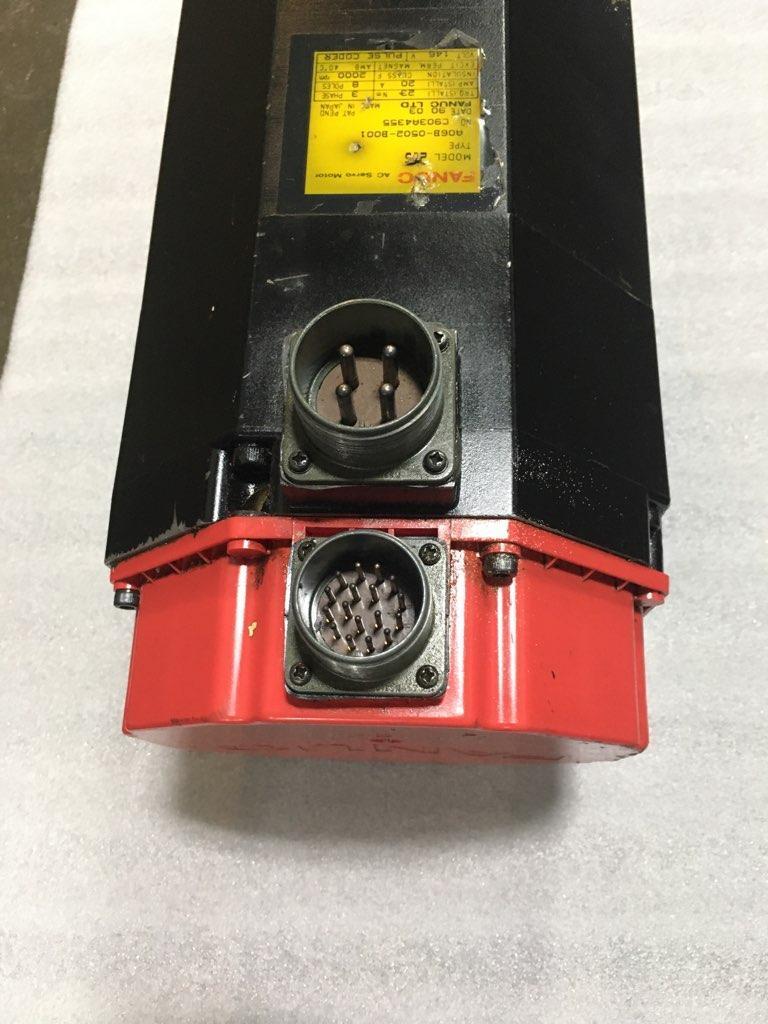

FANUC 20S SERVO MOTOR A06B-0502-B001

Stock #: Q10525

Brand: FANUC
Model: 20S A06B-0502-B001
Type: Servo Motors
Condition: Used
Year: 1990

Equipped With:

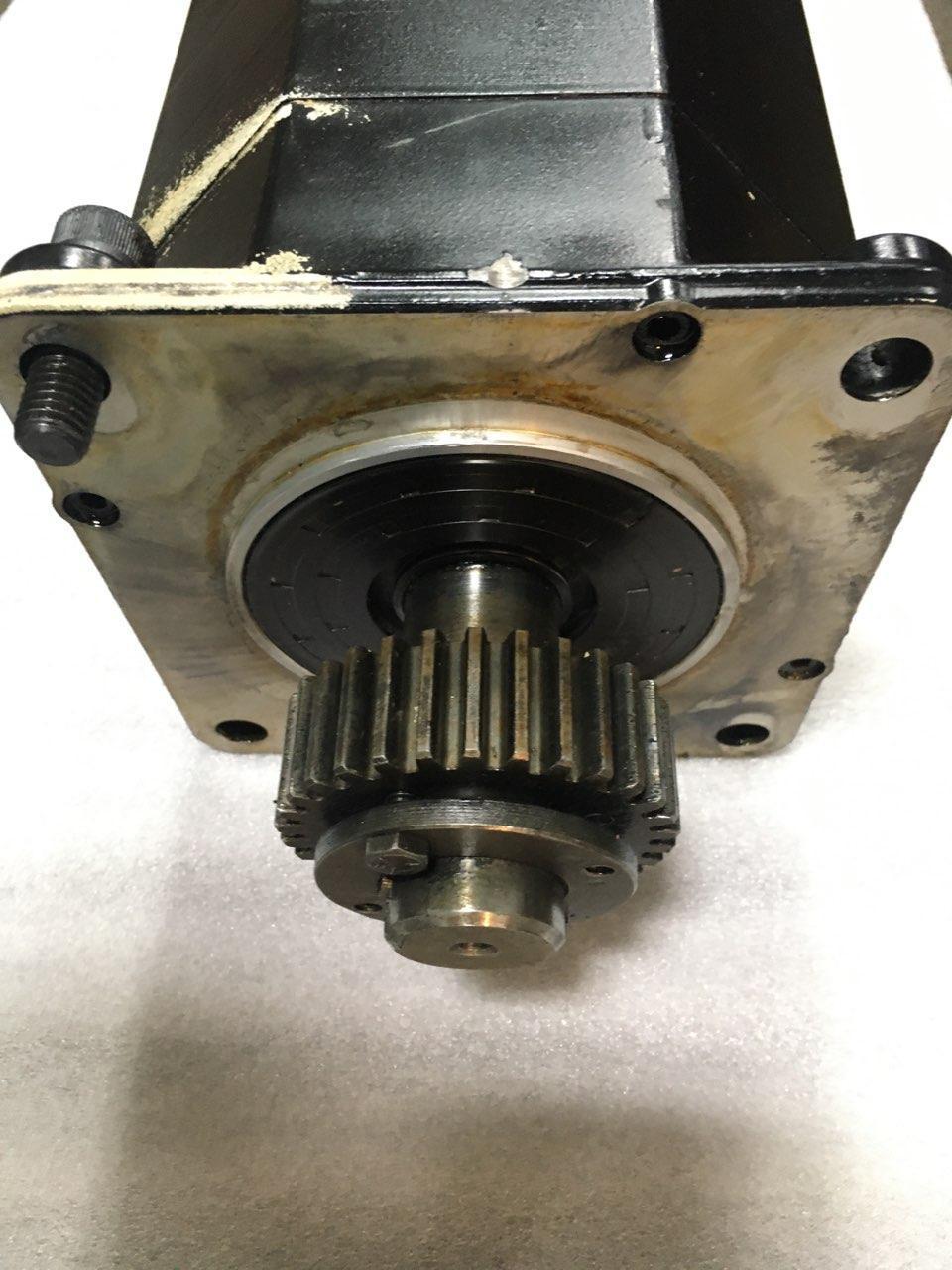

Straight, Keyed Shaft

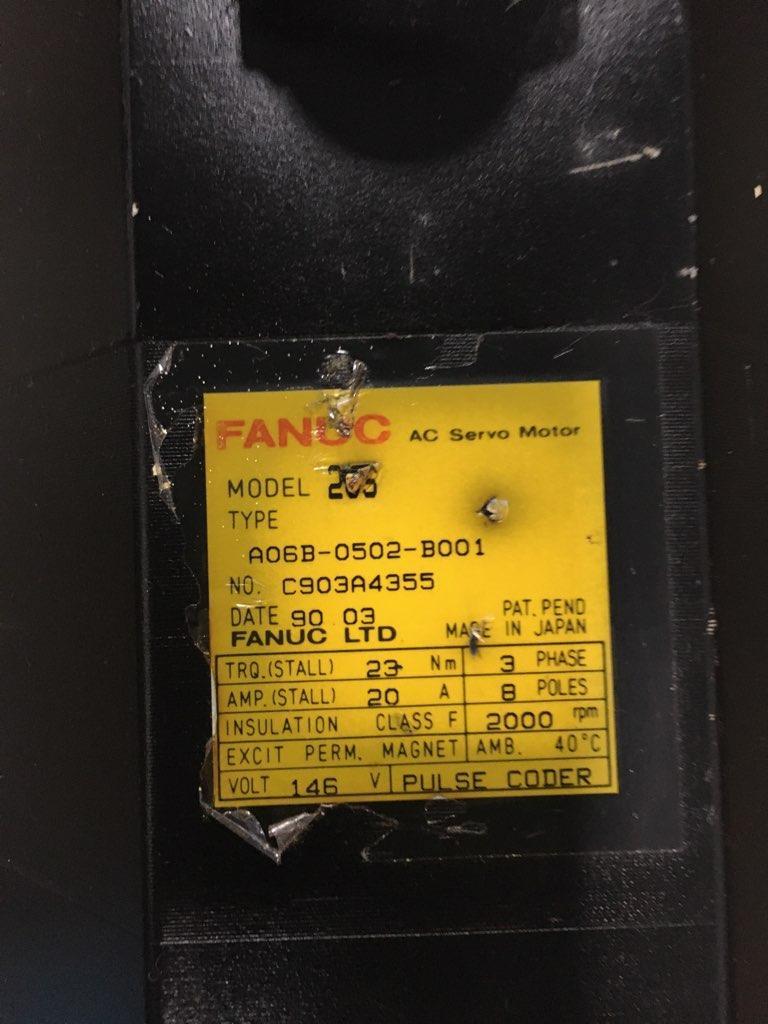

Specifications:

Torque (Stall) 23 Nm
Amp (Stall) 20 A
Voltage 146 V
# Poles 8
Max Speed 2,000 RPM
Ambient 40° C
Motor Phase 3-Phase
Insulation Class F (Max 155° C / 311° F)
Encoder 2000P
Discontinued by Manufacturer? yes

FANUC 20S SERVO MOTOR A06B-0502-B001

Fields marked with * are required.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Fields marked with * are required.


      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      Brand
      FANUC

      Model
      20S A06B-0502-B001

      Type
      Servo Motors

      Stock #
      Q10525

      Condition
      Used

      Year
      1990

      Request a Quote Today!

      Get Started

      Equipped With


      Straight, Keyed Shaft

      Specifications

      Torque (Stall) 23 Nm
      Amp (Stall) 20 A
      Voltage 146 V
      # Poles 8
      Max Speed 2,000 RPM
      Ambient 40° C
      Motor Phase 3-Phase
      Insulation Class F (Max 155° C / 311° F)
      Encoder 2000P
      Discontinued by Manufacturer? yes
