Stock #: Q10557
Brand: HNK
Model: HB-130CX
Type: Boring Mills, Horizontal, Table Type
Condition: Used
Year: 2000
Fanuc 16M CNC Control, High Pressure Coolant System, 14,202 Cutting Hours.
Specifications: |
|
---|---|
CNC Control | yes |

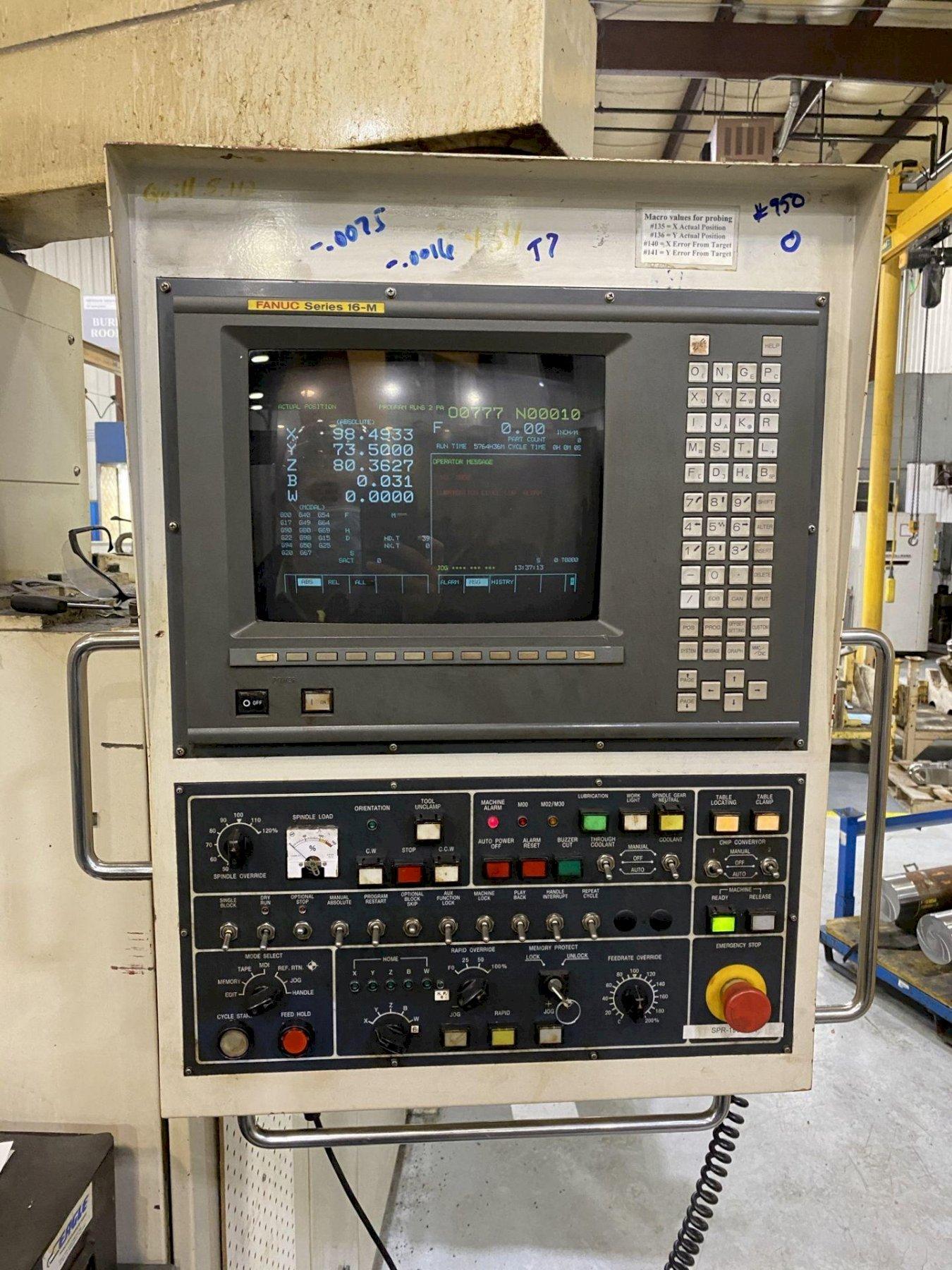

Type of CNC Control | Fanuc 16M CNC Control |
Spindle Diameter | 5.11" |
Table Size | 63" x 157" |
Table Load Capacity | 44,000 LBS |
Rotary Table Size | 63"x 63" |
X-Axis (Table Cross Travel) | 157" |
Y-Axis (Vertical Travel ) | 91" |
Z-Axis (Spindle (Quill) Travel) | 51" |
W-Axis (Column Longitudinal Travel) | 27" |
Max Spindle Speed | 2,500 RPM |
Automatic Tool Changer Capacity (ATC) | 40 |
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Brand
HNK
Model
HB-130CX
Type
Boring Mills, Horizontal, Table Type
Stock #
Q10557
Condition
Used
Year
2000
Equipped With |
---|
Fanuc 16M CNC Control, High Pressure Coolant System, 14,202 Cutting Hours. |
Specifications |
|
---|---|
CNC Control | yes |
Type of CNC Control | Fanuc 16M CNC Control |
Spindle Diameter | 5.11" |
Table Size | 63" x 157" |
Table Load Capacity | 44,000 LBS |
Rotary Table Size | 63"x 63" |
X-Axis (Table Cross Travel) | 157" |
Y-Axis (Vertical Travel ) | 91" |
Z-Axis (Spindle (Quill) Travel) | 51" |
W-Axis (Column Longitudinal Travel) | 27" |
Max Spindle Speed | 2,500 RPM |
Automatic Tool Changer Capacity (ATC) | 40 |
