Stock #: Q10504
Brand: DAYKIN
Model: MDGTA-05
Type: Transformers
Condition: Used
Year: Not Specified

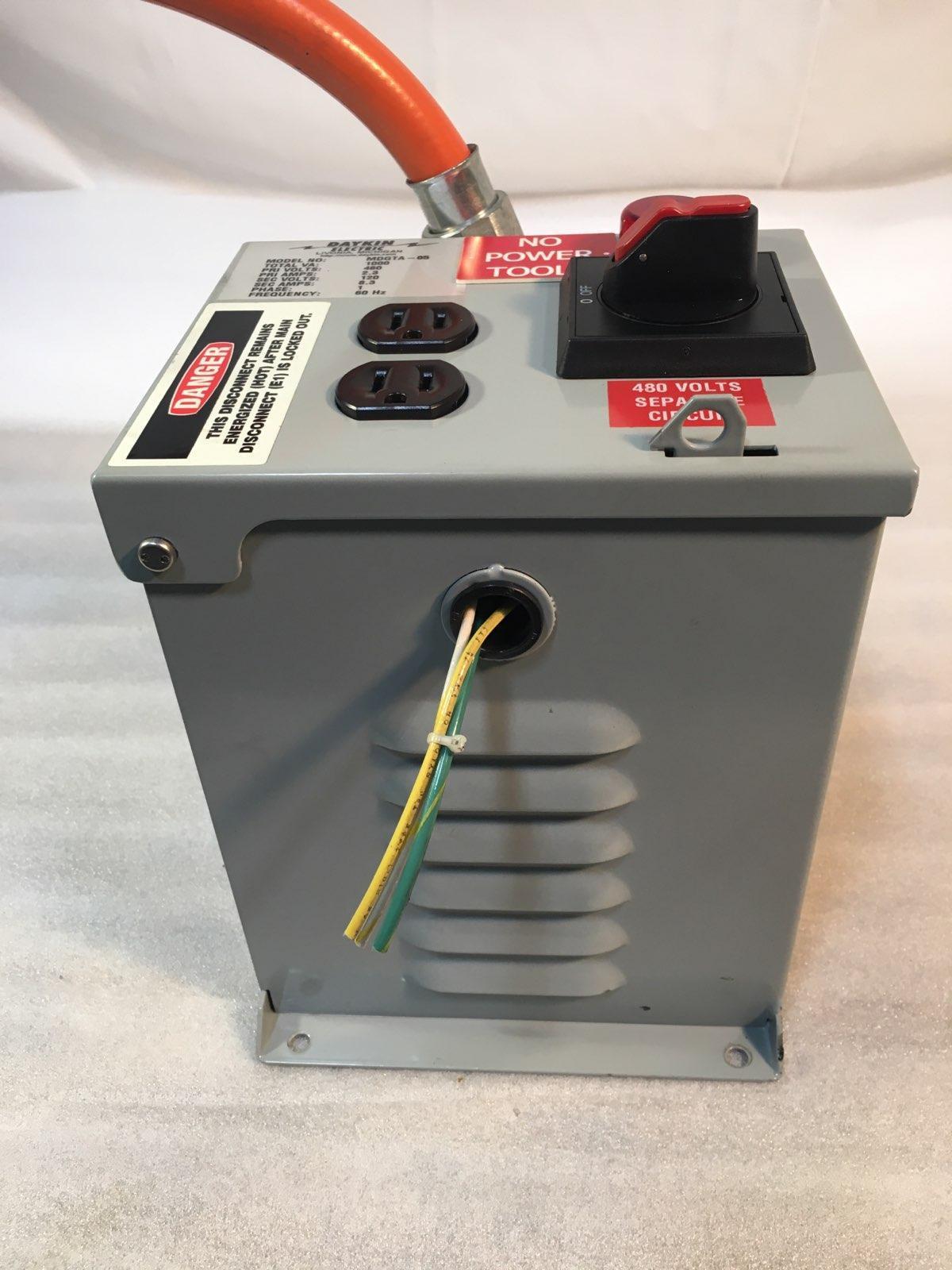

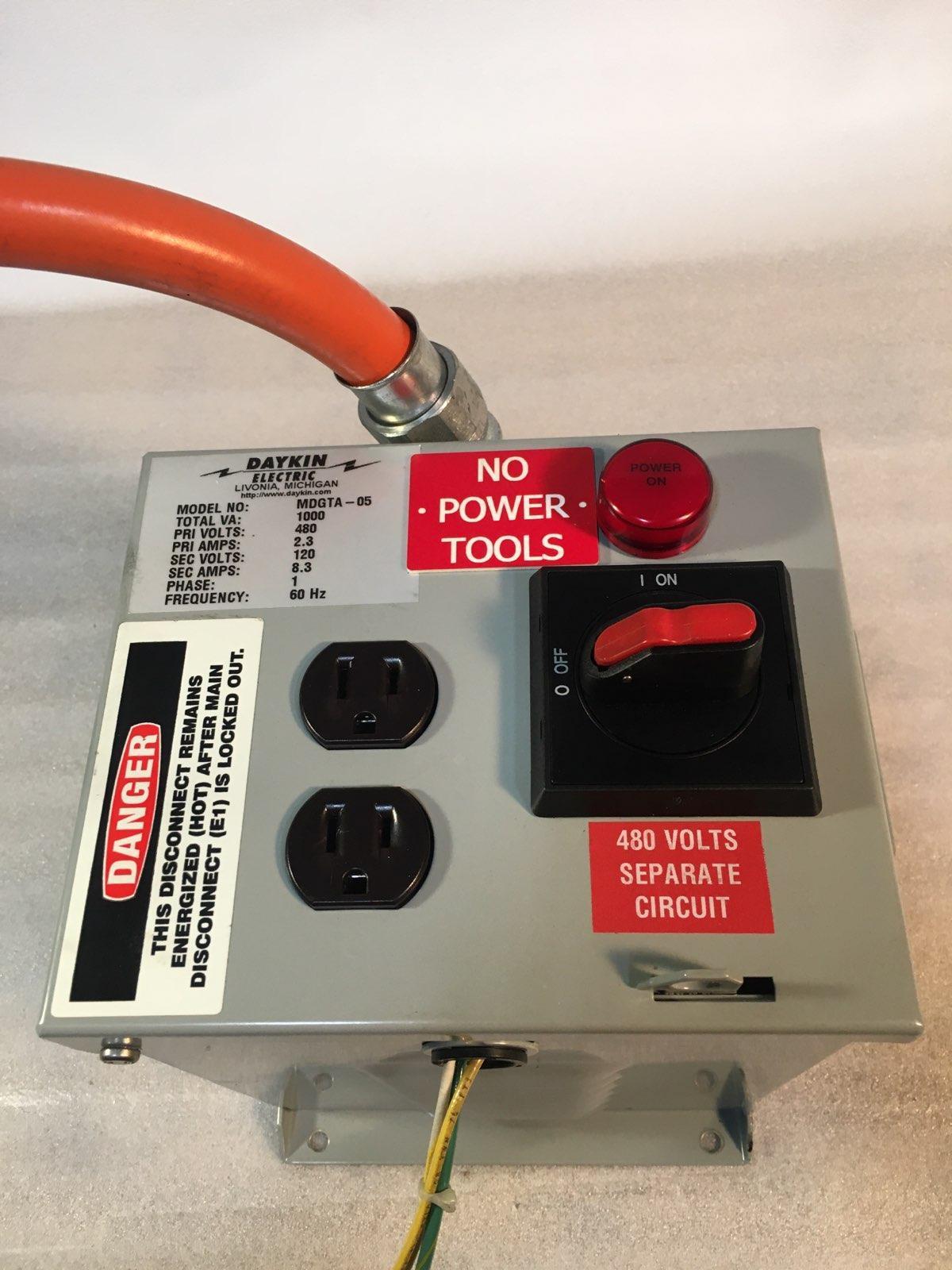

Electrical assembly which consists of a disconnect switch, copper wound transformer, fuse block and fuses.

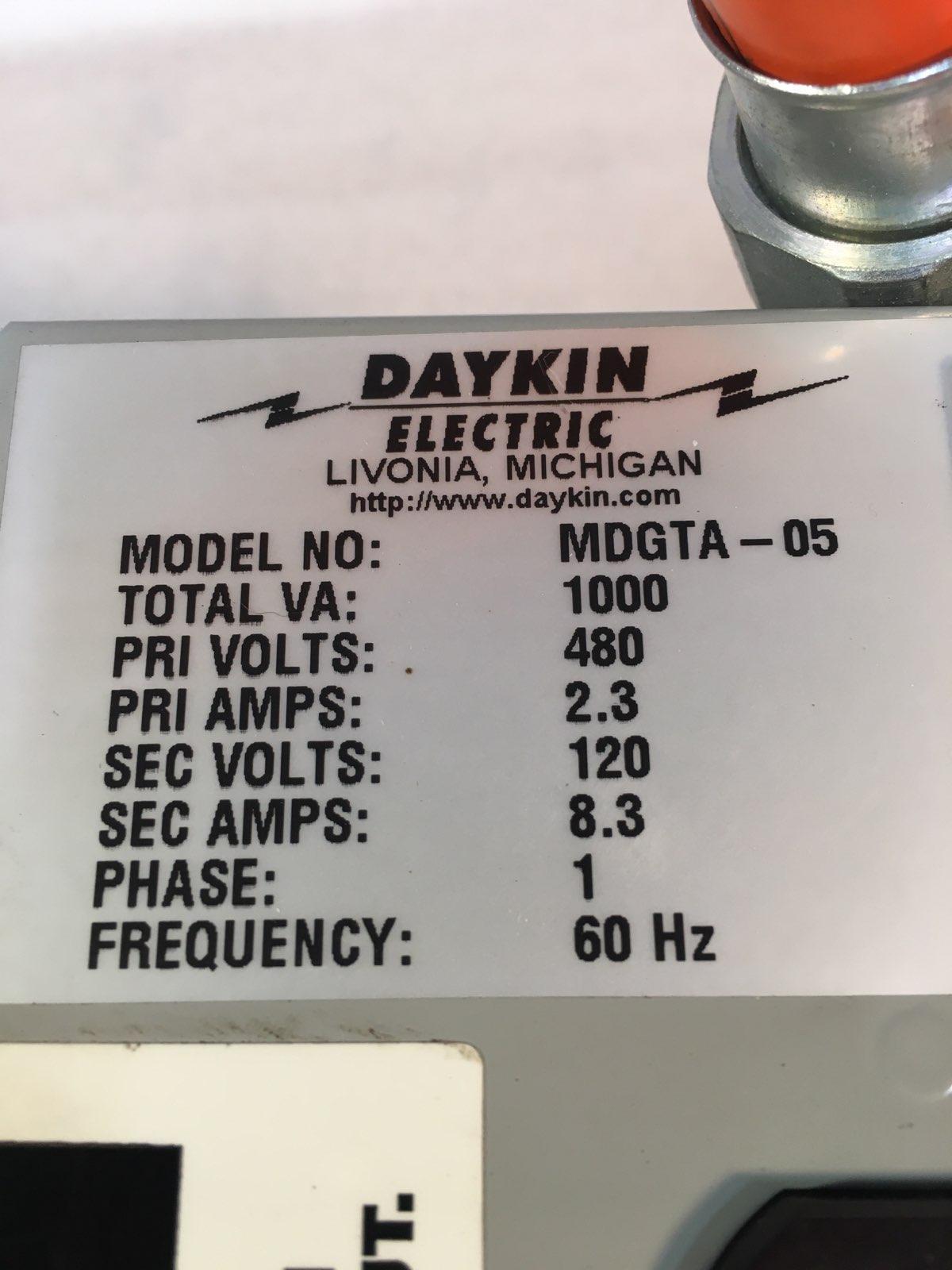

Specifications: |
|
|---|---|
| Type | Transformer Disconnect |
| Total VA | 1000 V |
| Primary Volts | 480 V |
| Primary Amps | 2.3 A |
| Secondary Volts | 120 V |
| Secondary Amps | 8.3 A |
| Phase | Single |
| Frequency | 60 Hz |
| Approximate Dimensions | 9" x 11" x 7" |
| Approximate Weight | 28 LBS |
