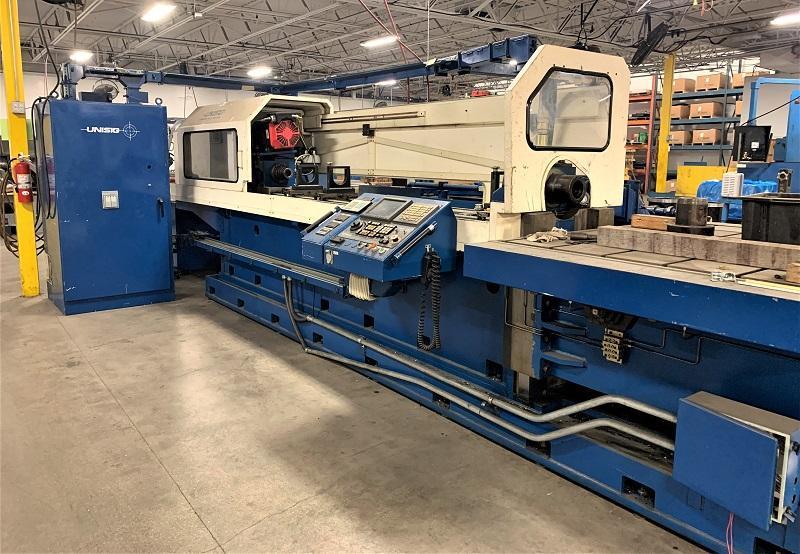

Stock #: Q10475
Brand: UNISIG
Model: USK50-BTA2000
Type: Drills, Deep Hole
Condition: Excellent
Year: 2003

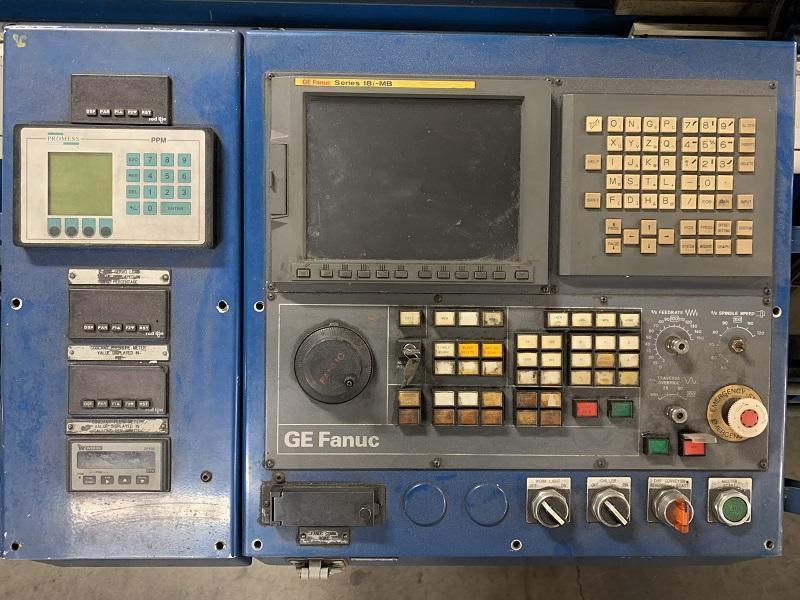

Fanuc 18i CNC Control, Multiple Part Program Storage, RS-232 Port, 64" x 64" 2-Axis CNC Table, 3000 PSI High Pressure Coolant Unit, 65 gal/min Programmable Coolant Flow and Pressure, Chip Conveyor.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Fanuc 18i CNC Control |
| Max BTA/STS Drilling Capacity | 2" |
| Max Drilling Capacity Counter Bore | 3" |
| Max Drilling Depth, (6) Whip Guides | 80" |
| Max Drilling Depth, No Whip Guides | 120" |
| Table Size | 64" x 64" |
| X-Axis (Table Cross Travel) | 32" |
| Table Vertical Travel | 12" |
| Table Load Capacity | 7,500 LBS |
| Spindle Horsepower | 30 HP |
| Spindle Speed | 3,500 RPM |
| Max Spindle Torque | 207 FT-LBS |
| Drilling Feed Force | 3,300 LBS |
| Approximate Machine Dimensions | 390" x 120" |
| Approximate Machine Height | 94" |
| Approximate Machine Weight | 32,000 LBS |
CONDITION: Machine Appears to be in Excellent Condition !






Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Equipped With |
|---|
|
Fanuc 18i CNC Control, Multiple Part Program Storage, RS-232 Port, 64" x 64" 2-Axis CNC Table, 3000 PSI High Pressure Coolant Unit, 65 gal/min Programmable Coolant Flow and Pressure, Chip Conveyor. |
Specifications |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Fanuc 18i CNC Control |
| Max BTA/STS Drilling Capacity | 2" |
| Max Drilling Capacity Counter Bore | 3" |
| Max Drilling Depth, (6) Whip Guides | 80" |
| Max Drilling Depth, No Whip Guides | 120" |
| Table Size | 64" x 64" |
| X-Axis (Table Cross Travel) | 32" |
| Table Vertical Travel | 12" |
| Table Load Capacity | 7,500 LBS |
| Spindle Horsepower | 30 HP |
| Spindle Speed | 3,500 RPM |
| Max Spindle Torque | 207 FT-LBS |
| Drilling Feed Force | 3,300 LBS |
| Approximate Machine Dimensions | 390" x 120" |
| Approximate Machine Height | 94" |
| Approximate Machine Weight | 32,000 LBS |
| CONDITION: Machine Appears to be in Excellent Condition ! |
