Stock #: K16001
Brand: GIDDINGS & LEWIS
Model: RT1250
Type: Boring Mills, Horizontal, Table Type
Condition: Excellent
Year: 2006

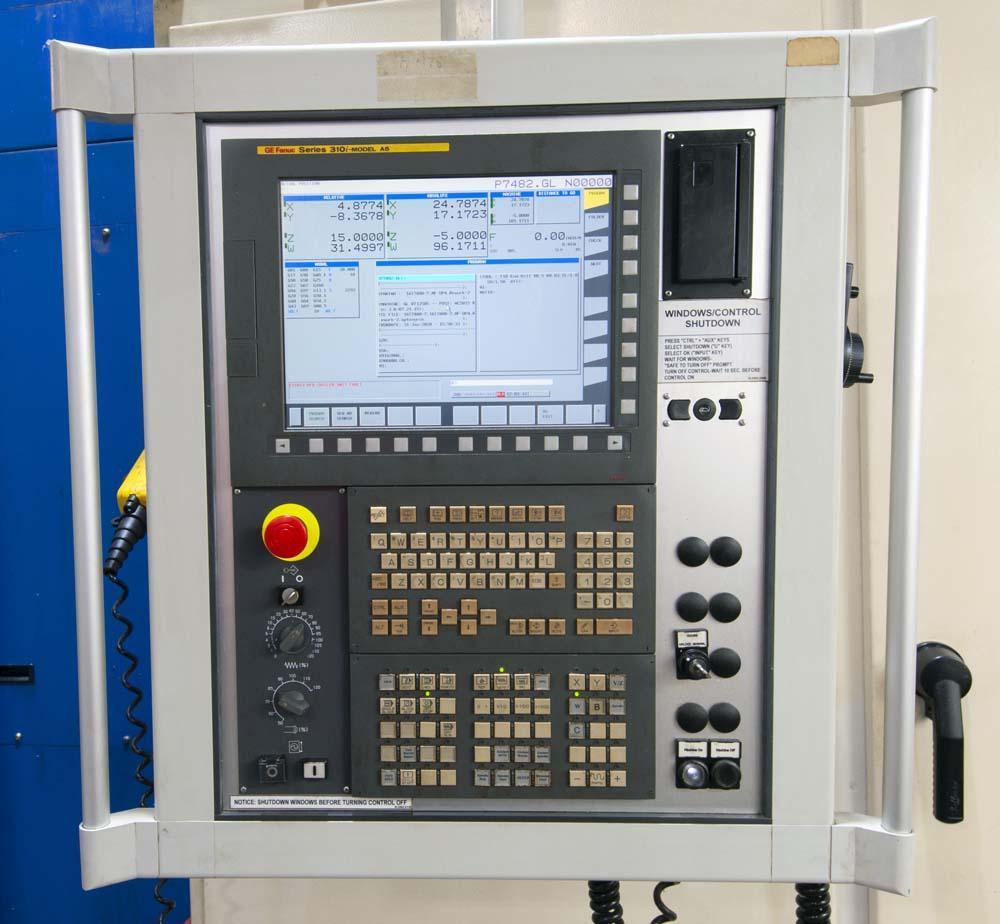

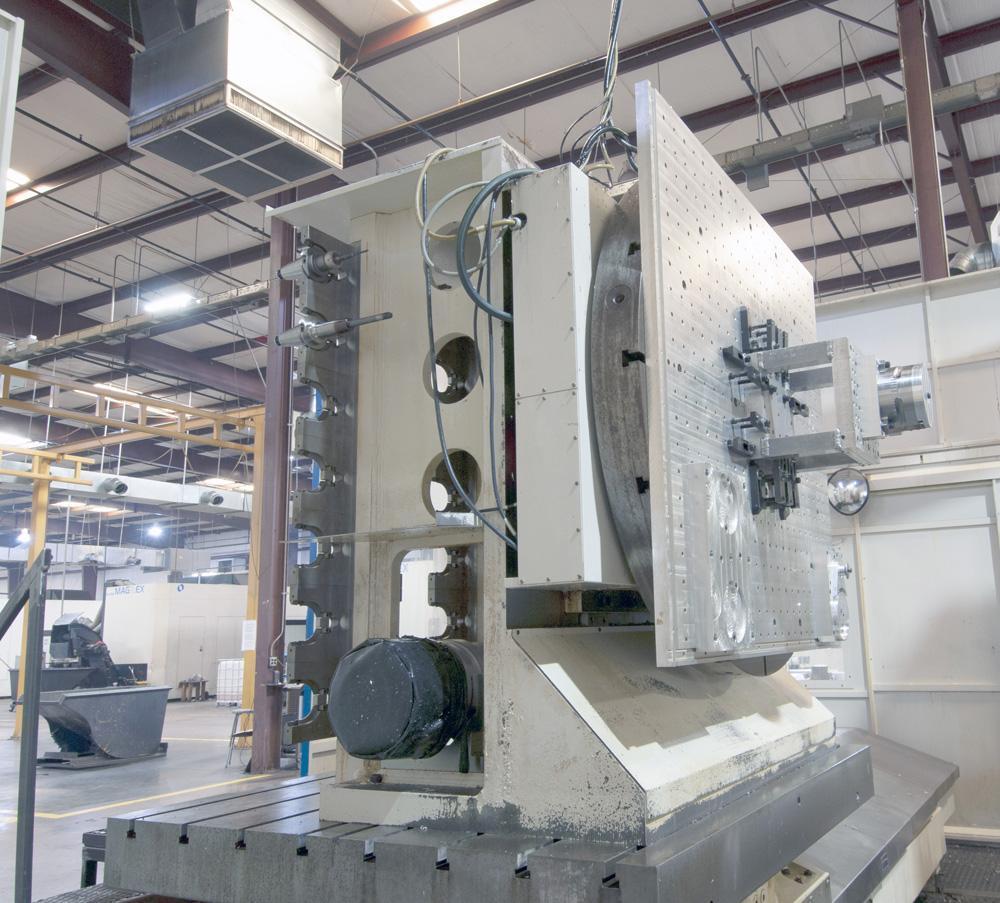

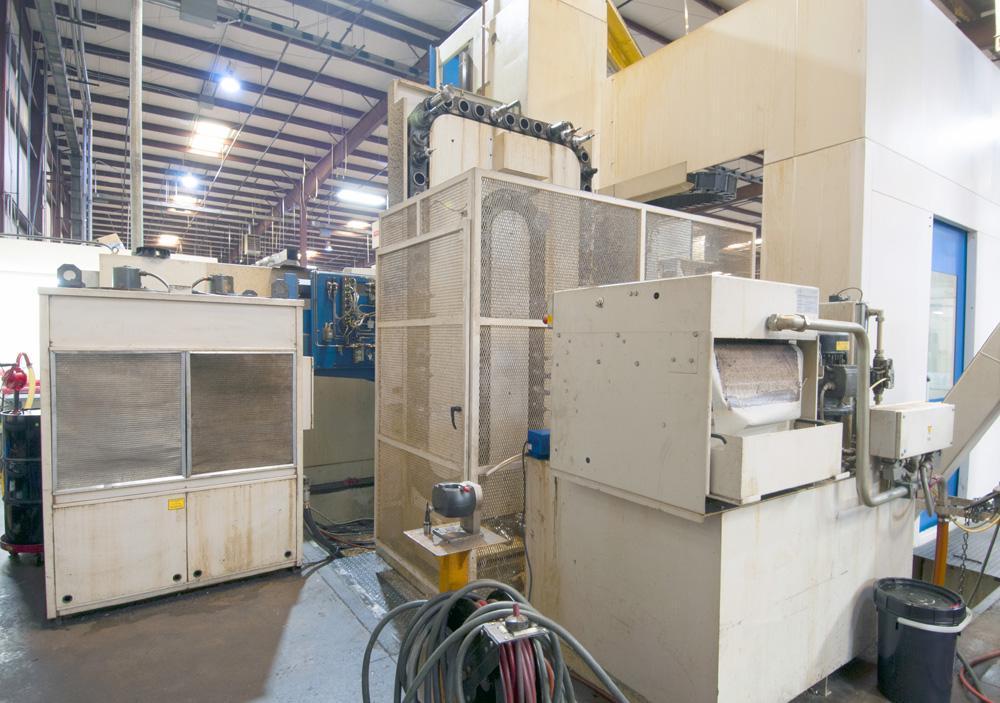

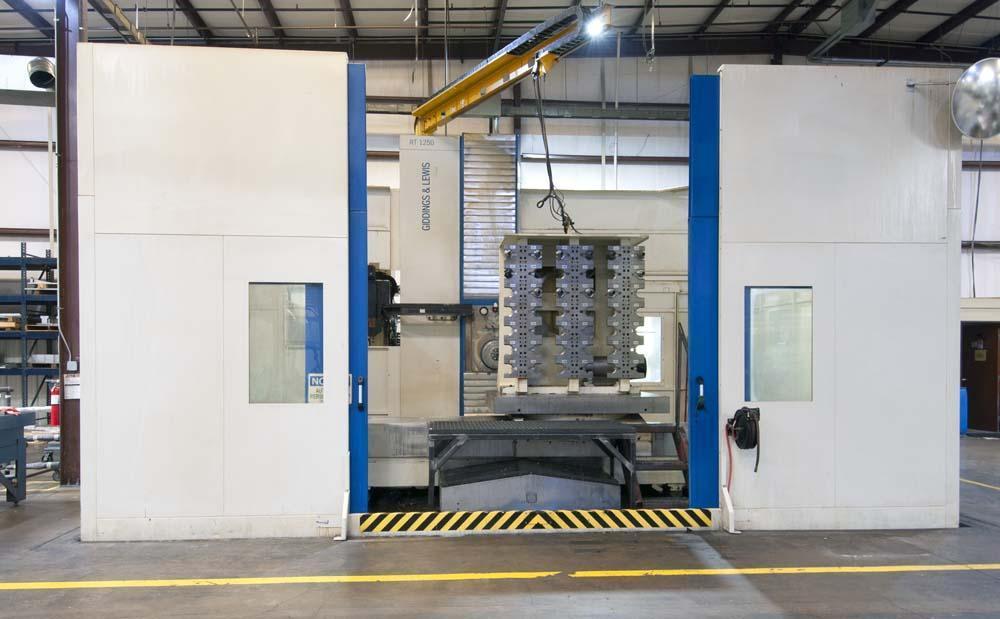

Fanuc 310i CNC Control, Ethernet Ports, RS232 Port, Renishaw Probing, 90 Station Double Arm Automatic Tool Changer, 42 Position Rack Style Tool Rack for Extra Long Tools, 63" x 71" Full Contouring 4th Axis Rotary Table, 49" Full Contouring 5th Axis Vertical Rotary Table, 50 HP/75 HP Spindle, Cat-50 Taper Spindle, Full Enclosure, Chip Conveyor and Coolant System.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Fanuc 310i CNC Control |
| Spindle Diameter | 6" |
| Table Size | 60" X 71" |
| Table Load Capacity | 33,000 LBS |
| X-Axis (Table Cross Travel) | 141" |
| Y-Axis (Vertical Travel ) | 98.4" |
| Z-Axis (Spindle (Quill) Travel) | 49.2" |
| W-Axis (Saddle Longitudinal Travel) | 78.7" |
| Rapid Traverse Rate (X,Y& W) | 787 IPM |
| Spindle Taper | #50 CAT |
| Spindle Horsepower | 50/75 HP |
| Spindle Speeds | 10 - 3500 RPM |
| Coolant Thru Spindle | no |
| Electrics | 460/3/60 |
CONDITION: This Machine Appears to be in Excellent Condition!
