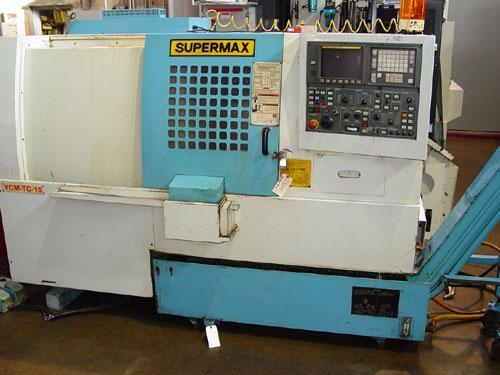

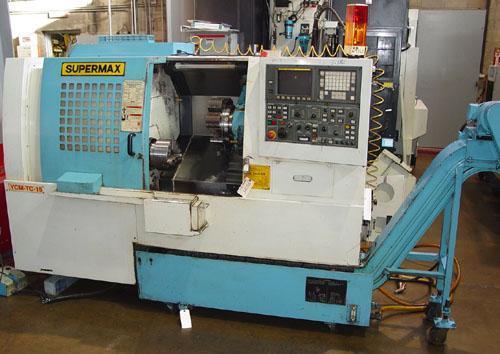

SUPERMAX YCM TC-15 CNC TURNING CENTER

Stock #: K15994

Brand: SUPERMAX
Model: TC-15
Type: Lathes, CNC
Condition: Very Good
Year: 2000

Equipped With:

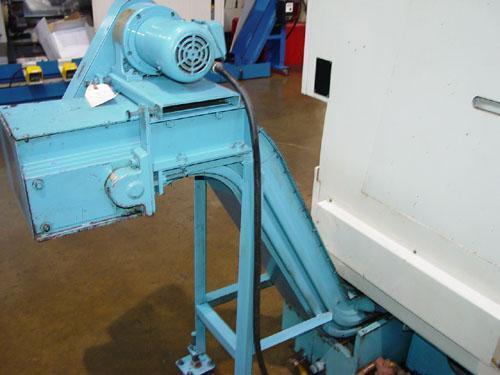

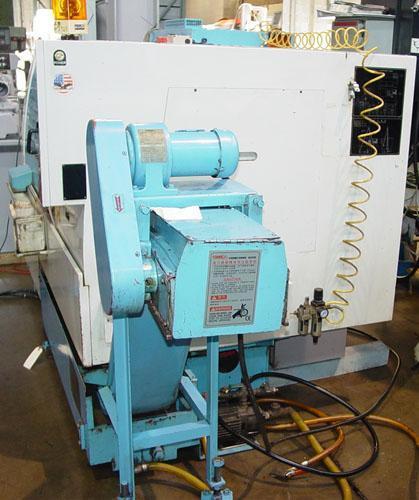

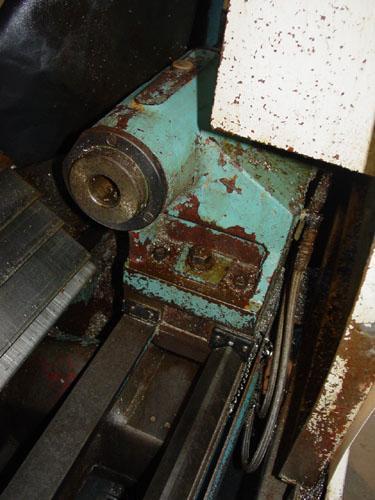

Fanuc 0T CNC Control, Multiple Part Program Storage, RS232 Port, 8" 3-Jaw Chuck, 12 Position Tool Turret, All Fanuc Drives and Motors, Tailstock, Chip Conveyor and Coolant System.

Specifications:

CNC Control yes
Type of CNC Control Fanuc 0T CNC Control
Max Swing Over Bed 18.9"
Max Swing Over Carriage 12.2"
Max Turning Diameter 9.8"
Max Tailstock Position 18.4"

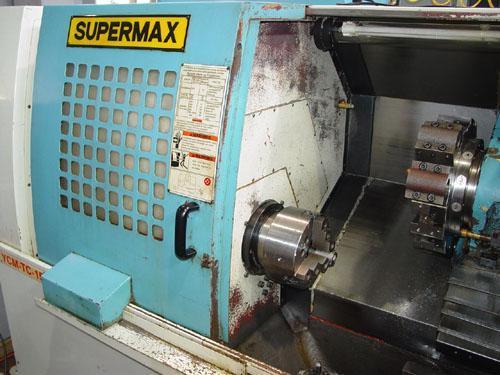

Chuck Size 8"
X-Axis (Cross Travel) 9.8"
Z-Axis (Longitudinal Travel) 19.7"
X-Axis Feed Rates .1-394 IPM
X-Axis Rapid Traverse Rate 394 IPM
Z-Axis Feed Rates .1-394 IPM
Z-Axis Rapid Traverse Rate 787 IPM
Number of Tool Turrets 1

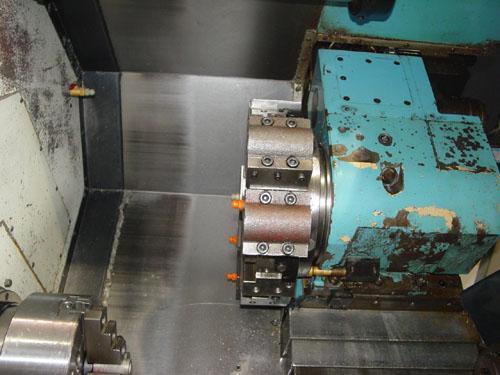

Tool Turret Positions 12 Total
Spindle Nose A2-6
Bar Capacity 1.77"
Spindle Speed Range 45-6000 RPM
Spindle Horsepower 15 HP
Electrics 220/3/60
Approximate Machine Dimensions 130" x 60"
Approximate Machine Height 73"
Approximate Machine Weight 7,600 LBS
CONDITION:  Machine Appears to be in Very Good Condition !
