Stock #: K16005
Brand: HAAS
Model: VF-11/50
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2011

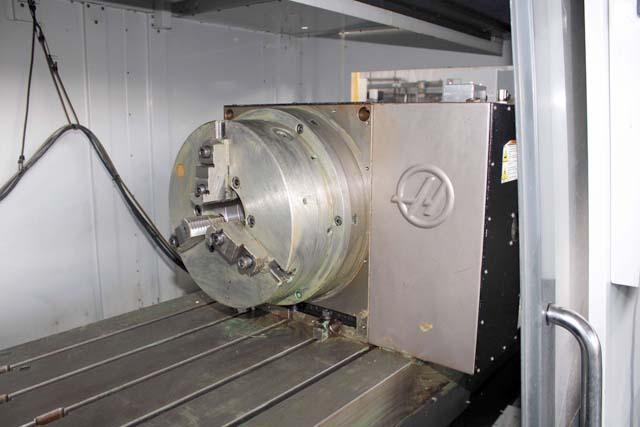

HAAS 32-Bit CNC Control, Rotational & Scaling, Rigid Tapping, Haas HRT450 18" Full Contouring 4th Axis Rotary Table With Tailstock, Remote Jog Handle, Heavy Duty 40 HP Cat-50 Spindle Geared Spindle, 2 Range Gear Box, 30 Station Side Mount Automatic Tool Changer, 1000 PSI Thru the Spindle Coolant System, Metal Way Covers, Work Light, Chip Auger, Coolant System.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Haas High Speed |
| # of Axis | 4 |
| Table Size | 120" x 28" |
| Table Load Capacity | 4000 LBS |
| X-Axis (Longitudinal Travel) | 120" |
| Y-Axis (Cross Travel) | 40" |
| Z-Axis (Vertical Travel) | 30" |
| A-Axis (Pallet Rotation Travel) | Full Contouring , 360 Degree, 360,000 Position |
| Max Clearance Tabletop to Spindle Nose | 35" |
| Feed Rates, All Axes | 0 - 500 IPM |
| Rapid Traverse Rate, All Axes | 600 IPM |
| Spindle Horsepower | 40 HP |
| Max Spindle Speeds | 0 - 7500 RPM |
| Spindle Taper | #50 CAT |
| Coolant Thru Spindle | yes |
| Automatic Tool Changer Capacity (ATC) | 30 |
| Automatic Tool Changer Style | Side Mount |
| Electrics | 230/3/60 |
| Approximate Machine Dimensions | 288" x 101" |
| Approximate Machine Height | 128" |
| Approximate Machine Weight | 39,000 LBS |
CONDITION: This Machine Appears to be in Excellent Condition !
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Equipped With |
|---|
|
HAAS 32-Bit CNC Control, Rotational & Scaling, Rigid Tapping, Haas HRT450 18" Full Contouring 4th Axis Rotary Table With Tailstock, Remote Jog Handle, Heavy Duty 40 HP Cat-50 Spindle Geared Spindle, 2 Range Gear Box, 30 Station Side Mount Automatic Tool Changer, 1000 PSI Thru the Spindle Coolant System, Metal Way Covers, Work Light, Chip Auger, Coolant System.
|
Specifications |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Haas High Speed |
| # of Axis | 4 |
| Table Size | 120" x 28" |
| Table Load Capacity | 4000 LBS |
| X-Axis (Longitudinal Travel) | 120" |
| Y-Axis (Cross Travel) | 40" |
| Z-Axis (Vertical Travel) | 30" |
| A-Axis (Pallet Rotation Travel) | Full Contouring , 360 Degree, 360,000 Position |
| Max Clearance Tabletop to Spindle Nose | 35" |
| Feed Rates, All Axes | 0 - 500 IPM |
| Rapid Traverse Rate, All Axes | 600 IPM |
| Spindle Horsepower | 40 HP |
| Max Spindle Speeds | 0 - 7500 RPM |
| Spindle Taper | #50 CAT |
| Coolant Thru Spindle | yes |
| Automatic Tool Changer Capacity (ATC) | 30 |
| Automatic Tool Changer Style | Side Mount |
| Electrics | 230/3/60 |
| Approximate Machine Dimensions | 288" x 101" |
| Approximate Machine Height | 128" |
| Approximate Machine Weight | 39,000 LBS |
| CONDITION: This Machine Appears to be in Excellent Condition ! |
