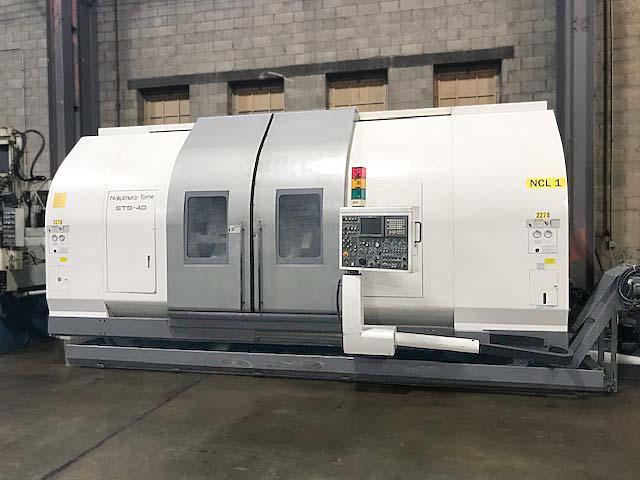

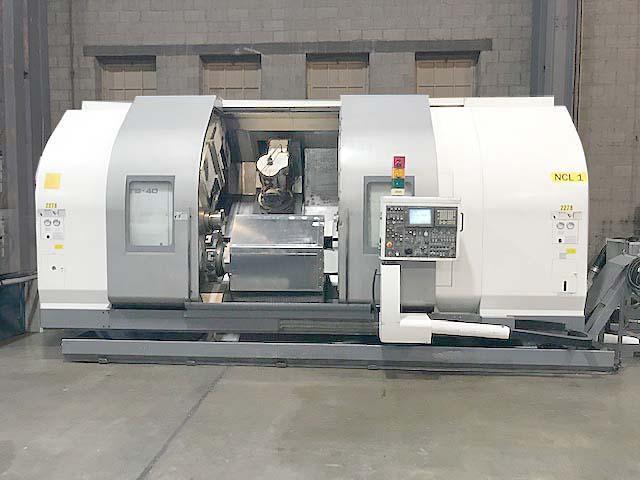

NAKAMURA STS-40 9-AXIS CNC TURNING/MILL CENTER

Stock #: K15968

Brand: NAKAMURA
Model: STS-40
Type: Lathes, CNC (3-Axis or More)
Condition: Excellent
Year: 2008

Equipped With:



Fanuc 18iTB CNC Control, Upper Universal Head with Milling and Turning Capacity, (2) 10" 3-Jaw SMW Chucks, 40 Station Automatic Tool Changer, Lower 12 Position Turret with Live Tooling, Y-Axis on Upper Universal Head, Full Contouring B-Axis Universal Head Swivel, (2) 30 hp Opposed Main Spindles with C-Axis, Probe Ready, Chip Conveyor and Coolant System.  Note: Machine could easily handle 12" Chucks.

Specifications:
CNC Control yes
Type of CNC Control Fanuc 18iTB CNC Control
Max Swing Over Slant Bed 24"
Max Turning Capacity 22.44"
Max Turning Capacity Over Cross Slide 18.5"
Max Distance Between Spindles 74"
Chuck Size (2) 10"
Max Turning Length 60"
X1-Axis (Cross Travel of Universal Head) 24"
Z1-Axis (Longitudinal Travel of Universal Head) 63"
Y-Axis (Travel of Universal Head) (Y1-Axis) (+3.94 -3.55) 7.49"
B-Axis (Rotation of Universal Head) (+100 to -100) 200°
W-Axis (Sub-Spindle Slide) 63.2"
X2-Axis (Cross Travel of Lower Turret) 10.82"
Z2-Axis (Longitudinal Travel of Lower Turret) 63"
C1-Axis .001°
C2-Axis .001°
Main Spindle Bore 2.8"
Main Spindle Nose A1-8
Main Spindle Speed Range 20-3500 RPM
Main Spindle Horsepower 30 HP
Sub-Spindle Speed Range 20-3500 RPM
Sub-Spindle Horsepower 30 HP
B-Axis Milling Head Speed Range 50-6000 RPM
B-Axis Milling Head Horsepower 19.5 HP
Automatic Tool Changer Capacity 40
Live Tooling Speed Range 90-6000 RPM
Live Tooling Horsepower 7.5 HP
Universal Head Spindle Taper KM63
Lower Turret Positions 12
Approximate Machine Dimensions 266" x 137"
Approximate Machine Height 126"
Approximate Machine Weight 52,600 LBS
CONDITION: Machine Appears to be in Excellent Condition !

NAKAMURA STS-40 9-AXIS CNC TURNING/MILL CENTER

NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.
NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.
NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.
NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.
NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.
NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.
NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.
NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.
  • NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.
  • NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.
  • NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.
  • NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.
  • NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.
  • NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.
  • NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.
  • NAKAMURA STS-40 CNC TWIN SPINDLE UNIVERSAL B-Axis MILL TURN, Fanuc 18i-TB CNC, 24" Swing Over the Bed, Twin 30 hp Spindles with 60" Between Spindles, Universal B-Axis Milling Head, Y-Axis, 40 Station Tool Changer, Lower Turret with Live Tooling, New 2008.

Machine Videos

https://youtu.be/khhhXwEhTmg
