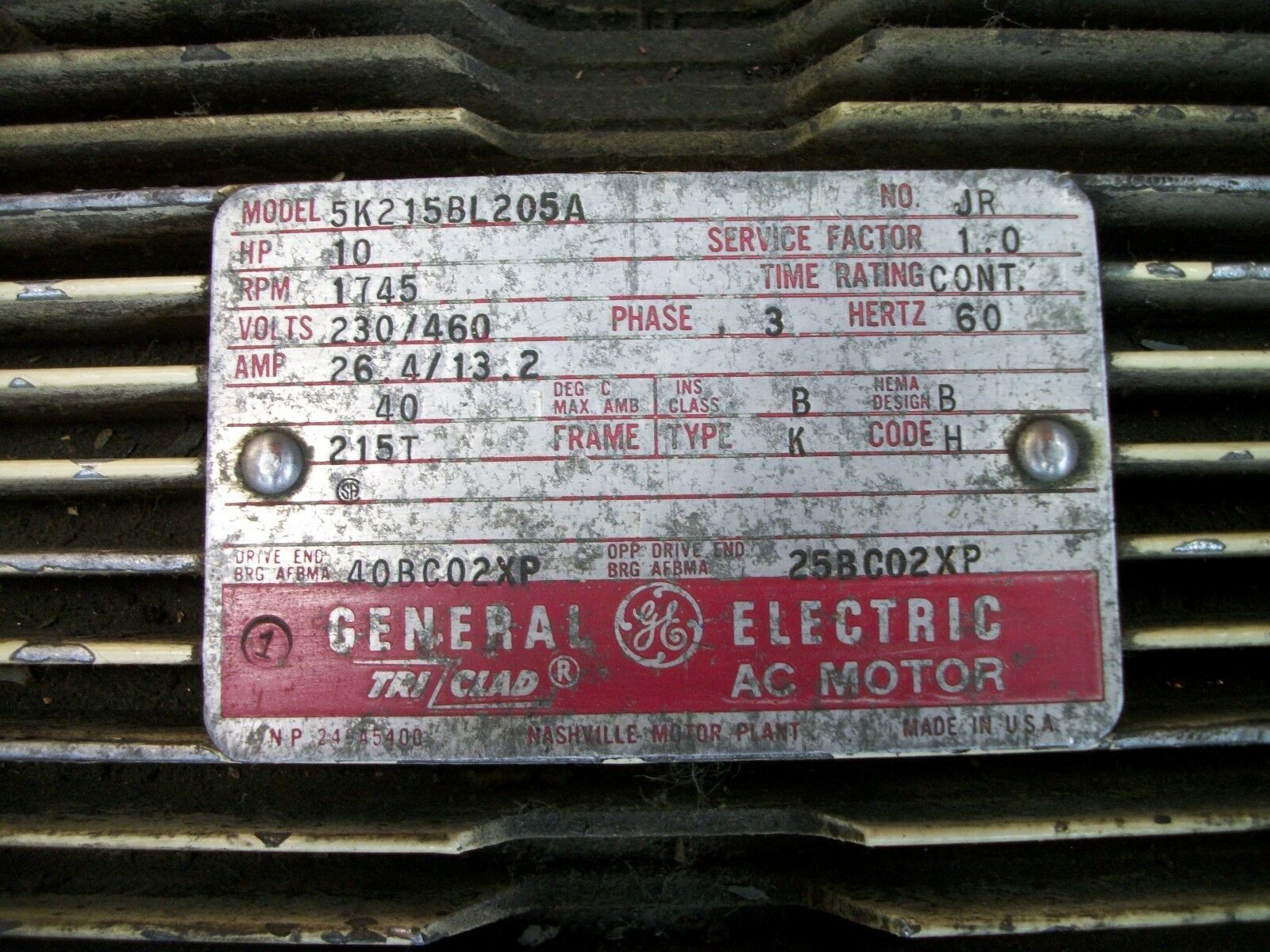

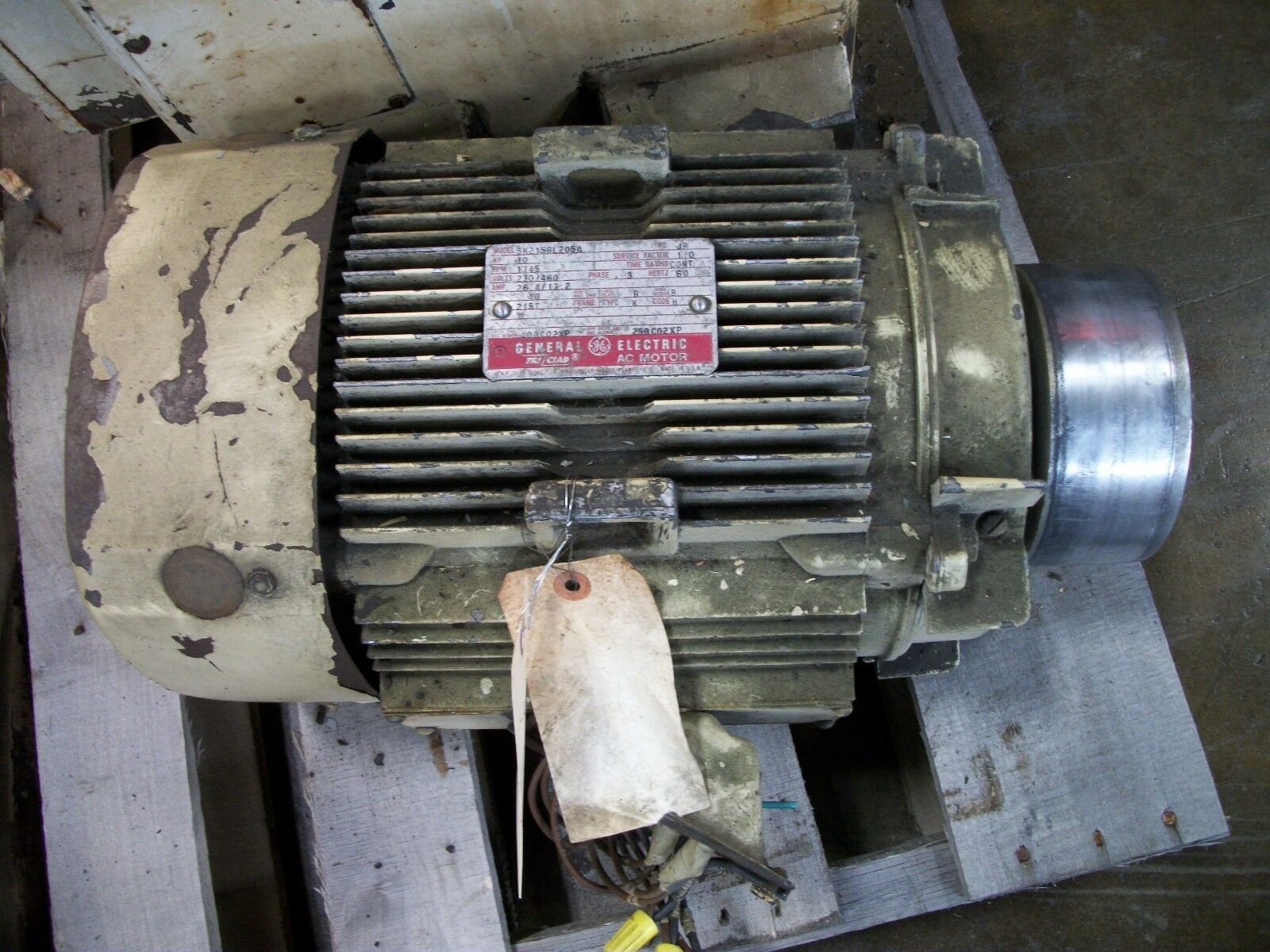

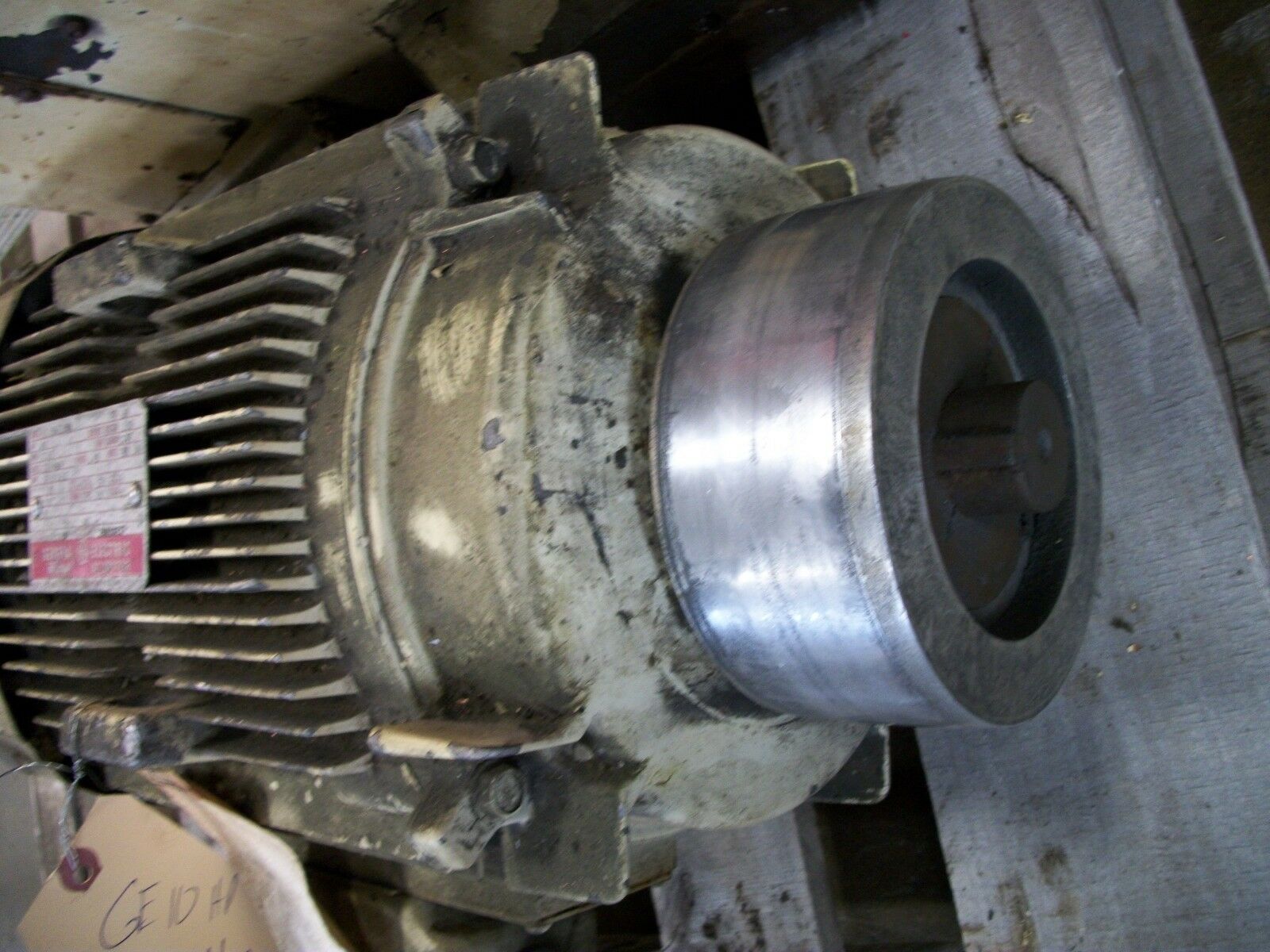

10 HP GE AC MOTOR 5K215BL 205A

Stock #: K14823

Brand: GENERAL ELECTRIC
Model: 5K215BL 205A
Type: Motors, A.C.
Condition: Used
Year: Not Specified

Equipped With:



Specifications:

Motor Horsepower 10 HP
Actual Rated Input Voltage 230/460 V
Full Load Amps 26.4 / 13.2 A
Base Speed 1,745 RPM
Frame 215T
AC Frequency Rating 60 Hz
Motor Phase 3 Phase
Service Factor 1.0
NEMA KVA Code H
NEMA Design Letter B (General Purpose)
Insulation Class B (Max 266°F)
Ambient and Time Rating 40°C AMB-CONT
Drive End (DE) 40BC02XP
Opposite Drive End (ODE) 25BC02XP
Current Type AC
