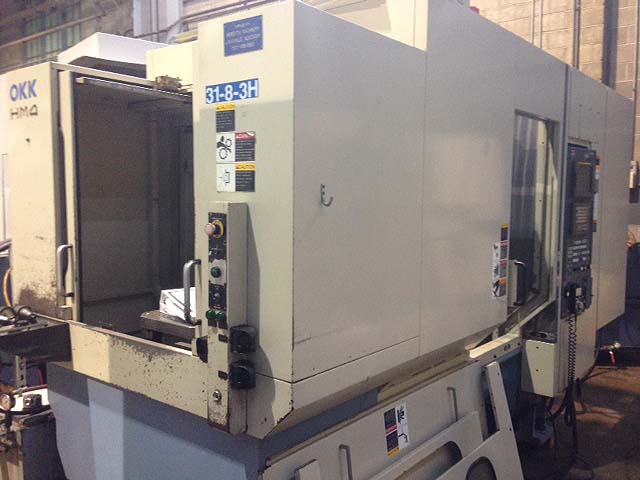

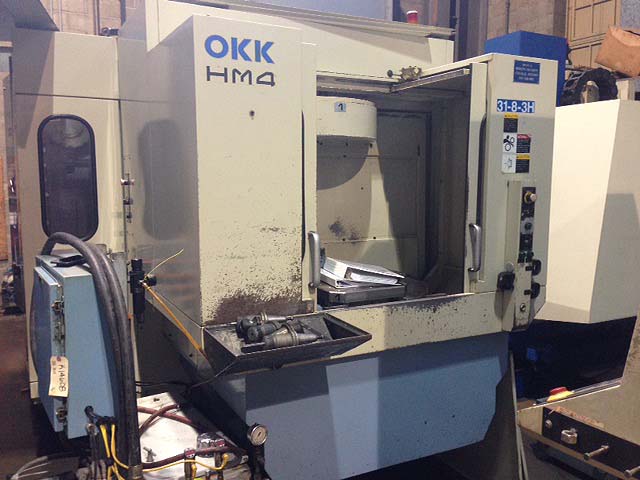

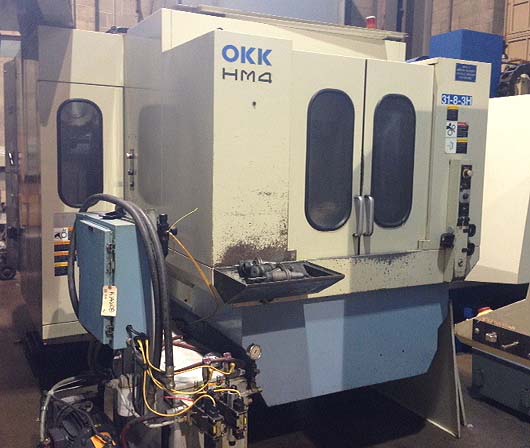

Stock #: K14608
Brand: OKK
Model: HM-4
Type: Machining Centers, Horizontal
Condition: Excellent
Year: 2002

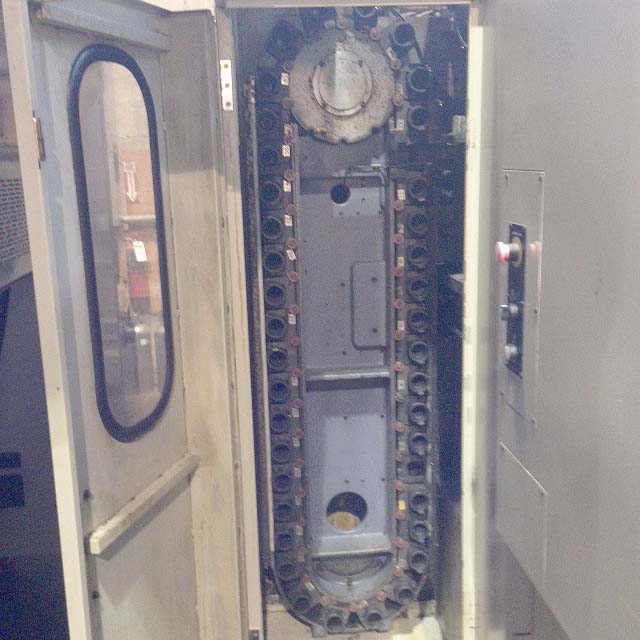

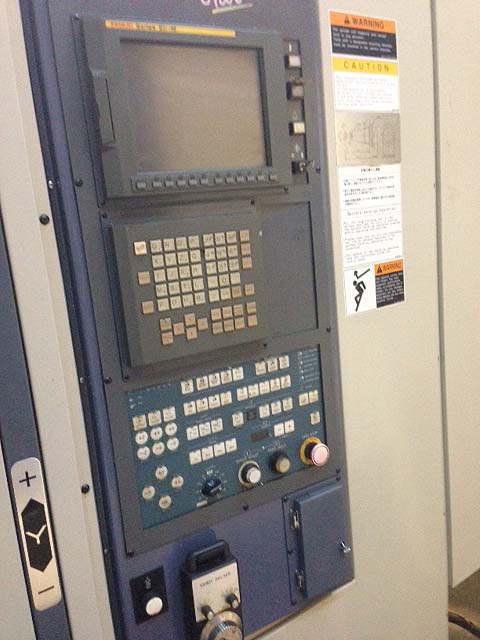

Fanuc 21iM CNC Control w/ 14" Color CRT, (2) 15.7" x 15.7" Pallets with 1° Indexing Pallet Rotation, 40-Position Automatic Tool Changer, RS-232 Port, Full Coolant Enclosure, Automatic Hydraulic Part Clamping System, Chip Conveyor and High Pressure Thru Spindle Coolant System.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Fanuc 21iM CNC Control |
| # Axis | 3 |
| # Pallets | 2 |

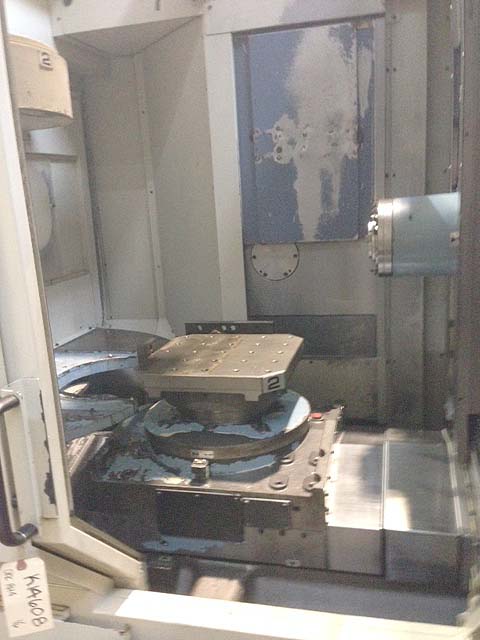

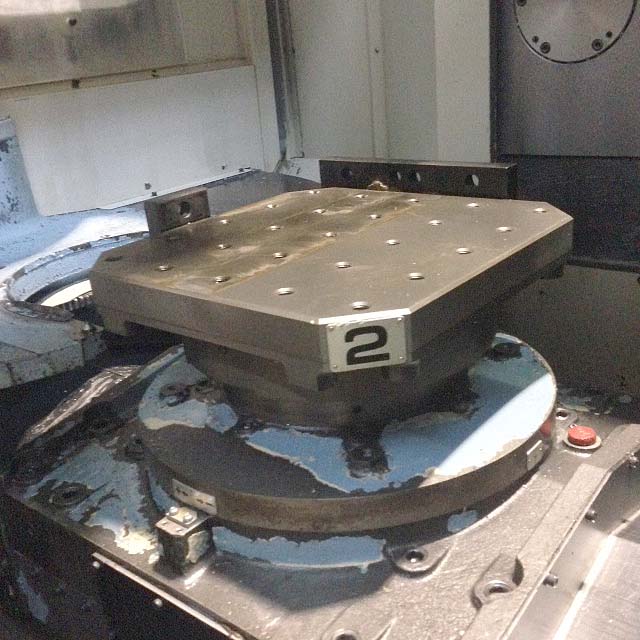

| Pallet Dimensions | 15.7" x 15.7" |
| Number of Index Positions | 360 |
| Max Pallet Load | 3,000 LBS |
| X-Axis (Longitudinal Table Travel) | 22" |
| Y-Axis (Vertical Travel) | 20" |
| Z-Axis (Spindle Travel) | 22" |
| Feed Rate, All Axes | .04 - 1,575 IPM |
| Rapid Traverse Rate, All Axes | 1,575 IPM |

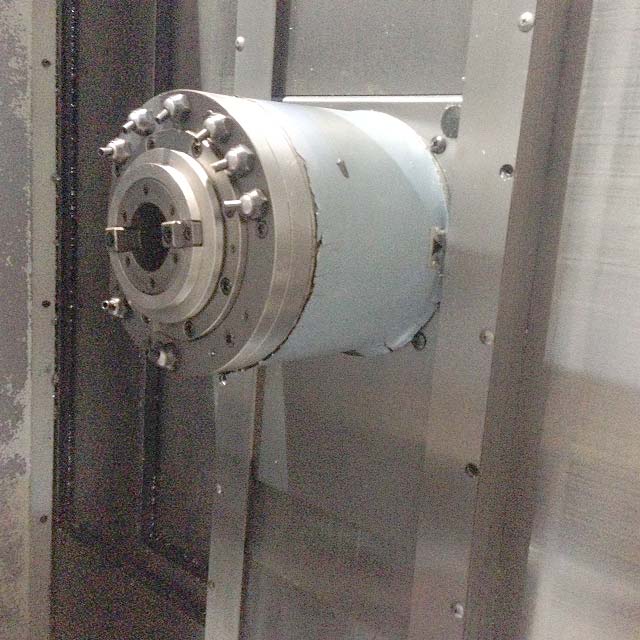

| Spindle Horsepower | 30 HP |
| Spindle Taper | #40 CAT |
| Spindle Speed Range | 30 - 10,000 RPM |
| Coolant Through Spindle | yes |
| Automatic Tool Changer Capacity (ATC) | 40 |
| Electrics | 220/3/60 |
| Approximate Machine Dimensions | 140" x 97" |
| Approximate Machine Height | 113" |
| Approximate Machine Weight | 18,000 LBS |
CONDITION: Machine Appears to be in Excellent Condition!
