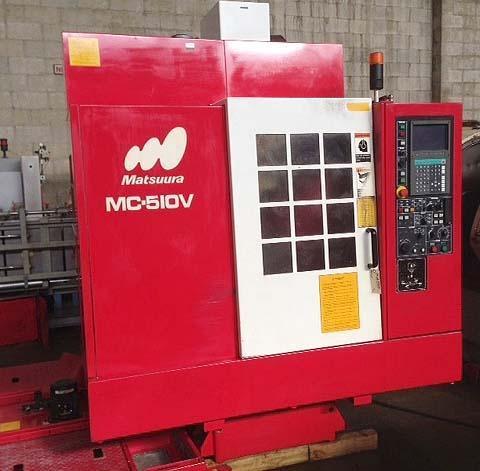

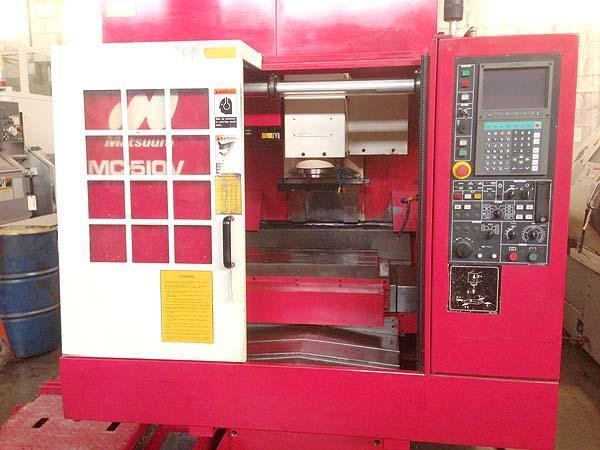

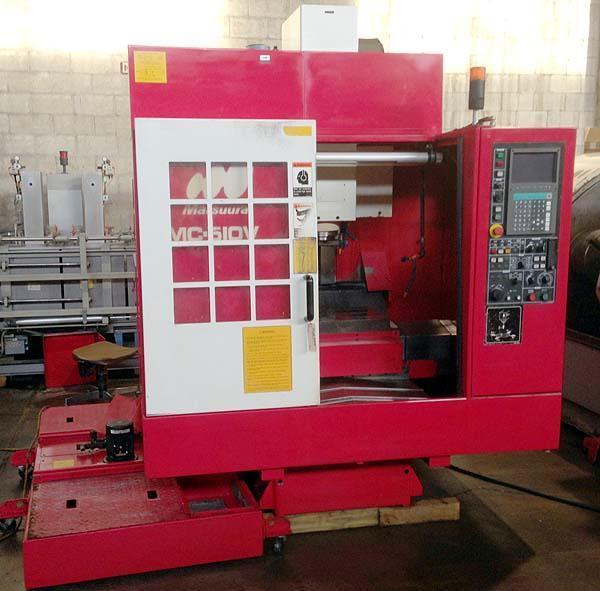

MATSUURA MC-510VG CNC VERTICAL MACHINING CENTER

Stock #: K14535

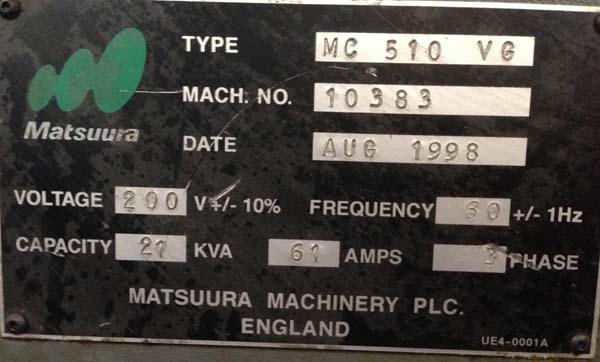

Brand: MATSUURA
Model: MC-510-VG
Type: Machining Centers, Vertical
Condition: Excellent
Year: 1998

Equipped With:

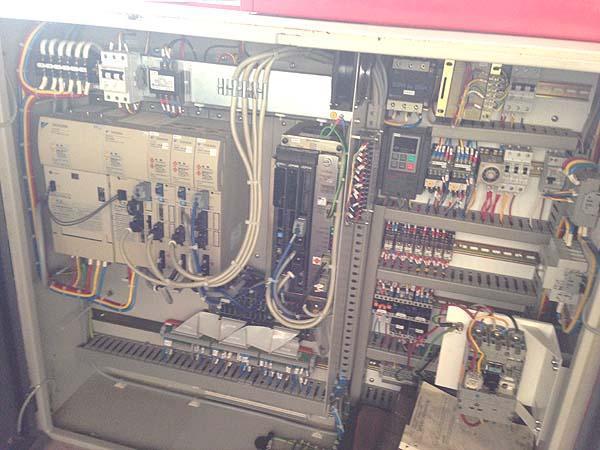

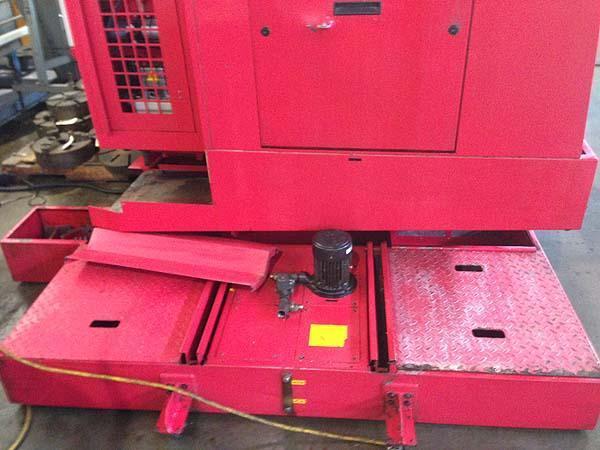

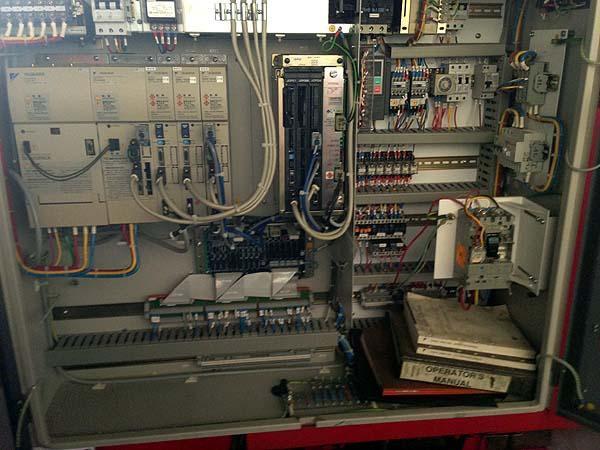

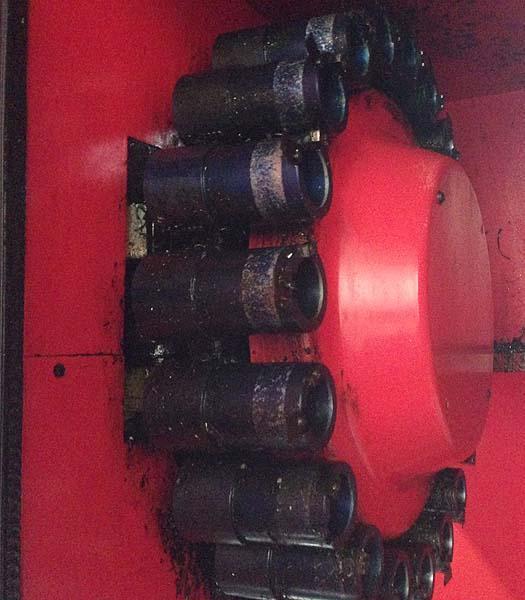

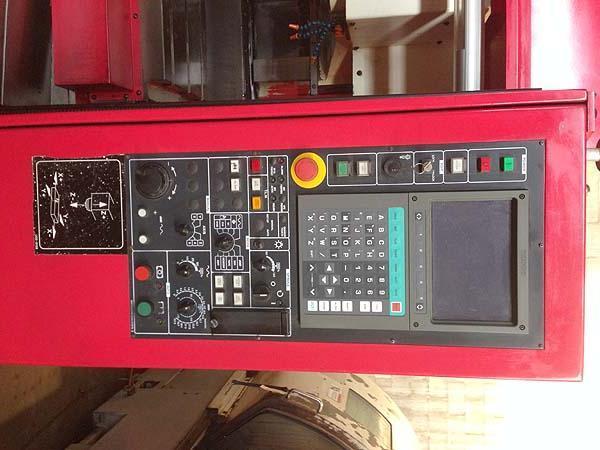

Yasnac J300B CNC Control with High Speed Processor,Spindle Load Meter,  RS-232 Port, Rigid/Solid Tapping, AC Spindle & Axis Drives, Canned Cycles, Extremely Fast 30 Station Automatic Tool Changer (1 Second Tool to Tool),  Programmable Offsets, MPG, Full Coolant Enclosure, Chip Pan, Coolant System.

SPECIFICATIONS:

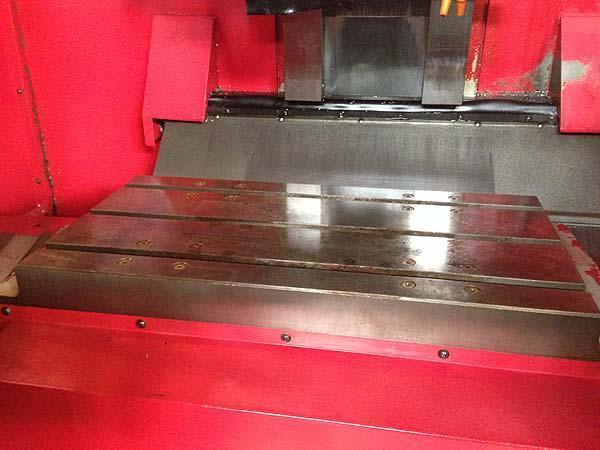

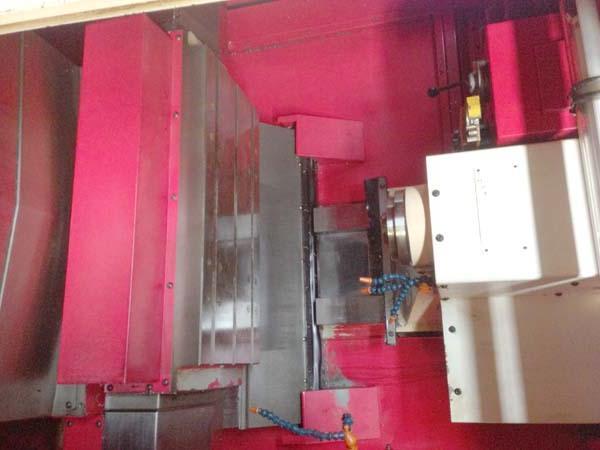

Table Working Surface................................. 30" x 15"
Table Load Capacity................................... 880 LBS
Longitudinal Travel (X-Axis).......................... 20.08"
Cross Travel (Y-Axis)................................. 14.1"
Vertical Travel (Z-Axis).............................. 18"
Feed Rates (X & Y-Axis)............................... .1 - 400 IPM
Feed Rates (Z-Axis)................................... .1 - 400 IPM
Rapid Traverse Rate (X & Y-Axis)...................... 944 IPM
Rapid Traverse Rate (Z-Axis).......................... 708 IPM
Tool Storage Capacity................................. 30
Spindle Horsepower.................................... 15 HP
Spindle Speed Range................................... 60-8000 RPM
Spindle Taper......................................... #40 BT
Electrics............................................. 240/3/60
Approximate Machine Dimensions........................ 105" x 100"
Approximate Machine Height............................ 109"
Approximate Machine Weight............................ 10,000 LBS


CONDITION: Machine Appears to be in Excellent Condition !
