Stock #: K14698
Brand: OKUMA
Model: MILLAC 1052V
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2011

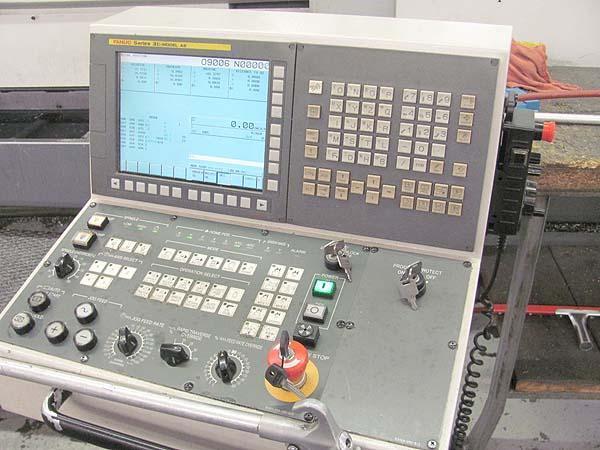

CNC Control……………. Fanuc 31i CNC<br>
# Axis……………… 3<br>
Table-L................................. 86.6"<br>
Table-W................................. 41.34"<br>
Table Load Capacity.............................. 11,000 LBS <br>
X Travel (Longitudinal)............................... 80.71"<br>
Y Travel (Cross)...................................... 41.73"<br>
Z Travel (Vertical)................................... 31.5"<br>
Max Clearance Tabletop to Spindle Nose.................. 39.37"<br>
Feed Rates.......................................... 0.1 to 390 in/min.<br>
Rapid Traverse ....................................... 624 IPM<br>
Spindle Power.................................... 30 HP<br>
Spindle Speeds........................................ 30 – 6,000 RPM <br>
Spindle Taper......................................... CAT 50<br>
Coolant Through Spindle……………………….. Yes<br>
Tool Storage Capacity................................. 36<br>
Max Tool Weight....................................... 44 LBS<br>
Approximate Dimensions.............................. 265"x 145.7" x 138"<br>
Approximate Weight.................................... 52,800 LBS
Specifications: |
|---|
CONDITION: This Machine Appears to be in Excellent Condition !
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Brand
OKUMA
Model
MILLAC 1052V
Type
Machining Centers, Vertical
Stock #
K14698
Condition
Excellent
Year
2011
Equipped With |
|---|
|
CNC Control……………. Fanuc 31i CNC<br>
# Axis……………… 3<br>
Table-L................................. 86.6"<br>
Table-W................................. 41.34"<br>
Table Load Capacity.............................. 11,000 LBS <br>
X Travel (Longitudinal)............................... 80.71"<br>
Y Travel (Cross)...................................... 41.73"<br>
Z Travel (Vertical)................................... 31.5"<br>
Max Clearance Tabletop to Spindle Nose.................. 39.37"<br>
Feed Rates.......................................... 0.1 to 390 in/min.<br>
Rapid Traverse ....................................... 624 IPM<br>
Spindle Power.................................... 30 HP<br>
Spindle Speeds........................................ 30 – 6,000 RPM <br>
Spindle Taper......................................... CAT 50<br>
Coolant Through Spindle……………………….. Yes<br>
Tool Storage Capacity................................. 36<br>
Max Tool Weight....................................... 44 LBS<br>
Approximate Dimensions.............................. 265"x 145.7" x 138"<br>
Approximate Weight.................................... 52,800 LBS |
Specifications |
|---|
| CONDITION: This Machine Appears to be in Excellent Condition ! |
