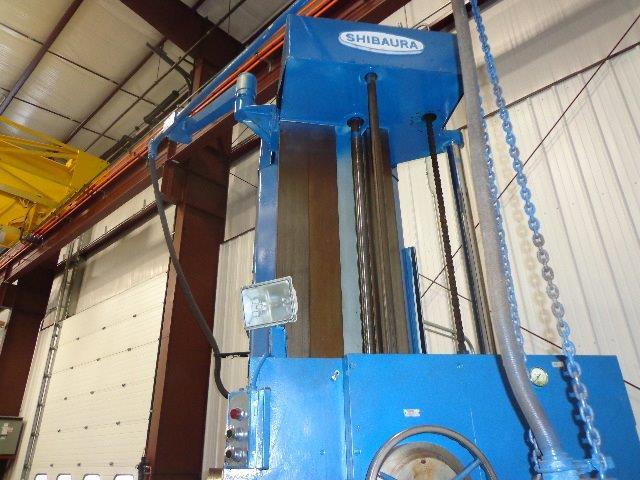

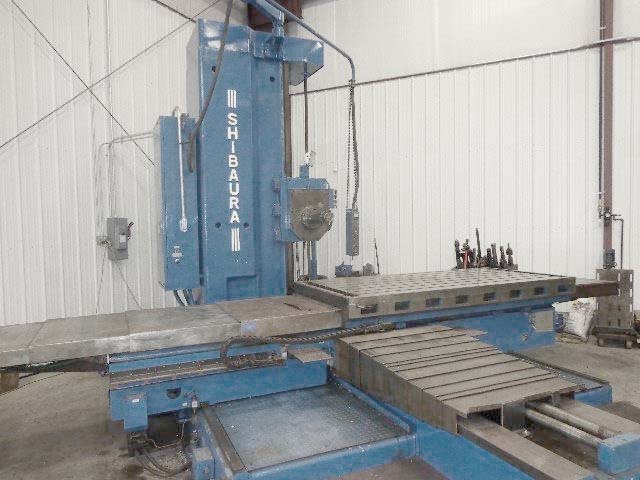

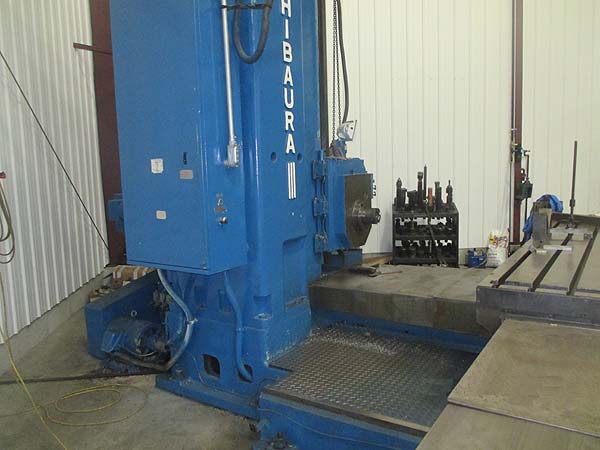

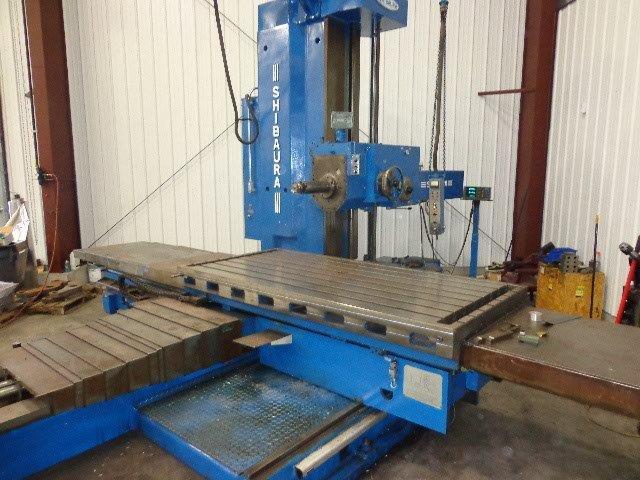

5" SHIBAURA HORIZONTAL BORING MILL

Stock #: K14727

Brand: SHIBAURA
Model: BST-13PW
Type: Boring Mills, Horizontal, Table Type
Condition: Very Good
Year: 1973

Equipped With:

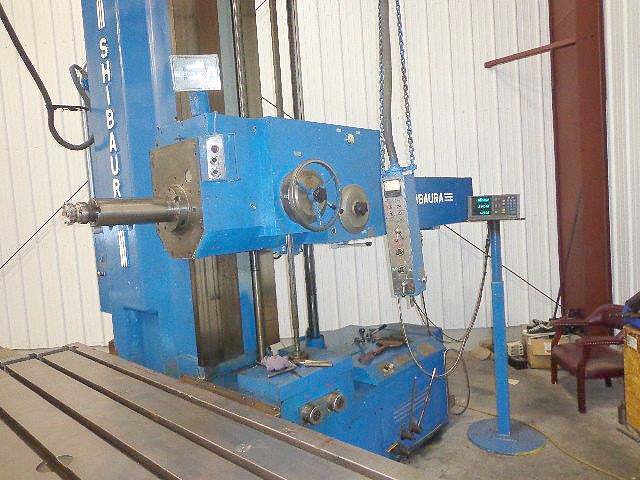

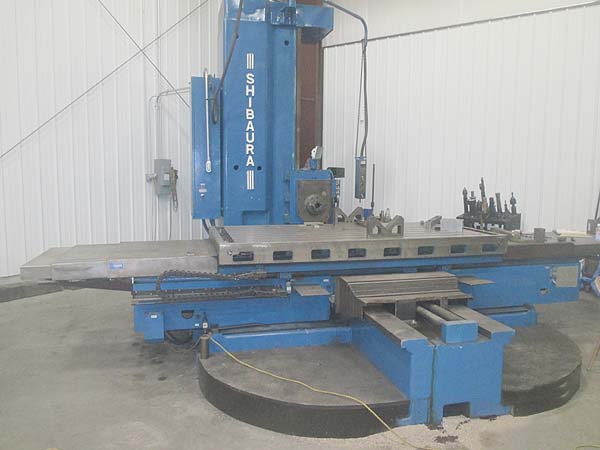

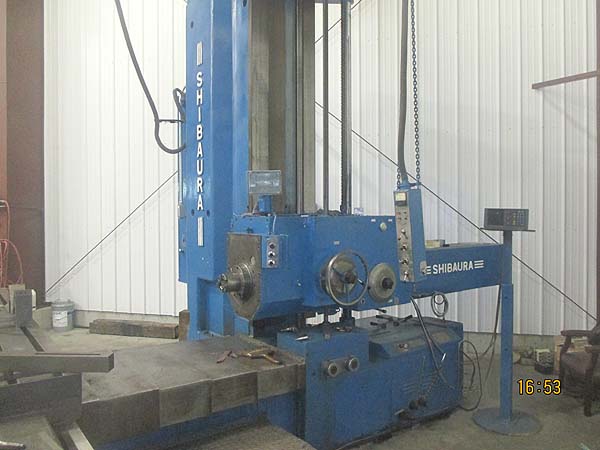

3-Axis Digital Readouts, Pendant Control, X-Axis Ballscrew, Hardways, Wide Base with Built-in Outrigger Runway Saddle Supports Each Side of Table, Sliding Metal Way Covers, Power Draw Bar, Tailstock for Line Boring. Table Ways and Surface Reground in 2015. New Ware Surface Installed. New X-Axis Ballscrew Installed.

SPECIFICATIONS:
Spindle Diameter...................................... 5"

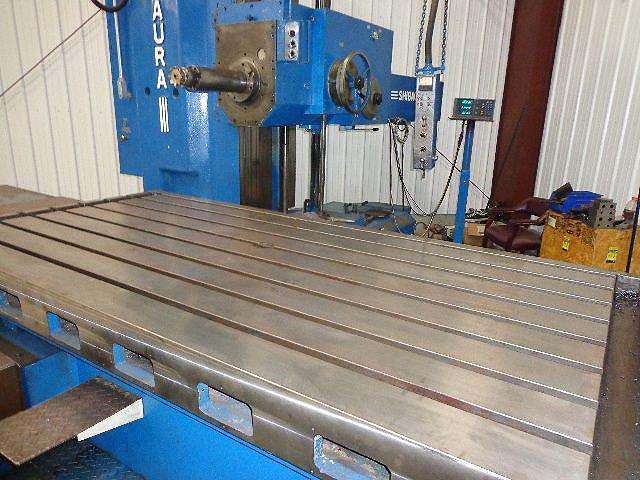

Table Size............................................ 48" x 98"
Table Load Capacity................................... 30,000 LBS
Table Cross Travel (X-Axis)........................... 98"
Spindle-Head Vertical Travel (Y-Axis)................. 60"
Spindle (Quill) Travel (Z-Axis)....................... 35"
Saddle Longitudinal Travel (W-Axis)................... 50"
Spindle Taper......................................... #50
Spindle Speeds Range.................................. 9 to 1200 RPM
Spindle Feeds  Range.................................. .05 to 60 IPM
Milling Feeds  Range.................................. .5 to 120 IPM
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 220" x 144"
Approximate Machine Height............................ 143"
Approximate Machine Weight............................ 40,000 LBS

CONDITION:  Under Power and Ready for Demo.
Appears to be in Very Good Condition !
