Stock #: K15236
Brand: MAZAK

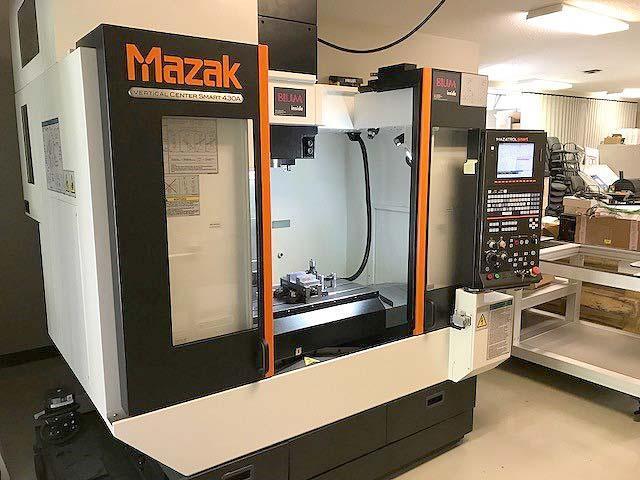

Model: SMART 430A
Type: Machining Centers, Vertical
Condition: Like New
Year: 2012
Mazak Smart CNC Control, EIA, Spiral Milling, RS 232 Port, 30 Position Automatic Tool Changer, Full Enclosure, Scaling, Synchronized Tapping, 15HP 12000 RPM Spindle, Chip & Coolant System.
Specifications: |
|
---|---|
CNC Control | yes |

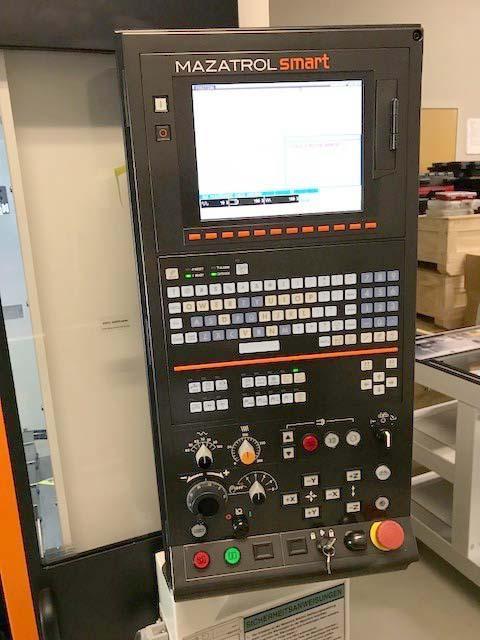

Type of CNC Control | Mazak Smart CNC Control |
# Axis | 3 |

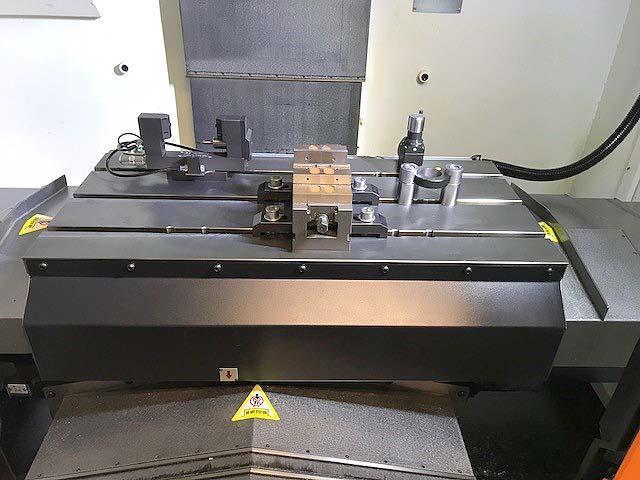

Table Working Surface | 35.43" x 16.93" |
Table Load Capacity | 1,102 LBS |
X-Axis (Longitudinal Travel) | 22.05" |
Y-Axis (Cross Travel) | 16.93" |
Z-Axis (Vertical Travel) | 20.08" |
Max/Min Clearance Table Top to Spindle Nose | 25.98" / 5.91" |
Rapid Traverse Rate, All Axes | 1,653 IPM |
Spindle Horsepower | 15 HP |
Spindle Speed Range | 40 - 12,000 RPM |

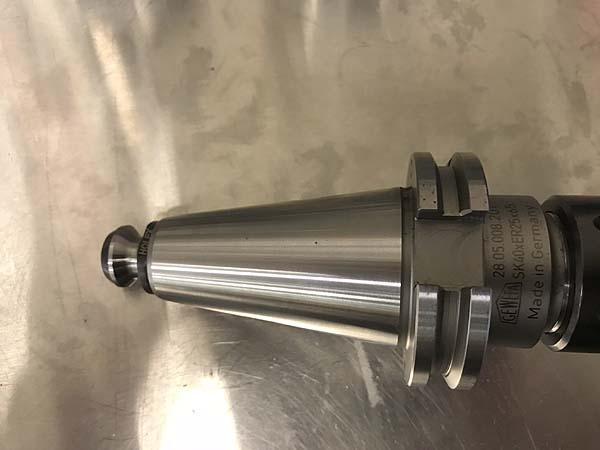

Spindle Taper | # 40 SK |
Automatic Tool Changer Capacity (ATC) | 30 |
Approximate Machine Dimensions | 83" x 108" |
Approximate Machine Height | 109" |
Approximate Machine Weight | 10,200 LBS |
CONDITION: This Machine Appears to be in Like New Condition !
