Stock #: K15258
Brand: OKUMA & HOWA
Model: MILLAC 853PF-5X
Type: Machining Centers, Vertical, (5-Axis or More)
Condition: Excellent
Year: 2011

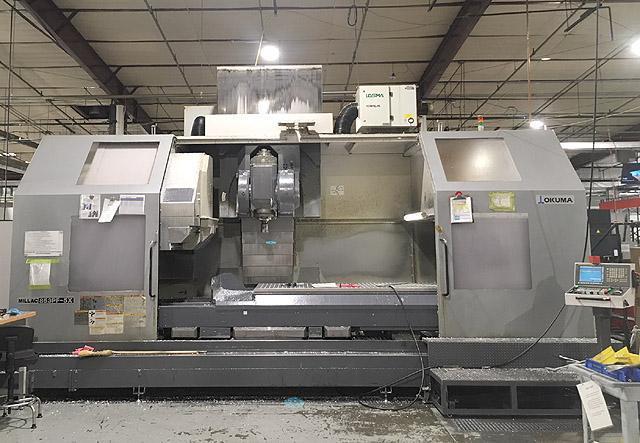

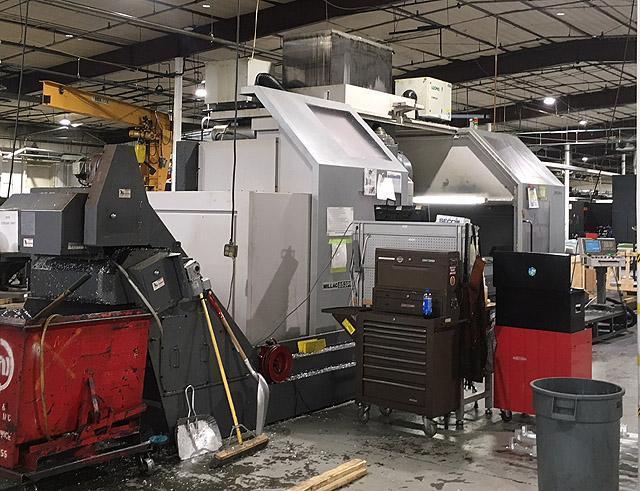

Fanuc 31i CNC Control, Full 5-Axis Contouring, Heavy Duty 75 HP 50 Taper Spindle. Full Enclosure, 30 Station Automatic Tool Changer, Coolant System and Chip Conveyor.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Fanuc 31i CNC Control |
| Table Size | 125.99" x 33.47" |
| Table Load Capacity | 6,600 LBS |
| # Axis | 5 |
| X-Axis (Longitudinal Travel) | 120.08" |
| Y-Axis (Cross Travel) | 33.46" |
| Z-Axis (Vertical Travel) | 27.56" |

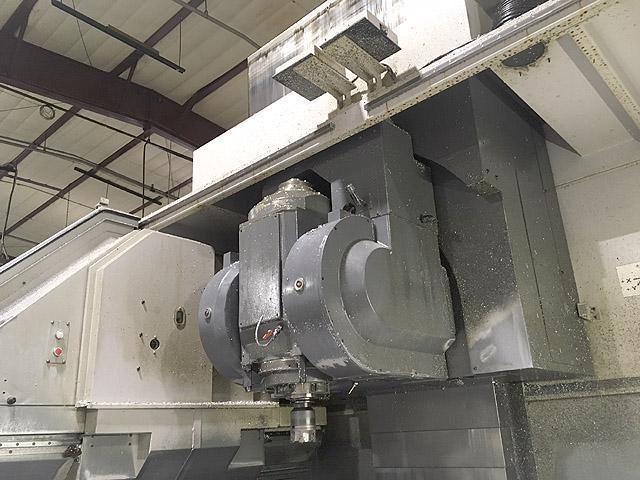

| A-Axis (Spindle Head Tilt) | +35° |
| B-Axis (Spindle Head Swivel) | +35° |
| Max/Min Clearance Table Top to Spindle Nose | 33.46' / 5.91" |
| Spindle Center to Column Sideway | 36.61" |
| Floor to Table Top | 42.52" |
| Feed Rates (X & Y Axis) | 1181 IPM |
| Feed Rate (Z Axis) | 945 IPM |
| Feed Rate (A & B Axis) | 3,600°/min |
| Rapid Traverse Rate (X, Y, & Z Axis) | 0.039 – 945 IPM |
| Rapid Traverse Rate (A & B Axis) | 1 - 2,400°/min |
| Spindle Horsepower | 75 HP |
| Spindle Speed Range | 60 - 12,000 RPM |
| Spindle Taper | #50 |
| Automatic Tool Changer Capacity (ATC) | 30 |
| Max Tool with Adjacent | 4.92" |
| Max Tool without Adjacent | 7.87" |
| Max Tool Length | 13.78" |
| Max Tool Weight | 44 LBS |
| Tool Change Time | 9/16 sec |
| Approximate Machine Dimensions | 339" x 179" |
| Approximate Machine Height | 130" |
| Approximate Machine Weight | 64,000 LBS |
CONDITION: This Machine Appears to be in Excellent Condition !
