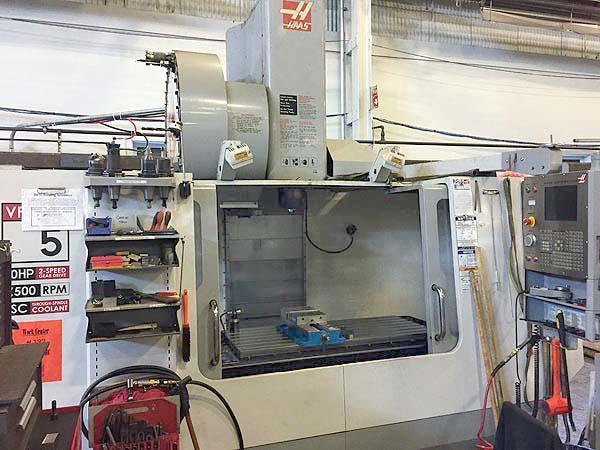

HAAS VF-5/50 CNC VERTICAL MACHINING CENTER

Stock #: K15221

Brand: HAAS
Model: VF-5/50
Type: Machining Centers, Vertical, (5-Axis or More)
Condition: Excellent
Year: 2006

Equipped With:


CNC Control……………. Haas 32-Bit CNC<br>
# Axis……………… 5<br>
Table-L............................... 52"<br>
Table-W............................... 23"<br>
Max Table Load Capacity................................. 4,000 LBS<br>
Longitudinal Travel (X-Axis)........................ 50"<br>
Cross Travel (Y-Axis)............................... 26"<br>
Vertical Travel (Z-Axis)............................ 25"<br>
Max Clearance Tabletop to Spindle Nose......... 32"<br>
Feed Rates, All Axes................................ 0 to 500 in/min.<br>
Rapid Traverse Rate, X-Axis......................... 710 IPM<br>
Rapid Traverse Rate, Y and Z Axes................... 600 IPM<br>
Spindle Power.................................. 30 HP<br>
Spindle Speeds Range................................ 0 – 7,500 RPM<br>
Spindle Taper....................................... No. 50 CAT<br>
Coolant Thru Spindle………. Yes <br>
Tool Storage Capacity............................... 30<br>
Approximate Machine Dimensions.................. 114" x 176" x 121"<br>
Approximate Machine Weight.......................... 18,600 LBS


CONDITION: This Machine Appears to be in Excellent Condition!
