Stock #: K14979
Brand: CINCINNATI MILACRON
Model: 425-186
Type: Millers, Production, Duplex
Condition: Used
Year: Not Specified

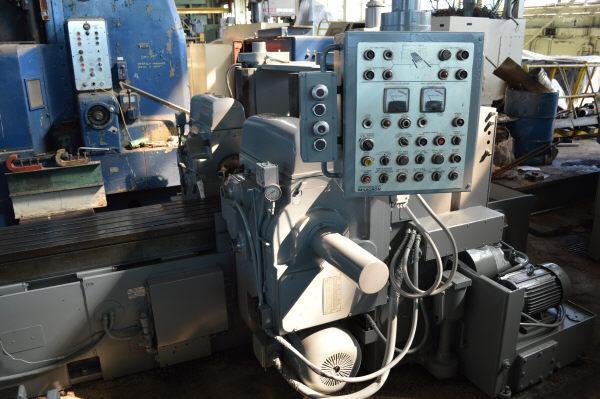

Automatic Quill Retraction, (2) 25 HP Individually Motorized Spindles, Pendant Controls - Spindle Load Meters, Flame Hardened Bed Ways.
Specifications: |
|
|---|---|
| Table Size | 18" x 104" |
| Table Working Surface | 18" x 96" |
| X-Axis (Longitudinal Table Travel) | 72" |
| Y-Axis (Vertical Travel of Spindle Carrier) | 17.25" |
| Z-Axis (Quill Cross Adjustment) | 6" |
| Max Vertical Height, Tabletop to Spindle Center | 22" |
| Min Vertical Height, Tabletop to Spindle Center | 4.75" |
| Max Distance, Table Center to Spindle Face | 11.5" |
| Min Distance, Table Center to Spindle Face | 5.5" |
| Quill Diameter | 8.5" |
| Longitudinal Table Feeds, Range | 1 to 150 IPM |
| Power Rapid Table Traverse | 300 IPM |
| Spindle Taper | #50 NSTD |
| (16) Spindle Speeds | 30 TO 1200 RPM |
| Spindle Power | 25 HP |
| Approximate Machine Dimensions | 15'4" x 10'5" |
| Approximate Machine Height | 8'2" |
| Approximate Machine Weight | 21,695 LBS |
