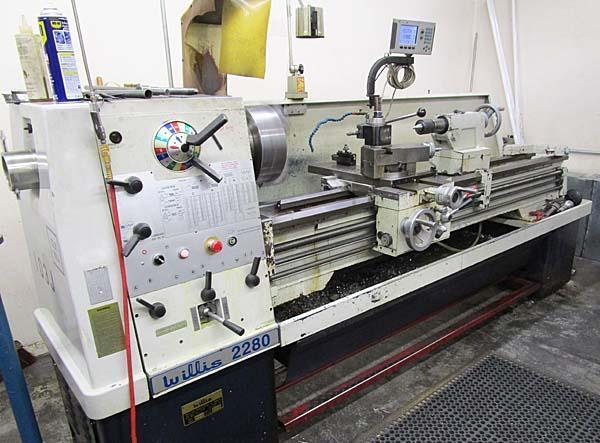

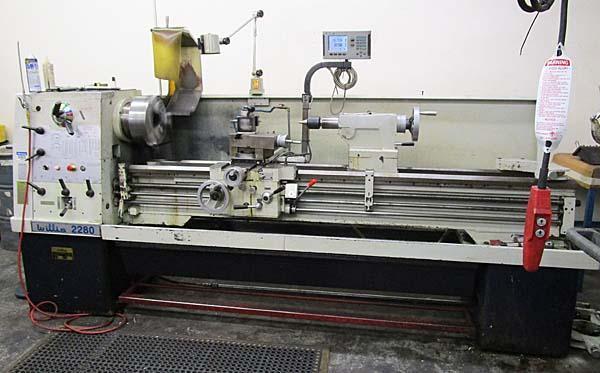

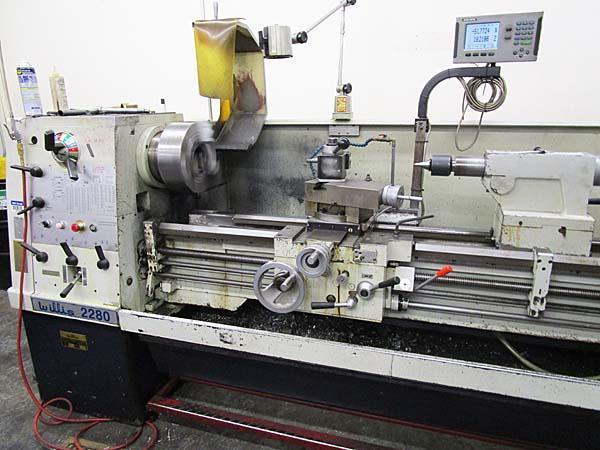

WILLIS 22" x 80" CLAUSING STYLE ENGINE LATHE

Stock #: K14946

Brand: WILLIS
Model: 2280
Type: Lathes, Engine
Condition: Excellent
Year: 2000

Equipped With:

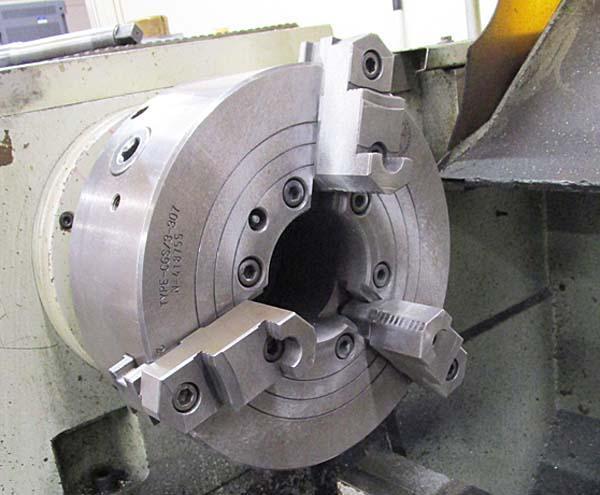

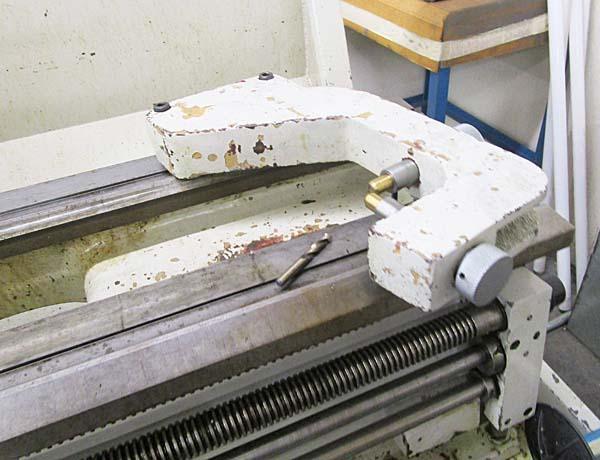

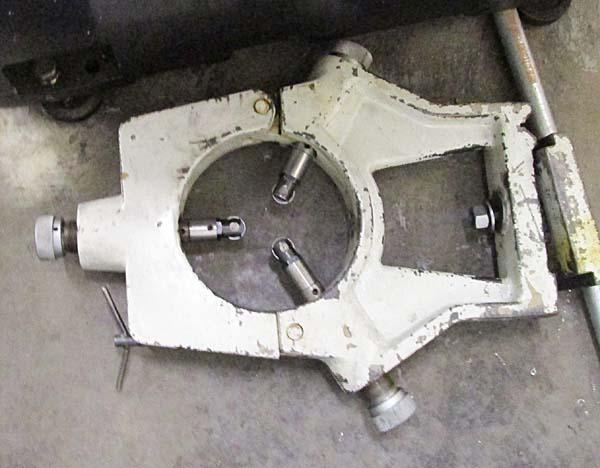

Acu-Rite 2-Axis Digital Readouts, 3-1/8" Spindle Bore (1) Steady Rest, (1) Follow Rest, 12" 3-Jaw Chuck, Rapid Traverse, Inch Metric Threading, Compound Cross Slide, Aloris Tool Post, Coolant System, Chip Pan.

SPECIFICATIONS:
Swing over the bed................................. 22"
Swing over the cross slide......................... 15-1/2"
Swing in the Gap................................... 32"
Distance between centers........................... 80"
Cross Slide Travel................................. 10-1/2"
Spindle Nose....................................... D1-8
Spindle Bore....................................... 3-1/8"
Taper in Tailstock................................. MT-5
Spindle Speed (16)................................. 22-1700 RPM
Feed Range......................................... .0015-.04 IPR
Metric Threads (39)................................ .04-14 mm
Inch Threads   (45)................................ 2-72 TPI
Main Motor......................................... 10 HP
Approximate Machine Dimensions..................... 40" x 140"
Approximate Machine Weight......................... 5500 lbs

CONDITION: Appears to be in Excellent Condition!!
