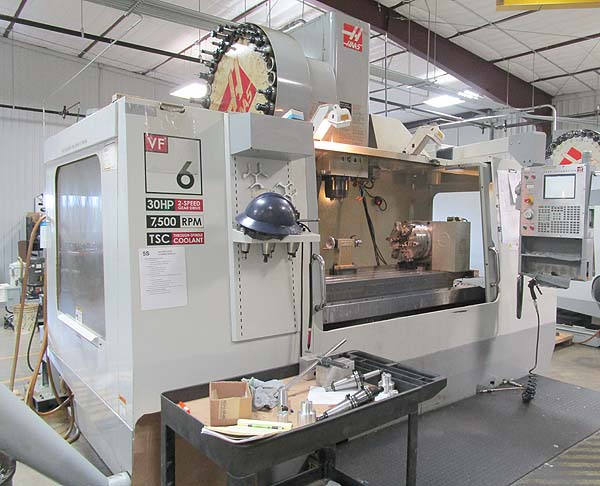

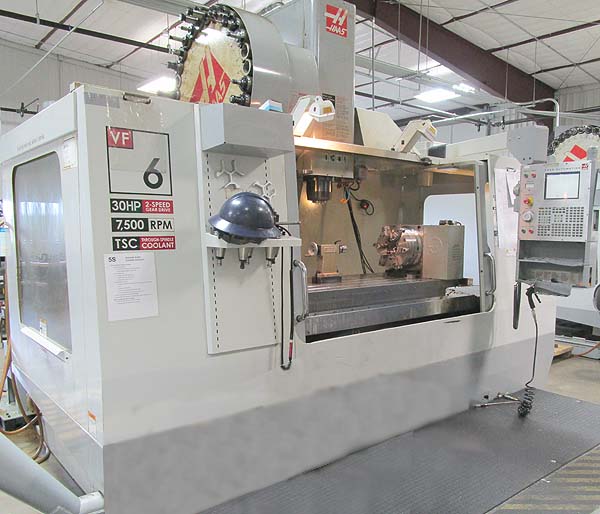

HAAS VF-6/50 CNC VERTICAL MACHINING CENTER

Stock #: K14935

Brand: HAAS
Model: VF-6/50
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2006

Equipped With:

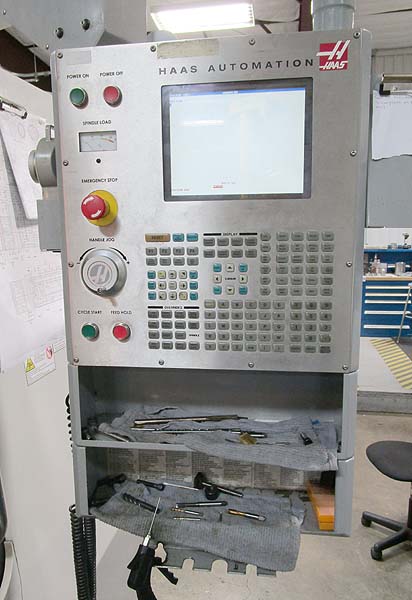

CNC Control……………. Haas CNC
# Axis……………… 4

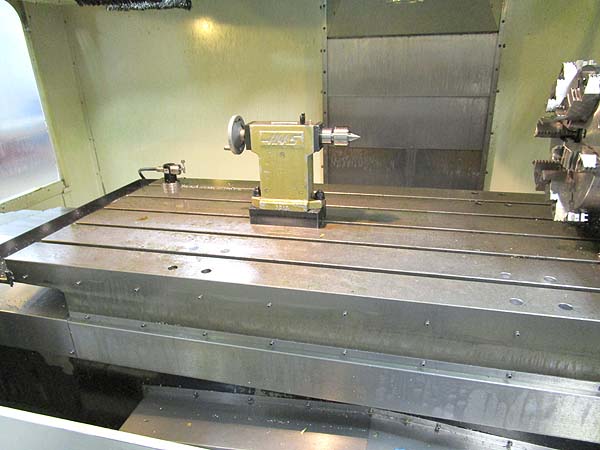

Table-L............................... 64"
Table-W............................... 28"
Max Table Load Capacity................................. 4,000 LBS
Longitudinal Travel (X-Axis)........................ 64"
Cross Travel (Y-Axis)............................... 32"
Vertical Travel (Z-Axis)............................ 30"
Max Clearance Tabletop to Spindle Nose......... 34"
Feed Rates, All Axes................................ 0 to 300 in/min.
Rapid Traverse Rate, X-Axis......................... 540 IPM
Rapid Traverse Rate, Y and Z Axes................... 600 IPM
Tool Storage Capacity............................... 30
Spindle Power.................................. 30 HP
Spindle Speeds Range................................ 0 – 7,500 RPM
Spindle Taper....................................... No. 50 CAT
Approximate Machine Dimensions.................. 123" x 156" x 128.5"
Approximate Machine Weight.......................... 23,000 LBS


CONDITION: This Machine Appears to be in Excellent Condition!
