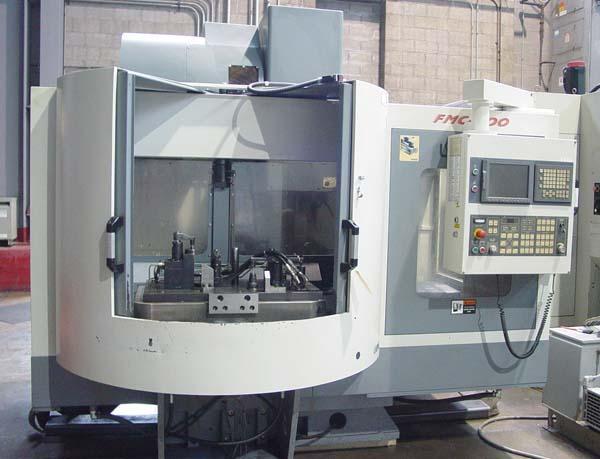

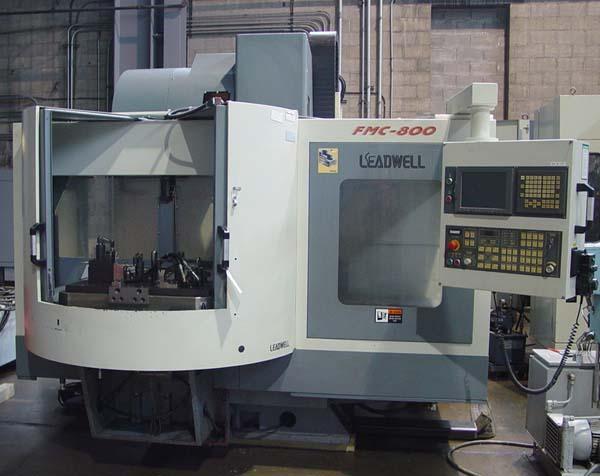

LEADWELL FMC-800 2-PALLET VERTICAL MACHINING CENTER

Stock #: K13783

Brand: LEADWELL
Model: FMC-800
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2004

Equipped With:


CNC Control……………. Fanuc 18i CNC<br>
# Axis……………… 3<br>
# Pallets…………….. 2<br>
Pallet-L....................................... 31.5" <br>
Pallet-W....................................... 18.1"<br>
Table Load Capacity on Rotating Pallet................ 660 LBS <br>
Min Clearance Tabletop to Spindle Nose..................... 5.3"<br>
Max Clearance Tabletop to Spindle Nose..................... 25.2"<br>
Longitudinal Travel (X-Axis).......................... 31.5"<br>
Cross Travel (Y-Axis)................................. 19.7"<br>
Vertical Travel (Z-Axis).............................. 19.9"<br>
Column Front to Spindle Center........................ 24"<br>
Rapid Traverse Rate X,Y, & Z Axes..................... 1575 IPM<br>
Tool Storage Capacity................................. 24<br>
Spindle Power.................................... 15 HP<br>
Spindle Speed Range................................... 50 - 10,000 RPM<br>
Spindle Taper......................................... CAT 40<br>
Approximate Machine Dimensions..................... 132" x 137" x 117"<br>
Approximate Machine Weight............................ 16,500 LBS


CONDITION: This Machine Appears to be in Excellent Condition !
