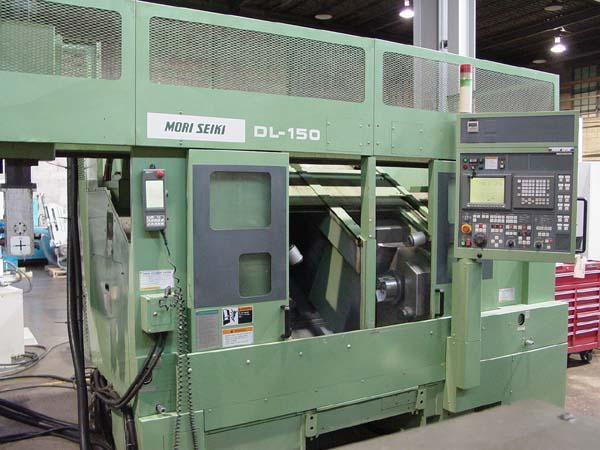

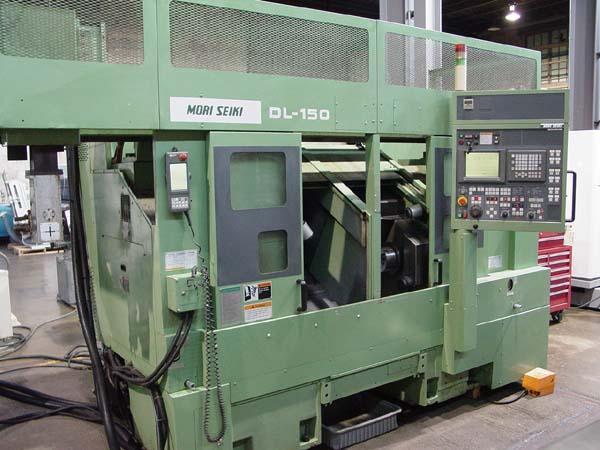

MORI SEIKI DL-150 DUAL SPINDLE, DUAL TURRET CNC TURNING CENTER

Stock #: K13658

Brand: MORI SEIKI
Model: DL-150
Type: Lathes, CNC (3-Axis or More)
Condition: Excellent
Year: 1997

Equipped With:

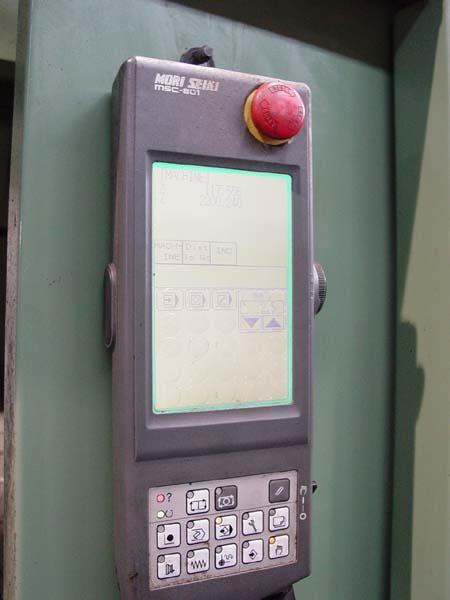

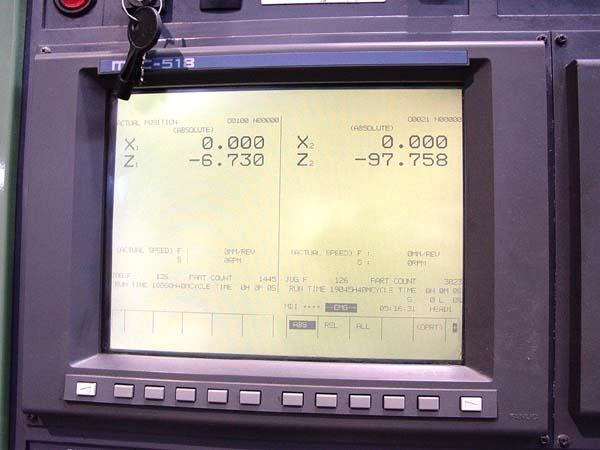

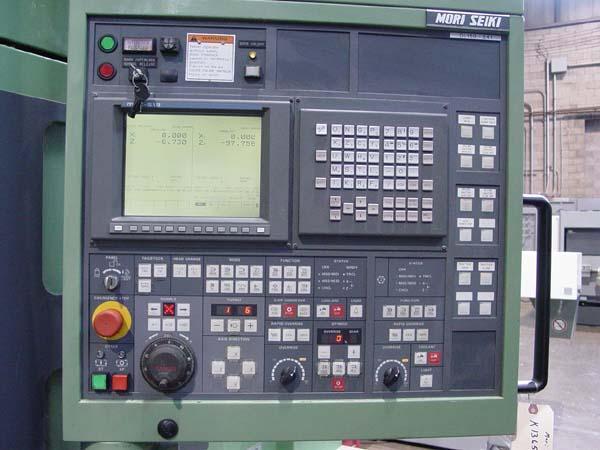

Mori MSC518 (Fanuc 16TB) CNC Control, (2) 10 HP Opposed Spindles, (2) 12 Position Turrets, (2) Kitagawa B-206 6" 3-Jaw Power Chucks, Mori Overhead Gantry Loader Model LG03c with MSC-801 Control, Chip Conveyor, Coolant System.

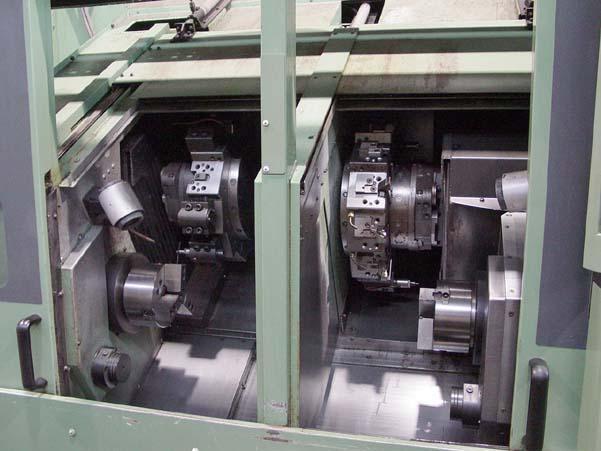

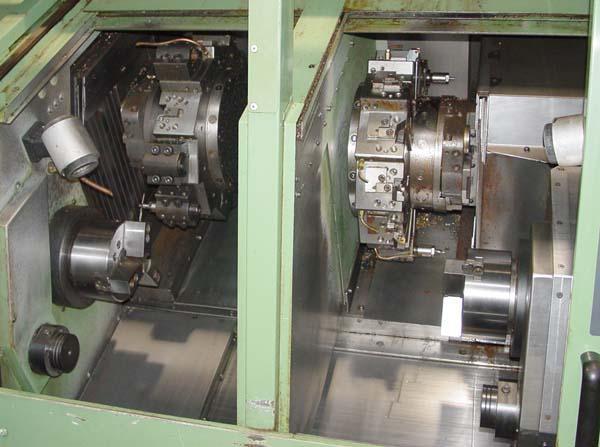

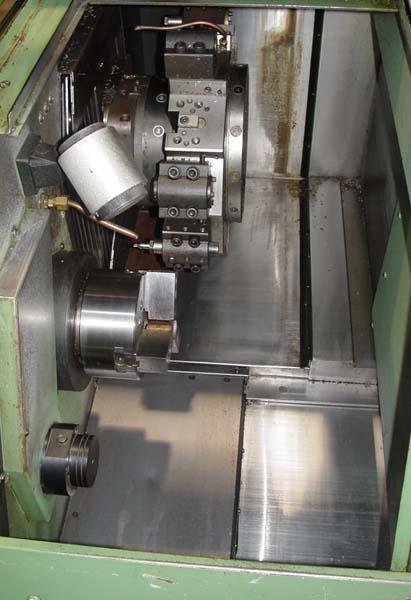

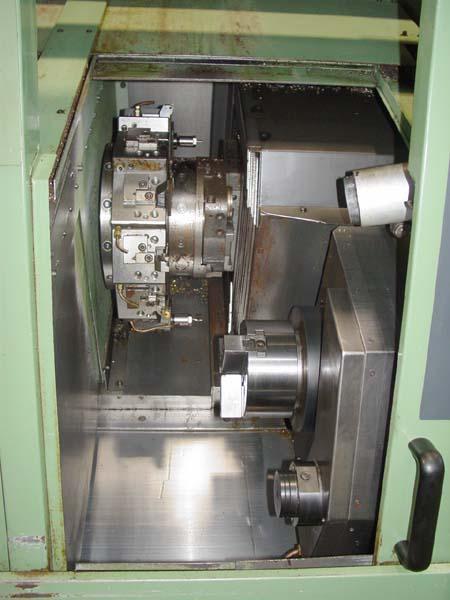

 NOTE:  The Mori Seiki DL Series Turning Center Features Two Inline Opposing Spindles and Two Tool Turrets, each Addressing its Own Spindle. This Machine is Designed for Completing First and Second Turning Operations in One Actual Loading.  A Workpiece May be Loaded to the First Spindle, Then Turned, Then Automatically and Internally Transferred to the Second Spindle for Second Operation Turning. Overhead Gantry Loader can Easily be turn on and off for Hand Loading Operation.

SPECIFICATIONS:
Max Swing Over Bed..................................... 11"
Maximum Turning Diameter (each Spindle)................ 7.8"
Maximum Turning Length (each Spindle).................. 7.8"
Standard Chuck Size.................................... 6"
Cross Travel Turret 1 (X1-Axis)........................ 9.3"
Longitudinal Travel Turret 1 (Z1-Axis)................. 9.8"
Cross Travel Turret 2 (X2-Axis)........................ 9.3"
Longitudinal Travel Turret 2 (Z2-Axis)................. 9.8"
Headstock 2 Travel (W1-Axis)........................... 30.9"
Rapid Traverse Rate (X1, X2 Axes)...................... 709 IPM
Rapid Traverse Rate (Z1-Axis).......................... 945 IPM
Rapid Traverse Rate (Z2-Axis).......................... 1181 IPM
Number of Turrets...................................... 2
Tool Positions......................................... 12 each turret
Bar Capacity .......................................... 1.75"
Spindle Nose........................................... A2-5
Spindle Speed Range.................................... 30-5000 RPM
Spindle Horsepower..................................... 10 HP
Approximate Machine Dimensions (w/o Barfeeder)......... 106" x 77"
Approximate Machine Height............................. 70"
Approximate Machine Weight............................. 12,320 LBS

CONDITIon: Appears to be in Excellent Condition!
