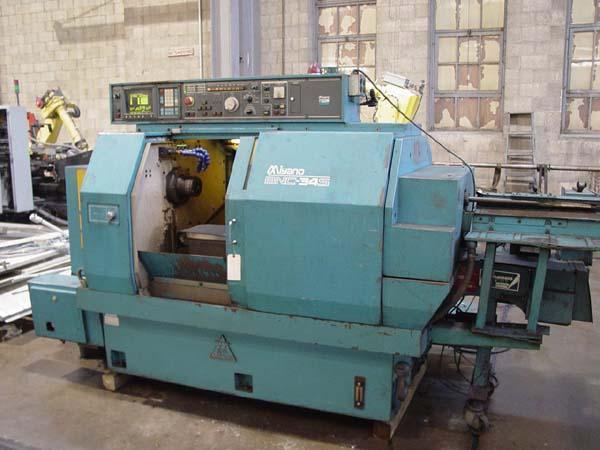

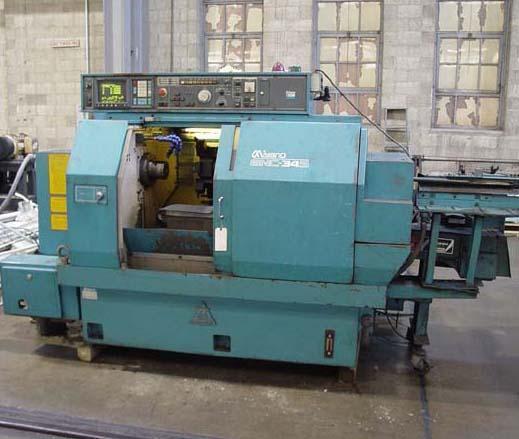

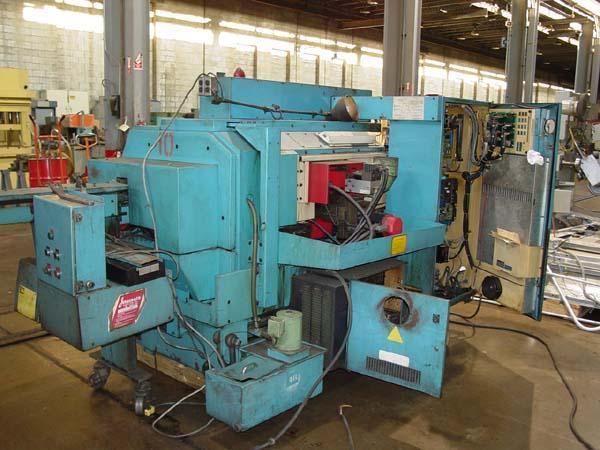

Stock #: K13595
Brand: MIYANO
Model: BNC-34S
Type: Lathes, CNC (3-Axis or More)
Condition: Excellent
Year: 1991

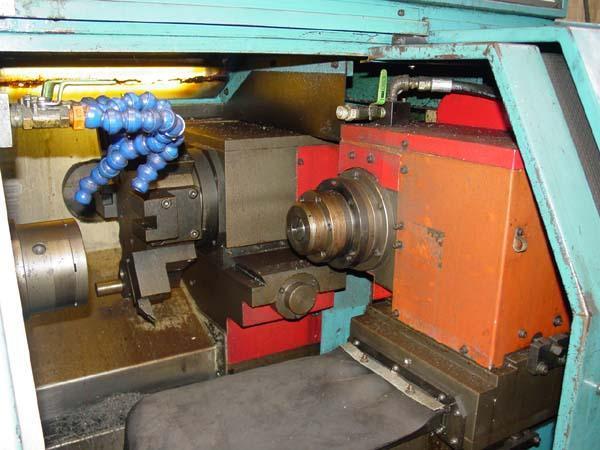

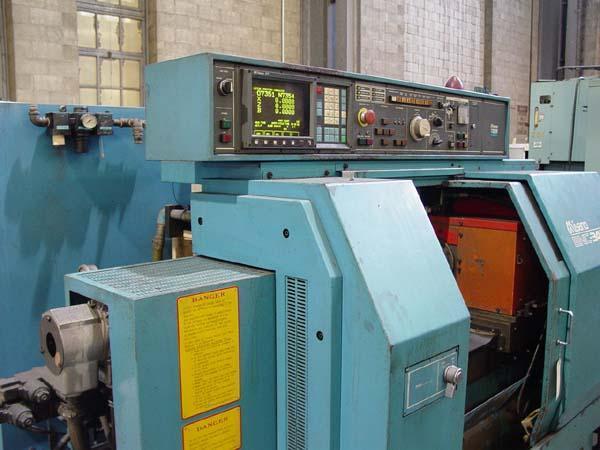

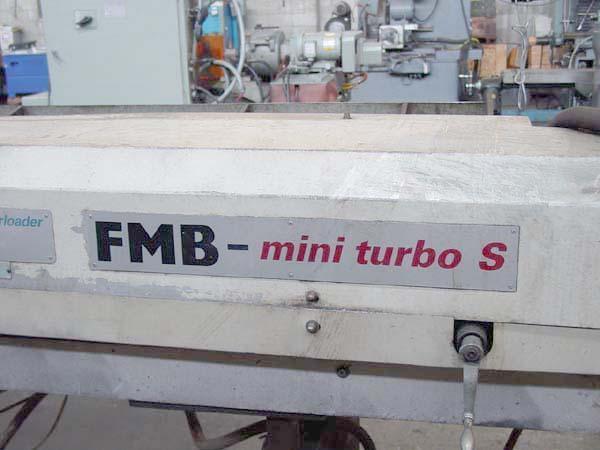

Fanuc OT-C CNC Control with CRT, RS232 Port for DNC System, Spindle Load Meter, 6 Station Turret, Sub-Spindle, FMB Turbo S Magazine Type Bar Feeder, Heavy Duty Slant Bed Construction, Chip Conveyor, Coolant System, Tooling Package.
Specifications: |
|
---|---|
CNC Control | yes |
Type of CNC Control | Fanuc 0T-C CNC Control |
Max Swing Over Cross Slide | 10.62" |
Max Turning Diameter | 4-3/4" |
Max Part Length | 5" |
X-Axis (Cross Travel) | 3-7/8" |
Z-Axis (Longitudinal Travel) | 11-3/8" |
# Tool Turrets | 1 |
Tool Turret Positions | 6 |
Bar Capacity | 1-1/4" |
Spindle Speed Range | 170 - 5,000 RPM |
Sub-Spindle Speed Range | 170 - 5,000 RPM |
Spindle Horsepower | 10 HP |
Approximate Machine Dimensions | 59" x 100" w/o Barfeeder |
Approximate Machine Height | 67" |
Approximate Machine Weight | 6,200 LBS |
CONDITION: This Machine Appears to be in Excellent Condition !
