Stock #: K13568
Brand: MAZAK

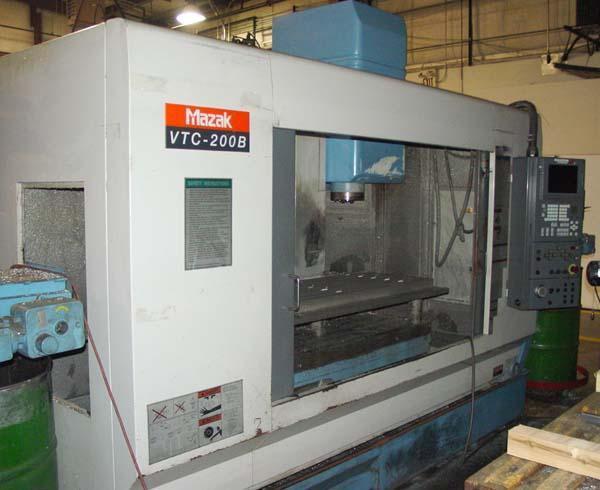

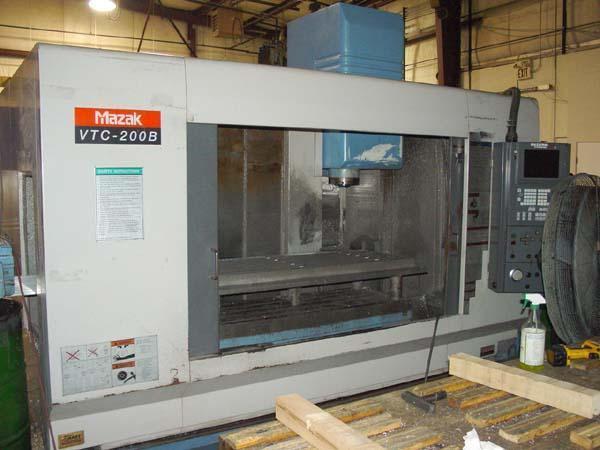

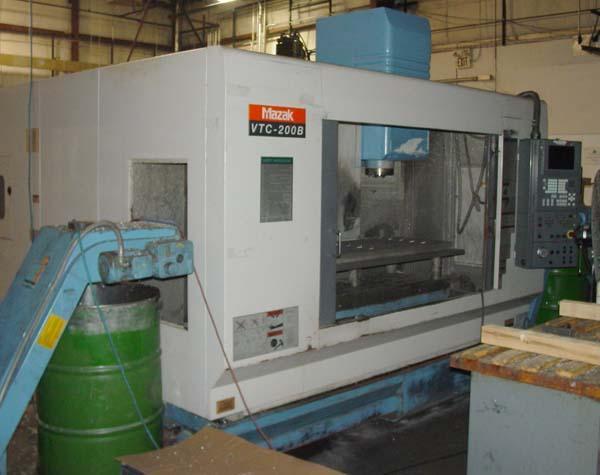

Model: VTC-200B
Type: Machining Centers, Vertical
Condition: Very Good
Year: 2001
Mazatrol 640M CNC Control, Fast Menu Driven (Conversational) Control with Self Diagnostics, Back Ground Tool Path and Part Graphics, Interactive Graphic Programming, Coolant Thru the Spindle, Rigid Tapping, Adaptive Feedrate Control, Tool Probe, 24 Station Tool Changer, RS-232 Port, 10,000 RPM Spindle Chip Conveyor, Thru-Spindle Coolant, and Coolant System.
Specifications: |
|
---|---|
CNC Control | yes |

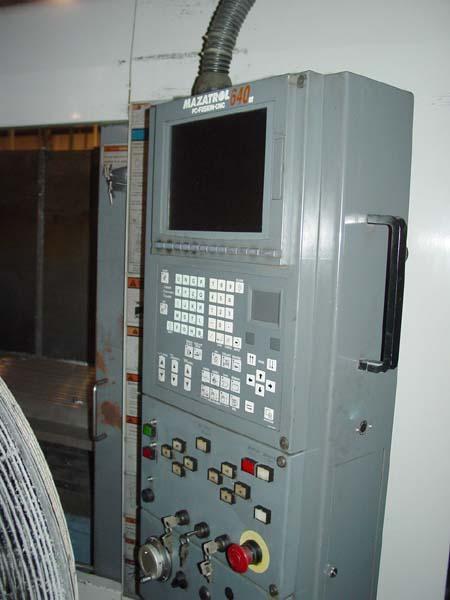

Type of CNC Control | Mazatrol 640M CNC Control |
# Axis | 3 |
Table Size | 57.4" x 20.8 |
X-Axis (Longitudinal Travel) | 44.09" |
Y-Axis (Cross Travel) | 20.08" |
Z-Axis (Vertical Travel) | 20.08" |
Rapid Traverse Rate, All Axes | 1181 IPM |
Spindle Horsepower | 20 HP |
Spindle Speed Range | 60 - 10,000 RPM |
Spindle Taper | #40 CAT (V-Flg) |
Coolant Thru Spindle | yes |
Automatic Tool Changer Capacity (ATC) | 24 |
Approximate Machine Dimensions | 118" x 114" |
Approximate Machine Height | 105" |
Approximate Machine Weight | 13,420 LBS |
CONDITION: This Machine Appears to be in Very Good Condition !!!
