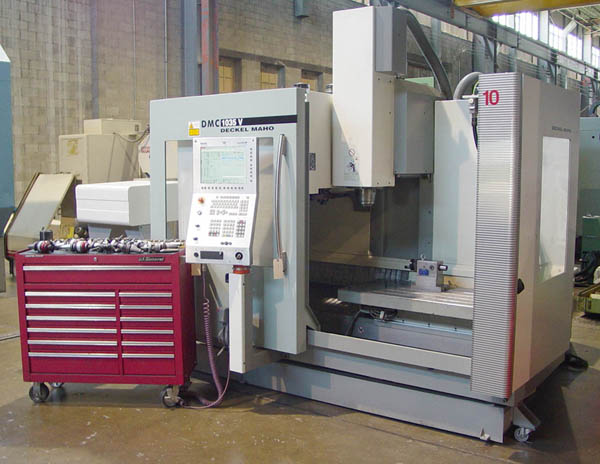

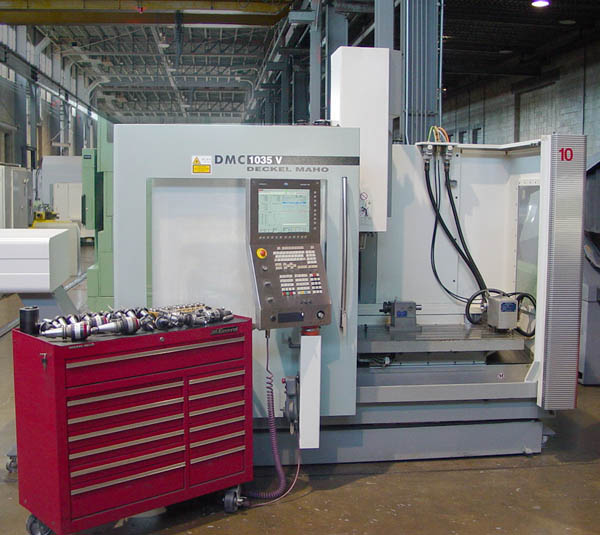

DMG DMC 1035V 4-AXIS CNC VERTICAL MACHINING CENTER

Stock #: K13634

Brand: DMG
Model: DMC-1035V
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2005

Equipped With:

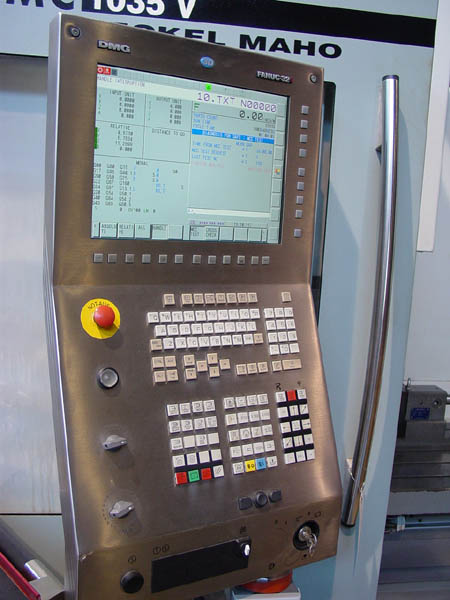

CNC Control……………. Fanuc 32i CNC<br>
# Axis……………… 4<br>
Table-L.......................... 47.24"<br>
Table-W.......................... 22.04"<br>
Max Table Load Capacity............................ 2200 LBS         <br>
Longitudinal Travel (X-Axis)................... 40.75"<br>
Cross Travel (Y-Axis).......................... 22.04"<br>
Vertical Travel (Z-Axis)....................... 20.07"<br>
Feed Rates (X Y & Z-Axis)...................... 787 in/min.<br>
Rapid Traverse Rate ........................... 1181 IPM<br>
Min Clearance Tabletop to Spindle Nose...................... 4.72"<br>
Max Clearance Tabletop to Spindle Nose...................... 24.8"<br>
Tool Storage Capacity.......................... 20<br>
Spindle Power............................. 17 HP<br>
Spindle Speed Range............................ 60 - 8,000 RPM<br>

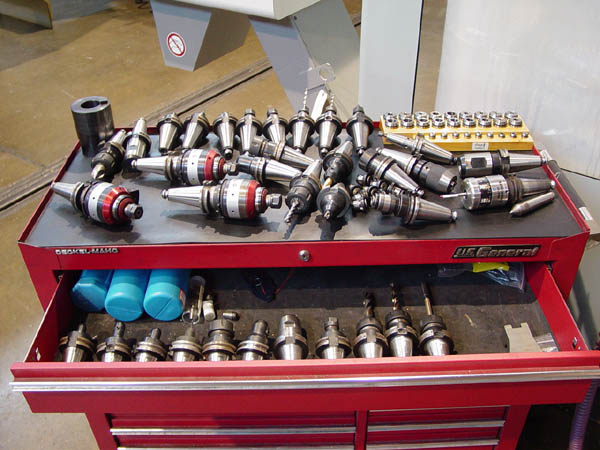

Spindle Taper.................................. #40 CAT<br>
Electrics...................................... 460/3/60<br>
Approximate Machine Dimensions................. 112" x 98" x 89"<br>
Approximate Machine Weight..................... 10,000 LBS


CONDITION: This Machine Appears to be in Excellent Condition !
