Stock #: K13529
Brand: CLAUSING COLCHESTER

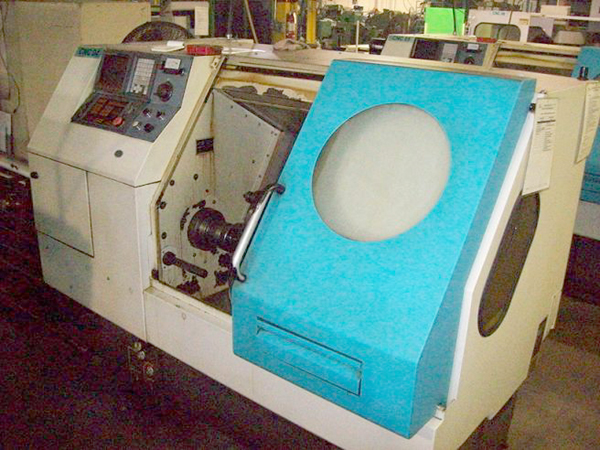

Model: STORM 80
Type: Lathes, CNC
Condition: Very Good
Year: 1997

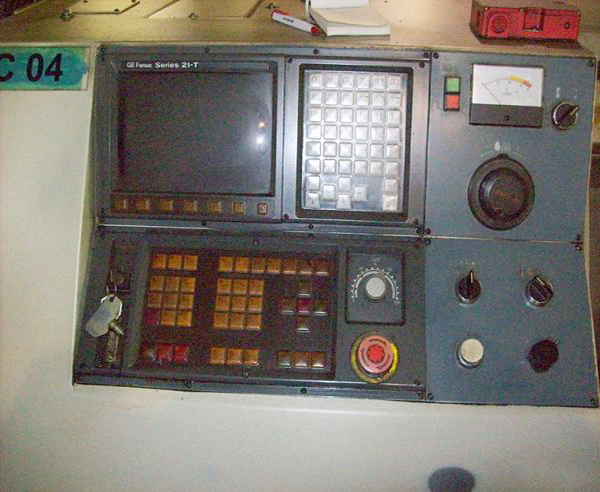

Fanuc 21T CNC Control, Multiple Part Program Storage, RS-232 Port, 6" 3-Jaw Chuck, 12 Position Tool Turret, All Fanuc Drives and Motors, Programmable Tailstock, Chip Pan and Coolant System, Tooling Package.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Fanuc 21T CNC Control |
| Max Swing Over Bed | 16.54" |
| Max Turning Diameter | 6.69" |
| Max Tailstock Position | 23.78" |
| Chuck Size | 6" |
| X-Axis (Cross Travel) | 6.5" |
| Z-Axis (Longitudinal Travel) | 23.78" |
| X-Axis Feed Rates | .1-394 IPM |
| X-Axis Rapid Traverse Rate | 591 IPM |
| Z-Axis Feed Rates | .1-394 IPM |
| Z-Axis Rapid Traverse Rate | 591 IPM |
| # Tool Turrets | 1 |
| Tool Turret Positions | 12 Total |
| Spindle Nose | A2-5 |
| Bar Capacity | 1.65" |
| Spindle Speed Range | 45 - 6,000 RPM |
| Spindle Horsepower | 15 HP |
| Approximate Machine Dimensions | 117" x 74" |
| Approximate Machine Height | 73" |
| Approximate Machine Weight | 5,560 LBS |
CONDITION: Two machines available. Both were purchased for a special job in 1997 and used until 2001 until that job ended. The machine have been used very little since that. Both Machines Appears to be in Very Good Condition !
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Equipped With |
|---|
|
Fanuc 21T CNC Control, Multiple Part Program Storage, RS-232 Port, 6" 3-Jaw Chuck, 12 Position Tool Turret, All Fanuc Drives and Motors, Programmable Tailstock, Chip Pan and Coolant System, Tooling Package. |
Specifications |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Fanuc 21T CNC Control |
| Max Swing Over Bed | 16.54" |
| Max Turning Diameter | 6.69" |
| Max Tailstock Position | 23.78" |
| Chuck Size | 6" |
| X-Axis (Cross Travel) | 6.5" |
| Z-Axis (Longitudinal Travel) | 23.78" |
| X-Axis Feed Rates | .1-394 IPM |
| X-Axis Rapid Traverse Rate | 591 IPM |
| Z-Axis Feed Rates | .1-394 IPM |
| Z-Axis Rapid Traverse Rate | 591 IPM |
| # Tool Turrets | 1 |
| Tool Turret Positions | 12 Total |
| Spindle Nose | A2-5 |
| Bar Capacity | 1.65" |
| Spindle Speed Range | 45 - 6,000 RPM |
| Spindle Horsepower | 15 HP |
| Approximate Machine Dimensions | 117" x 74" |
| Approximate Machine Height | 73" |
| Approximate Machine Weight | 5,560 LBS |
| CONDITION: Two machines available. Both were purchased for a special job in 1997 and used until 2001 until that job ended. The machine have been used very little since that. Both Machines Appears to be in Very Good Condition ! |
