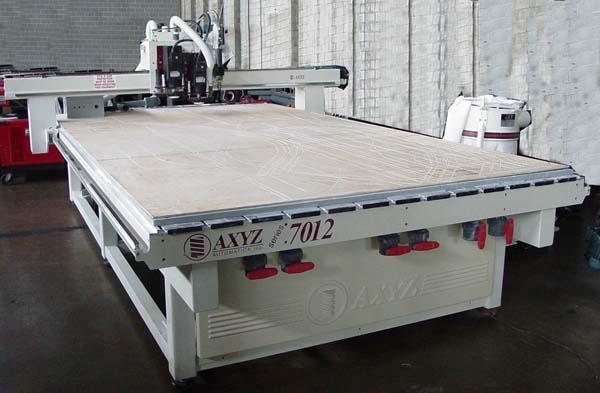

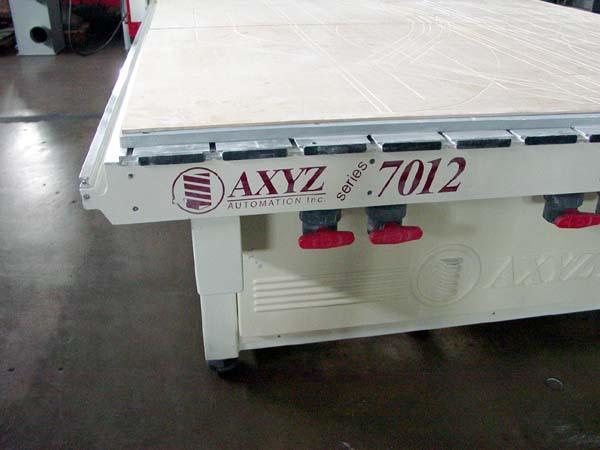

AXYZ 7' x 12' TWIN HEAD CNC VERTICAL ROUTER

Stock #: K13824

Brand: AXYZ
Model: 7012
Type: Routers
Condition: Like New
Year: 2001

Equipped With:

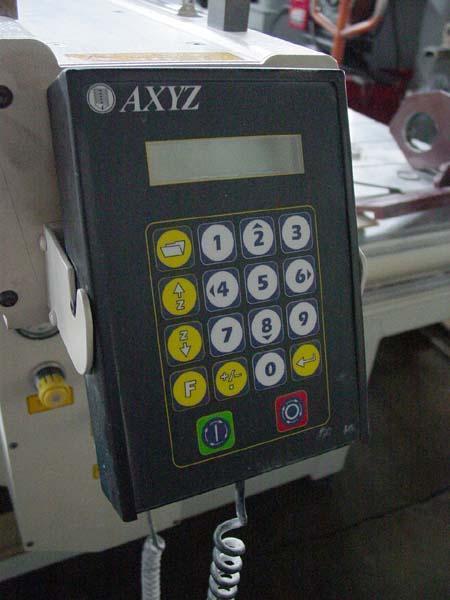

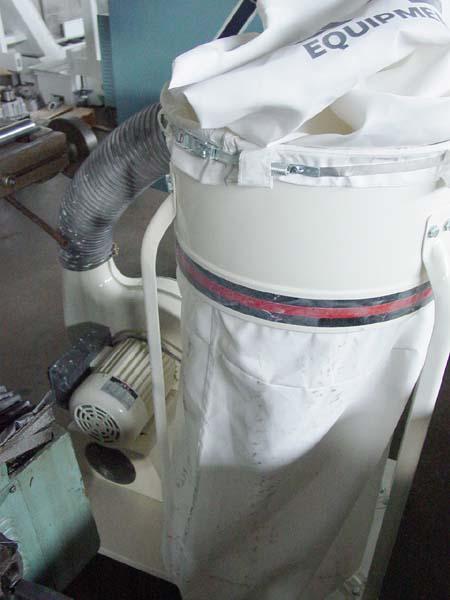

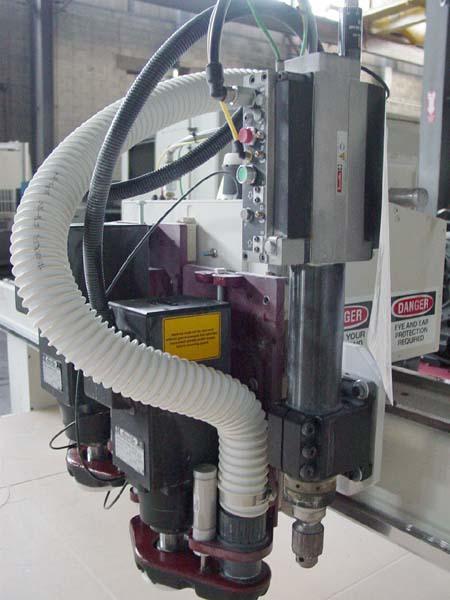

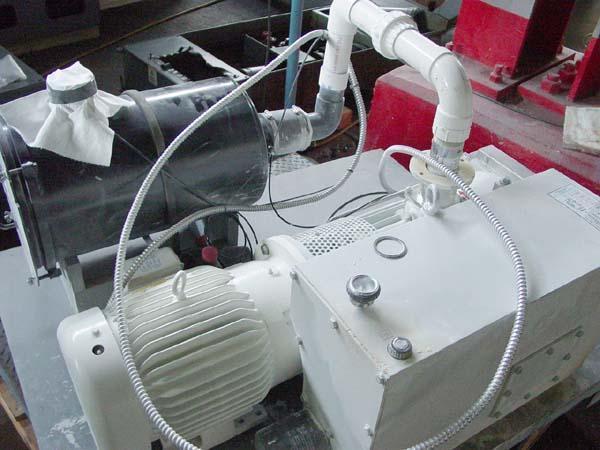

Axyz AMC Smart CNC Control with Hand Held Pendent, RS-232 Port, Multiple Part Program Storage, Laser Surface Sensor,(2) Router Heads with Independent Z-Axis Slides, (1) 10 HP 24,000 RPM Variable Speed Spindle, (1) 5 HP KW 24,000 RPM Variable Speed Spindle,(1) Drilling Spindles, Vacuum Table with 10HP Vacuum Pump, Dust Collector,

SPECIFICATIONS:
Table Total Surface................................... 83" x 169"
Table Working Surface................................. 83" x 144"
Table Load Capacity................................... 1,000 LBS
Longitudinal Travel (X-Axis).......................... 153"
Cross Travel (Y-Axis)................................. 91"
Vertical Travel (Z-Axis).............................. 7"
Traverse Rate ........................................ 1000 IPM
Spindle Horsepower.................................... 10 HP
MAX Spindle Speeds ................................... 24000 RPM
Spindle Taper......................................... ER-25
Electrics............................................. 220/3/60
Approximate Machine Dimensions........................ 17' x 9'7"
Approximate Machine Height............................ 72"
Approximate Machine Weight............................ 5,000 LBS

CONDITION: Used to cut plastic only. Very Low Hours.
Appears to be in Like New Condition !
