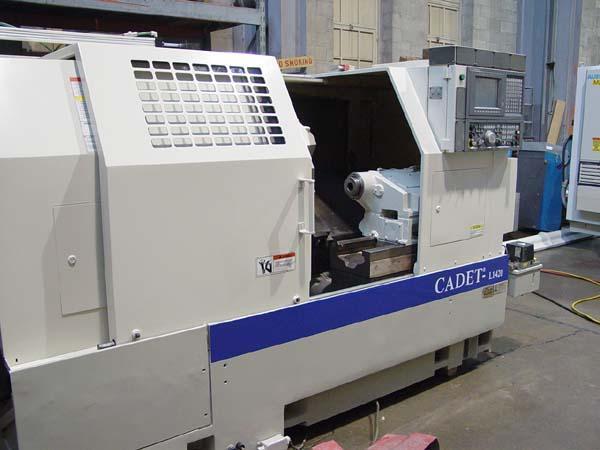

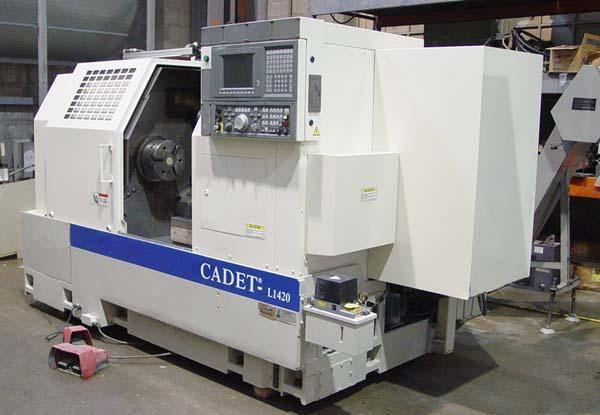

OKUMA CADET-L1420 CNC TURNING CENTER

Stock #: K13818

Brand: OKUMA
Model: CADET L1420
Type: Lathes, CNC
Condition: Excellent
Year: 1998

Equipped With:

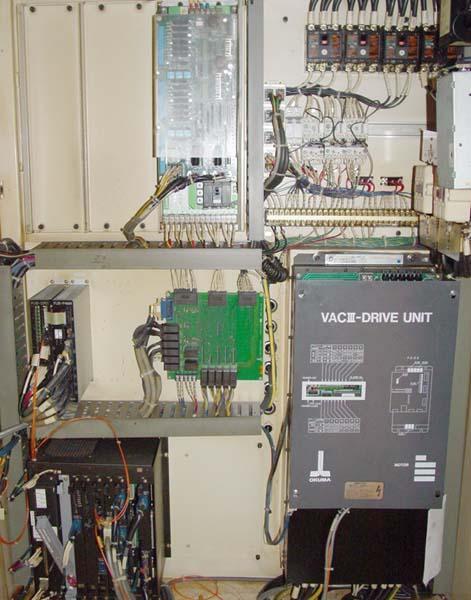

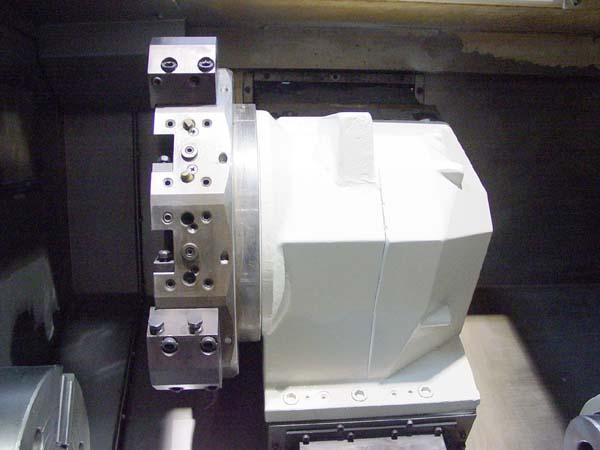

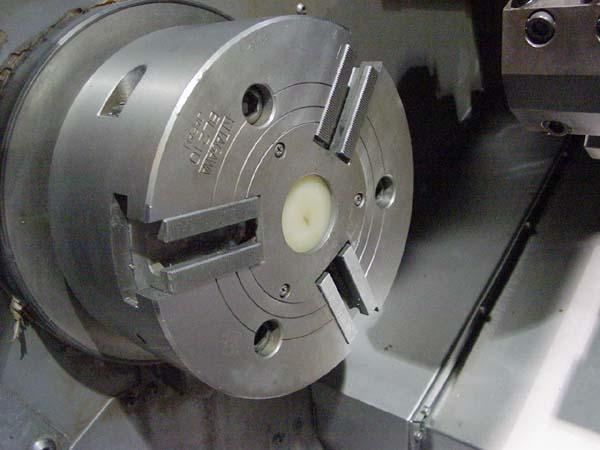

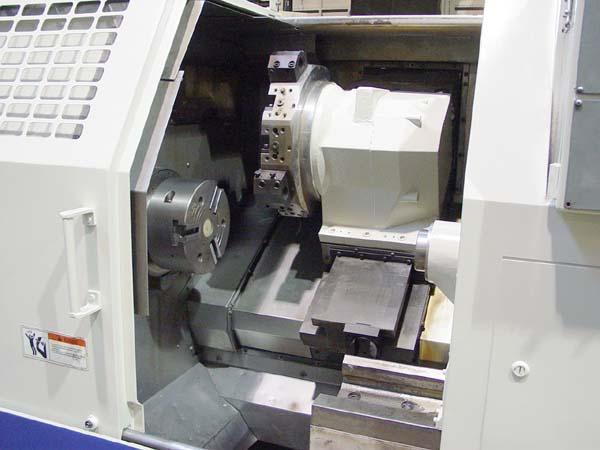

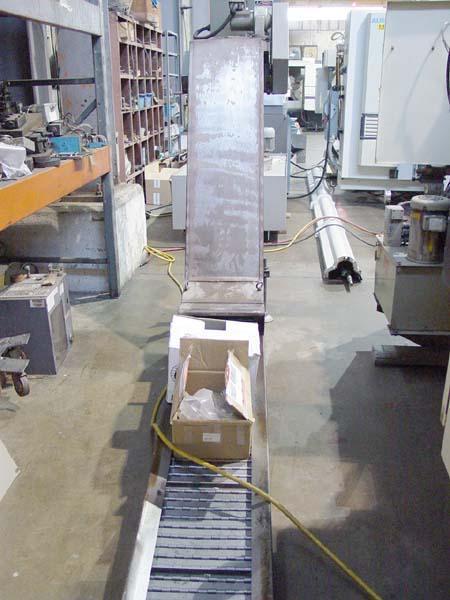

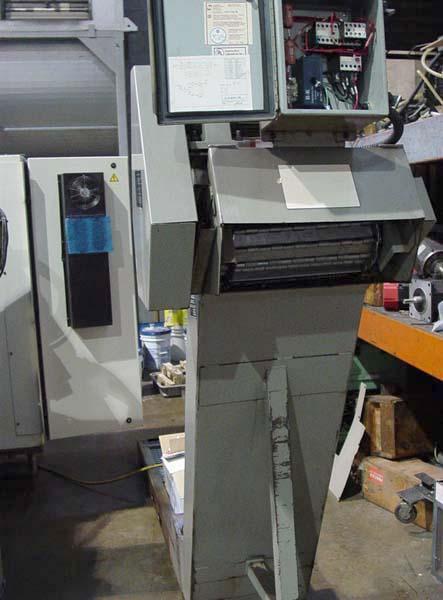

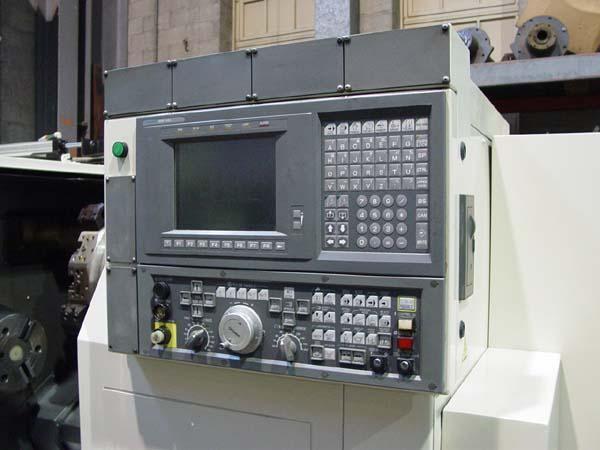

OSP 700L CNC Control, RS-232 Port, LAP4, Nose Radius 2B, User Task 2, Auto Chamfer, 2-Speed Geared Spindle, Turret Position Comp, Floppy DiskDrive, Cycle Time Monitor, 10" Kitagawa 3-Jaw Hydraulic Chuck, 12 Position Turret, Hydraulic Tailstock with Programmable Quill, Auto Door, Chip Conveyor, Tooling Package.

SPECIFICATIONS:
Max Swing Over Bed ..................................... 28"
Max Swing Over Saddle................................... 18.9"
Max Tail Stock Position................................. 31"
Max Work Diameter ...................................... 14.17"
Chuck Size.............................................. 10"
Cross Travel (X-Axis)................................... 9.05"
Longitudinal Travel (Z-Axis)............................ 25.59"
Rapid Traverse Rate (X-Axis)............................ 472 IPM
Rapid Traverse Rate (Z-Axis)............................ 591 IPM
Tool Positions.......................................... 12
Spindle Nose ........................................... A2-8
Spindle Speed Range..................................... 52-3500 RPM
Spindle Drive Motor..................................... 20 HP
Hydraulic Tailstock Stroke.............................. 4.72"
Hydraulic Tailstock Taper............................... #5 MT
Electrics............................................... 220/3/60
Approximate Machine Dimensions.......................... 135" x 72"
Approximate Machine Weight.............................. 17,500 LBS

CONDITION: Machine Appears to be Excellent Condition !
