Stock #: K13794
Brand: HAAS

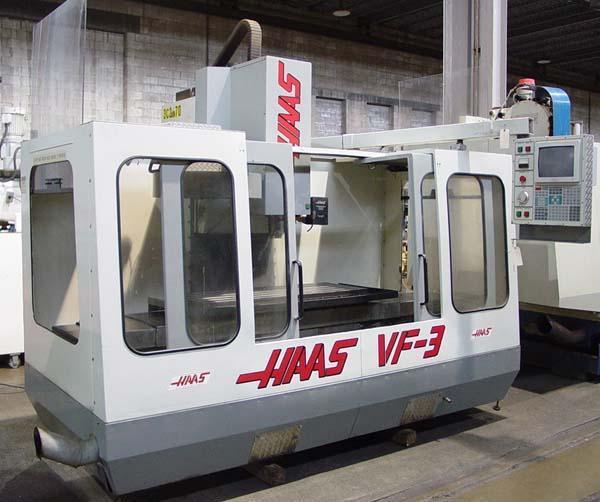

Model: VF-3
Type: Machining Centers, Vertical
Condition: Very Good
Year: 1994

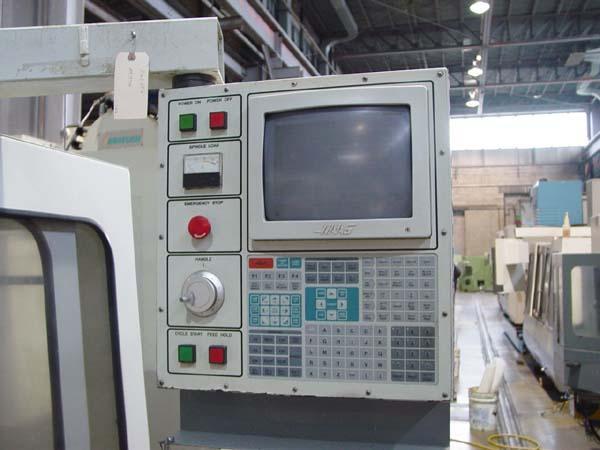

CNC Control……………. Haas CNC<br>
# Axis……………… 3<br>

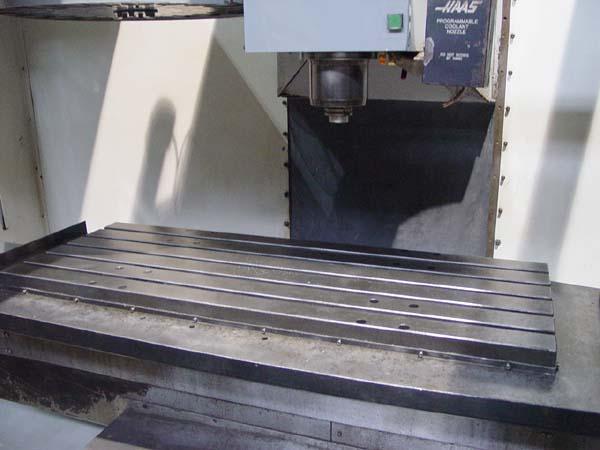

Table-L............................. 48"<br>
Table-W............................. 18"<br>
Max Table Load Capacity............................... 3,500 LBS<br>
Longitudinal Travel (X-Axis)...................... 40"<br>
Cross Travel (Y-Axis)............................. 20"<br>
Vertical Travel (Z-Axis).......................... 25"<br>
Max Clearance Tabletop to Spindle Nose....... 29"<br>
Tool Storage Capacity............................. 20<br>
Spindle Power................................ 20 HP<br>
Spindle Speeds Range.............................. 0-7,500 RPM<br>
Spindle Taper..................................... No. 40 CAT (V-Flange)<br>
Approximate Machine Dimensions.................. 110" x 118" x 119.5"<br>
Approximate Machine Weight........................ 12,500 LBS
Specifications: |
|---|
CONDITION: This Machine Appears to be in Very Good Condition !






Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Equipped With |
|---|
|
CNC Control……………. Haas CNC<br>
# Axis……………… 3<br>
Table-L............................. 48"<br>
Table-W............................. 18"<br>
Max Table Load Capacity............................... 3,500 LBS<br>
Longitudinal Travel (X-Axis)...................... 40"<br>
Cross Travel (Y-Axis)............................. 20"<br>
Vertical Travel (Z-Axis).......................... 25"<br>
Max Clearance Tabletop to Spindle Nose....... 29"<br>
Tool Storage Capacity............................. 20<br>
Spindle Power................................ 20 HP<br>
Spindle Speeds Range.............................. 0-7,500 RPM<br>
Spindle Taper..................................... No. 40 CAT (V-Flange)<br>
Approximate Machine Dimensions.................. 110" x 118" x 119.5"<br>
Approximate Machine Weight........................ 12,500 LBS |
Specifications |
|---|
| CONDITION: This Machine Appears to be in Very Good Condition ! |
