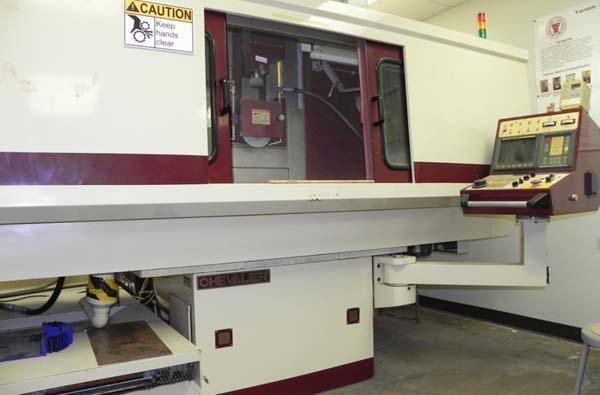

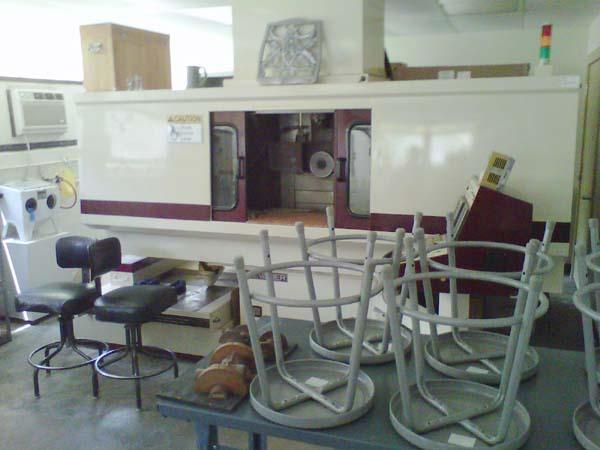

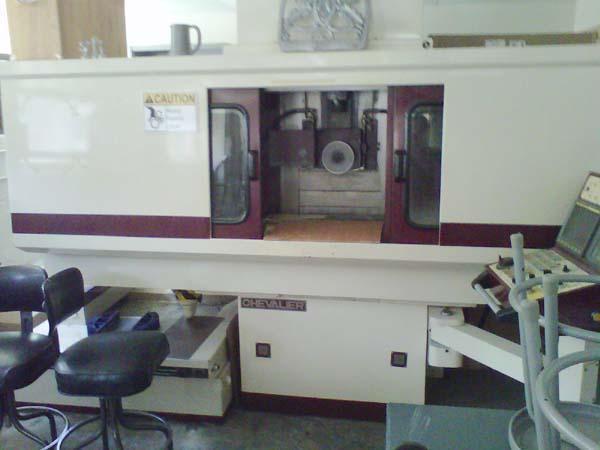

8"x18" CHEVALIER 3-AXIS CNC HORIZONTAL SPINDLE SURFACE GRINDER

Stock #: K13810

Brand: CHEVALIER
Model: FSG-B818CNC
Type: Grinders, Surface, Horizontal, Recip Table, CNC
Condition: Like New
Year: 1993

Equipped With:

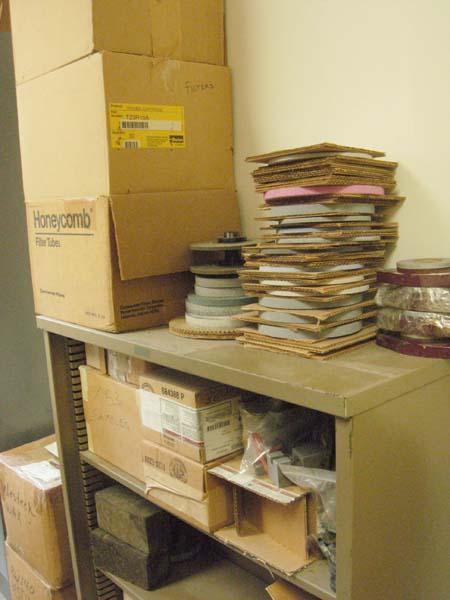

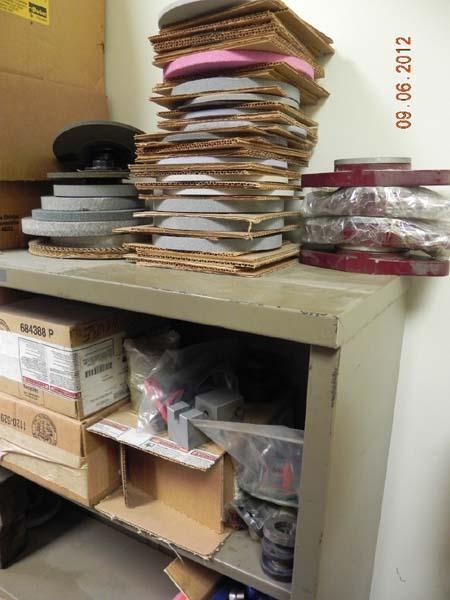

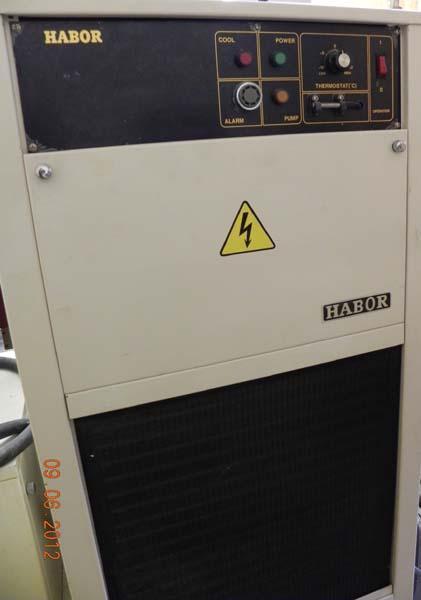

Fanuc OM 3-Axis CNC Control, Full 3-Axis CNC woth Resolution of .00001", CNC Grinding Cycles including: Plunge, Contouring,Profile, Pitch, Surface and Criss-Cross Grinding, 8" x 18" Walker Fine Pole Magnetic Chuck, Above the Wheel Dresser with Automatic Dress Compensation, High Volume Coolant System with Chiller, Coolant Filter System, Includes Misc. Wheels, Diamond Wheels and Dressers.

SPECIFICATIONS:
Magnetic Chuck Working Surface....................... 8" x 18"
Longitudinal Travel (X-Axis)......................... 25.5"
Cross Travel (Z-Axis)................................ 10"
Vertical Travel (Y-Axis)............................. 12"
Max Height Under New Wheel........................... 13"
Max Height Spindle Center to Table................... 19"

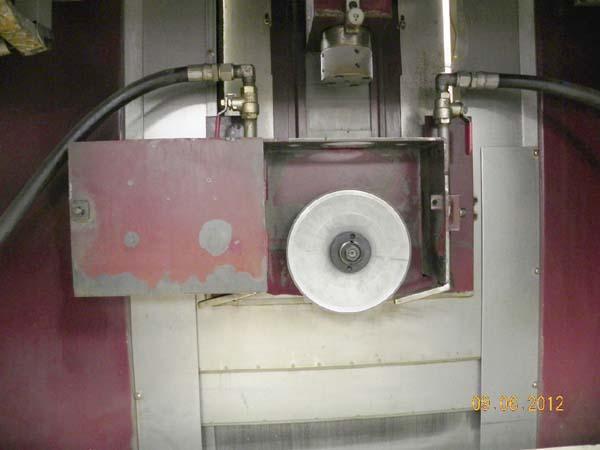

Grinding Wheel Diameter.............................. 12"
Grinding Wheel Width................................. 1.25"
Grinding Wheel Hole Diameter......................... 3"
Grinding Wheel Motor................................. 10 HP
Electrics (Dual Voltage)............................. 220/440/3/60
Approximate Machine Dimensions....................... 118"x 118"
Approximate Machine Height........................... 92"
Approximate Machine Weight........................... 8700 LBS

CONDITION: From a College Lab. Appears to be in Like New Condition !
