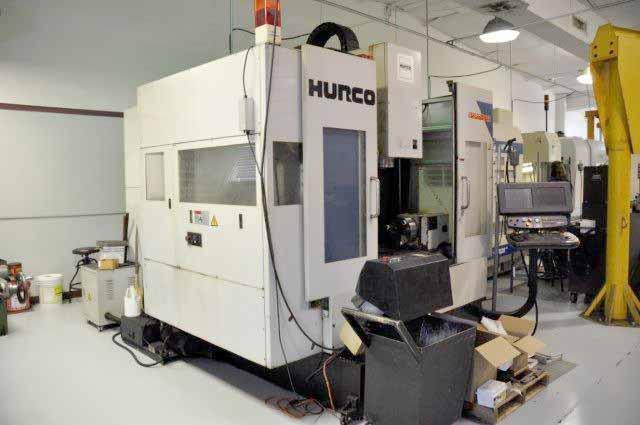

Stock #: K13521
Brand: HURCO

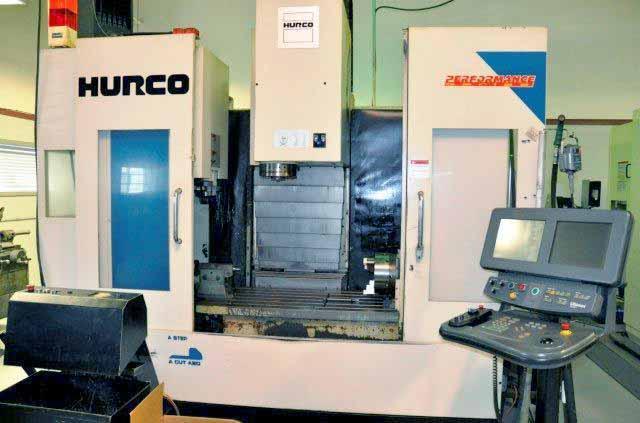

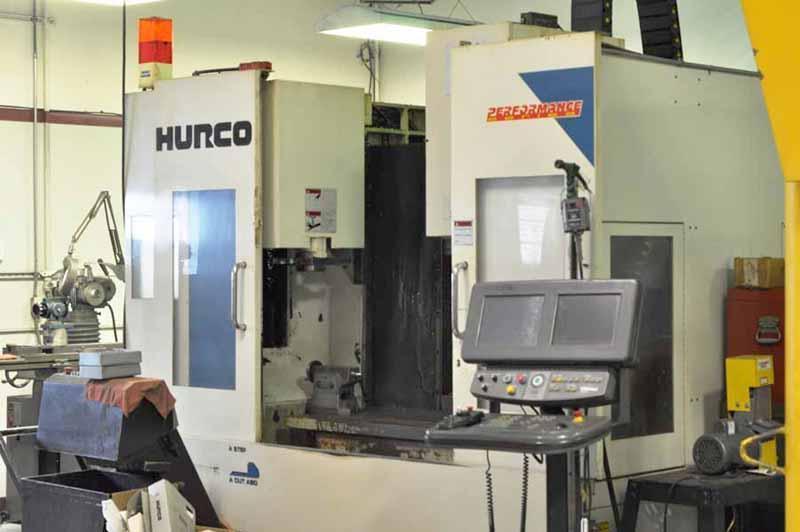

Model: VTC40
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2001

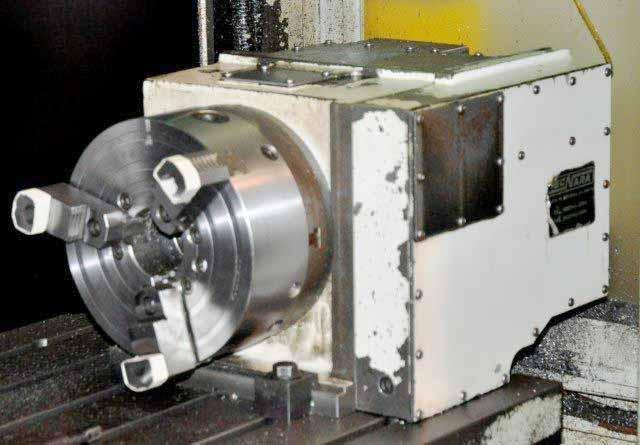

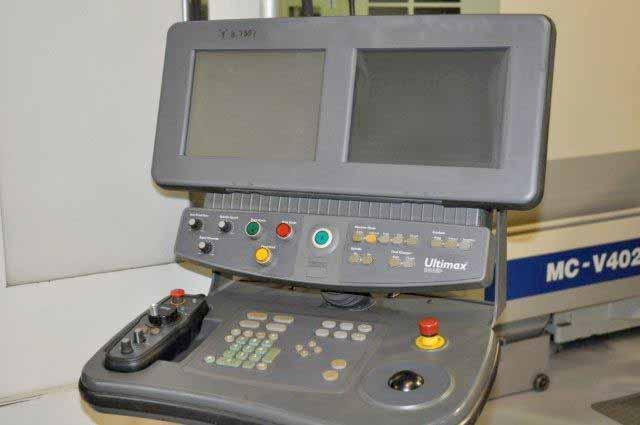

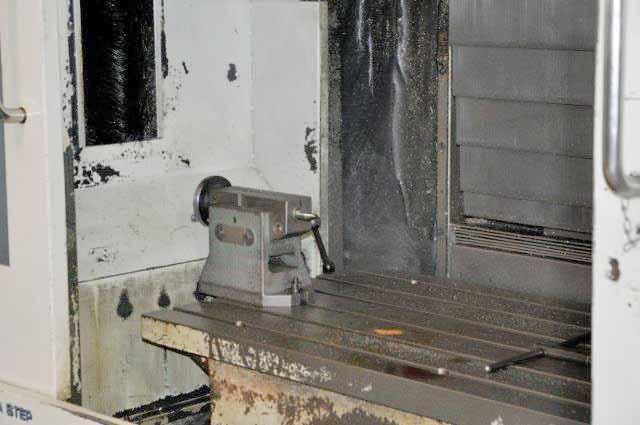

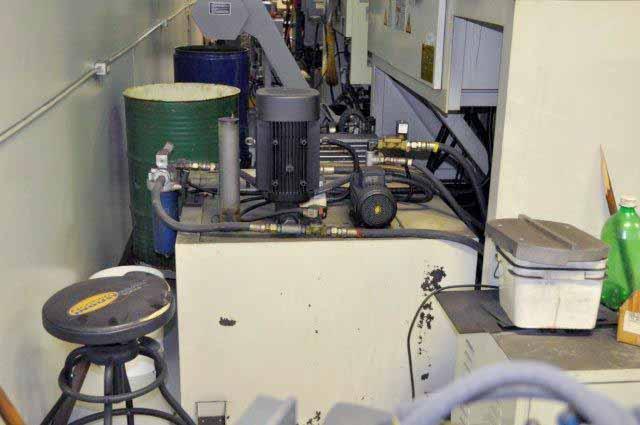

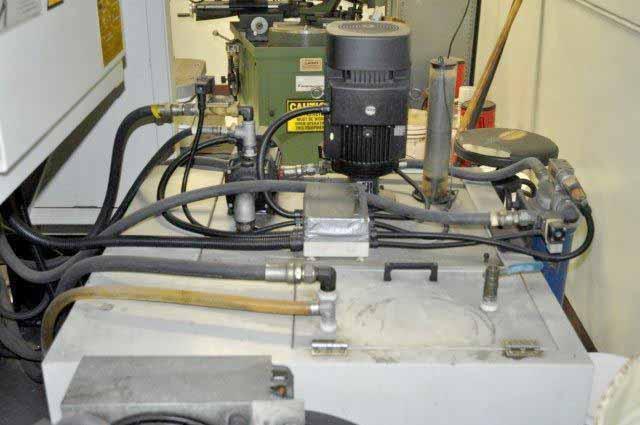

Ultimax 4 CNC Control, Dual Screen CRTs, Kitagawa Full Contouring 4th Axis Rotary Table with Tailstock and 10" 3-Jaw Chuck, RS-232, Multiple Part Program Storage, 40 Station Automatic Tool Changer, Heavy Duty 30 HP Spindle, Work Light, Dual Chip Augers, Chip Conveyor, Thru Spindle Coolant System.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Ultimax 4 CNC Control |
| Table Working Surface | 25.6" x 55" |
| Table Load Capacity | 3,300 LBS |
| X-Axis (Longitudinal Travel) | 40" |
| Y-Axis (Cross Travel) | 24" |
| Z-Axis (Vertical Travel) | 22" |
| Max Clearance Tabletop to Spindle Nose | 30" |
| Feed Rates, All Axes | 0.1 to 1180 IPM |
| Rapid Traverse Rate, All Axes | 1181 IPM |
| Spindle Horsepower | 30 HP |
| Spindle Speeds Range | 10-10,000 RPM |
| Spindle Taper | No. 40 CAT (V-Flange) |
| Coolant Thru Spindle | yes |
| Automatic Tool Changer Capacity (ATC) | 40 |
| Electrics | 240/460/3/60 |
| Approximate Machine Dimensions | 155" x 172" |
| Approximate Machine Height | 121" |
| Approximate Machine Weight | 25,300 LBS |
CONDITION: From a Small Precision Instrument Shop. Appears to be in Excellent Condition !
