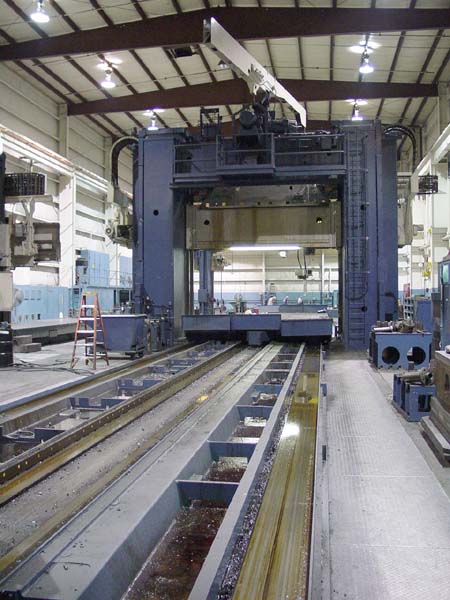

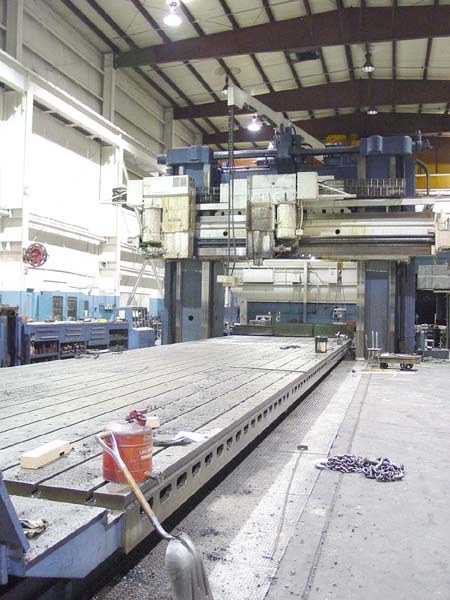

INGERSOLL DOUBLE HOUSING VERTICAL PLANER MILLER

Stock #: K13446

Brand: INGERSOLL
Model: 55M
Type: Machining Centers, Vertical
Condition: Excellent
Year: 1976

Equipped With:

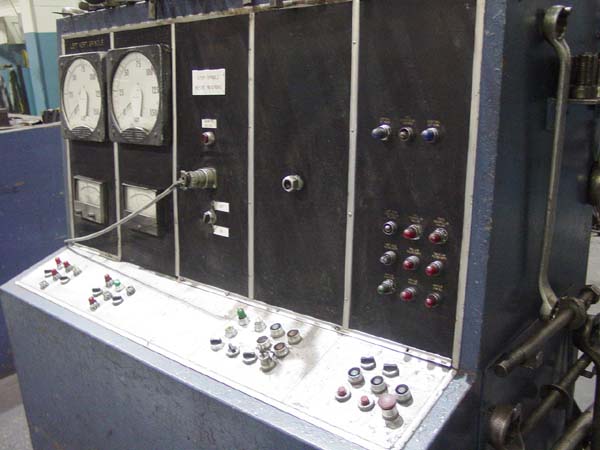

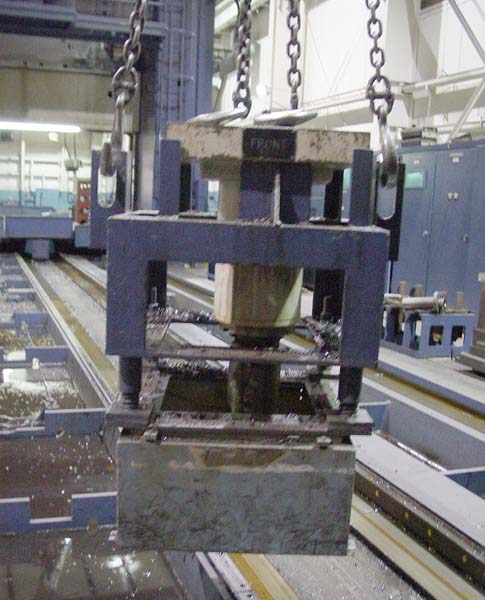

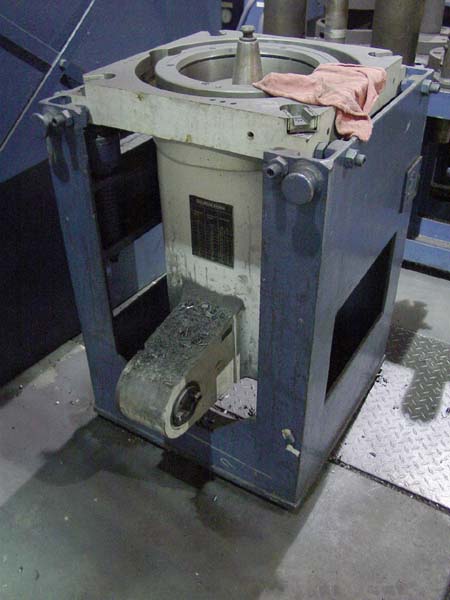

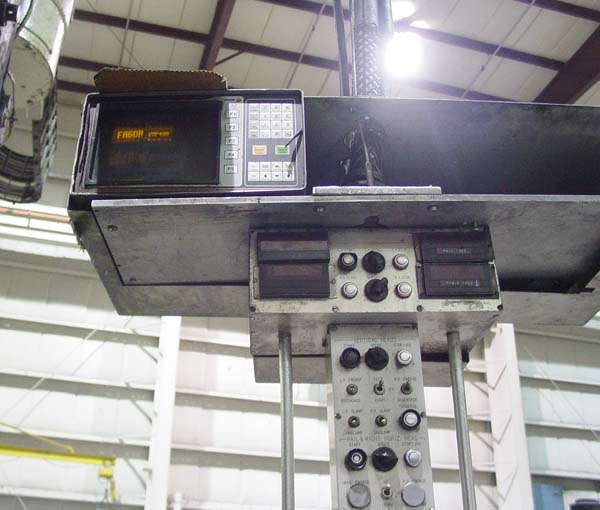

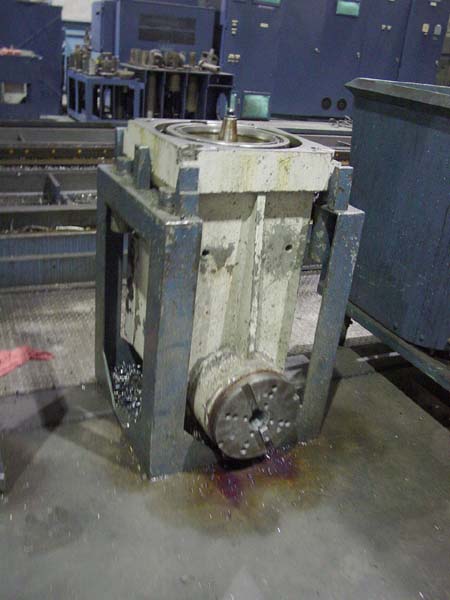

Fagor Digital Readout System, Full Pendent Control, (2) 150 HP Milling Heads, Hard Ways, (1) Right Angle Head, (1) Extended Right Angle Heads, Extended Spindle Attachment, (2) Vertical Skiving Attachments, Split Table Design, Huge Amount of Tooling.

SPECIFICATIONS:Table Working Surface Overall......................... 744" x 178"
Table Surface Front Table............................. 420" x 178"
Table Surface Rear Table.............................. 324" x 178"
Table Load Capacity................................... 250,000 lbs
Longitudinal Travel (X-Axis).......................... 744"
Cross Travel (Y-Axis)................................. 216"
Vertical Travel Cross Rail (Z-Axis)................... 120"
Vertical Travel Quill (W-Axis)........................ 18"
Maximum Height Under Cross Rail...................... 137"
Distance Between Columns.............................. 198"
Spindle Horsepower(Each Head)......................... 150 HP
Spindle Speeds Range.................................. 4-600 RPM
Spindle Taper......................................... #60 Taper
Electrics............................................. 460/3/60
Machine Weight........................................ 1,127,000 lbs

CONDITION: Appears to be in Excellent Condition !
