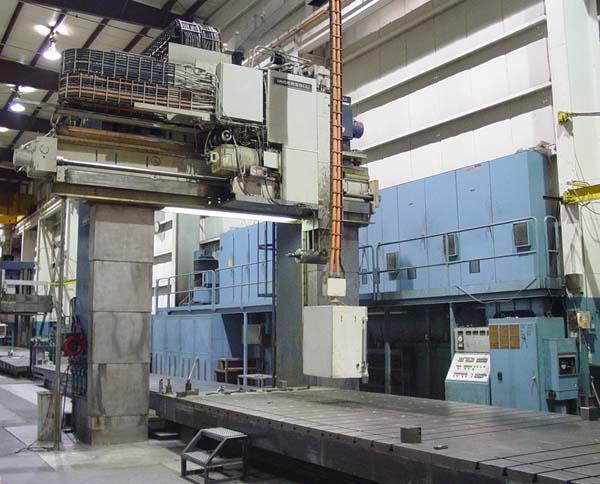

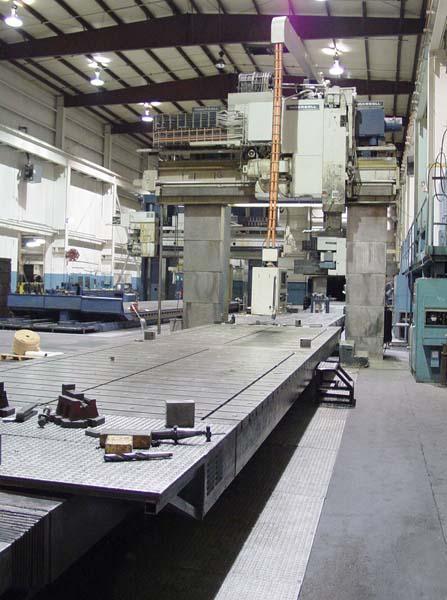

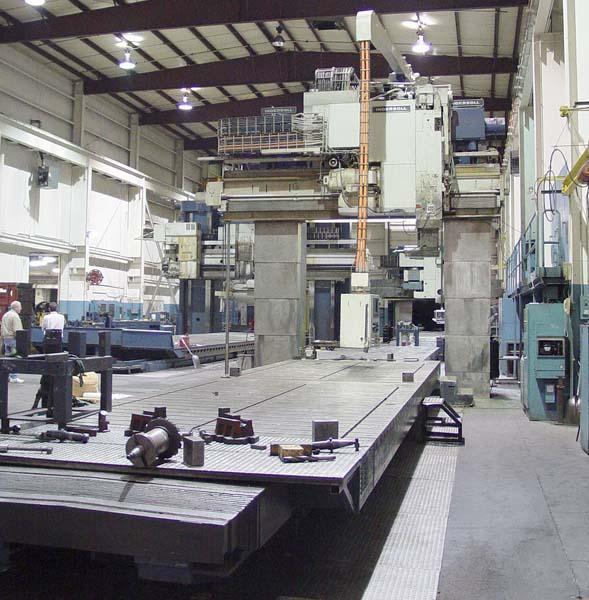

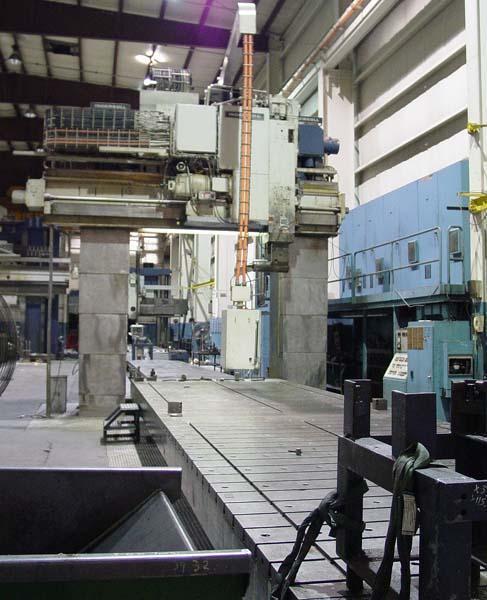

INGERSOLL CNC 5-SIDED VERTICAL BRIDGE MILL

Stock #: K13448

Brand: INGERSOLL
Model: 3.15M
Type: Machining Centers, Vertical
Condition: Excellent
Year: 1992

Equipped With:

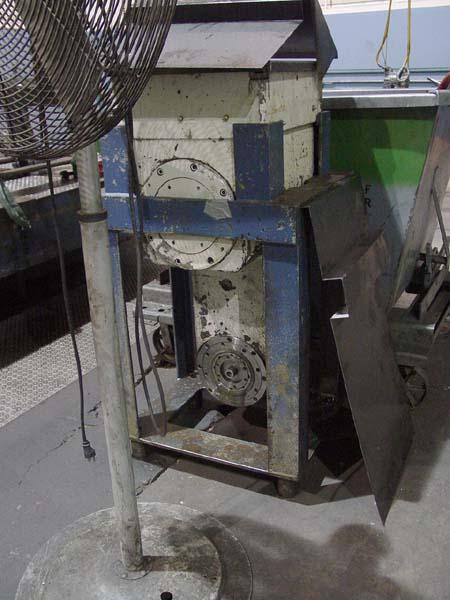

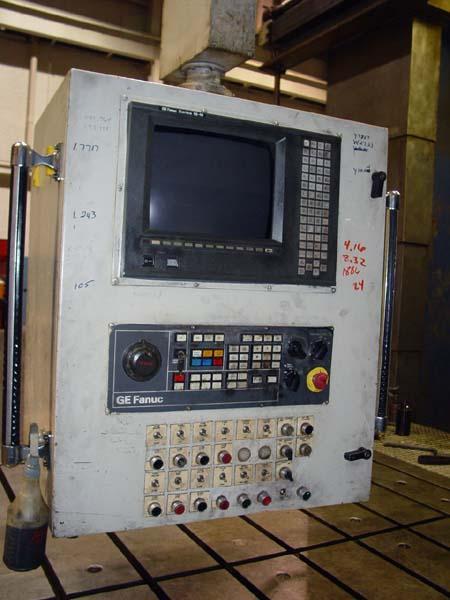

Fanuc 15M CNC Control, Full Pendent Control, Hard Ways, (1) Extended Right Angle Head, (1) Standard Reach Right Angle Head Attachment, Power Indexing on the Heads every 90 Degrees, Split Table Design.

SPECIFICATIONS:
Table Working Surface Overall......................... 360" x 114"
Table Surface Front Table............................. 180" x 114"
Table Surface Rear Table.............................. 180" x 114"
Table Load Capacity................................... 140,000 lbs
Longitudinal Travel (X-Axis).......................... 360"
Cross Travel (Y-Axis)................................. 157"
Vertical Travel Cross Rail (Z-Axis)................... 106"
Vertical Travel Quill (W-Axis)........................ 31.5"
Maximum Height Under Cross Rail....................... 120"
Distance Between Columns.............................. 124"
Spindle Horsepower(Each Head)......................... 125 HP
Spindle Speeds Range.................................. 6-800 RPM
Spindle Taper......................................... #50 Taper
Electrics............................................. 460/3/60
Approximate Machine Weight............................ 200,000 lbs

CONDITION: Appears to be in Excellent Condition !
