Stock #: K13018
Brand: MAZAK

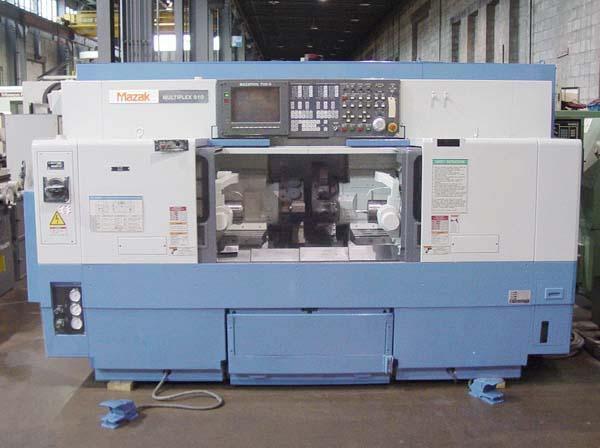

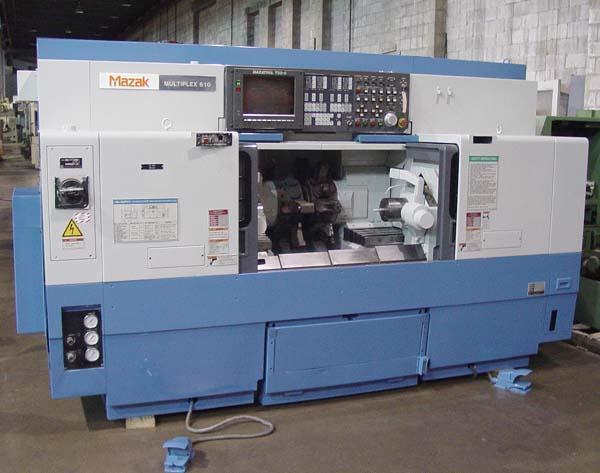

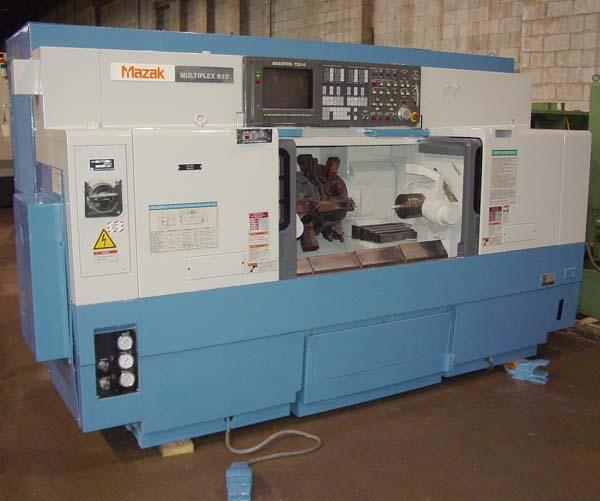

Model: MULTIPLEX 610
Type: Lathes, CNC (3-Axis or More)
Condition: Very Good
Year: 1993

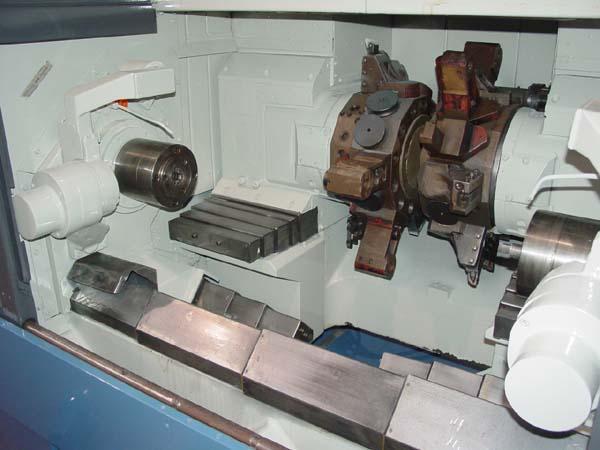

Mazak Mazatrol T-32-6 CNC Control, Mazatrol Conversational Programming, RS-232 Port, Tool Tip Graphics, Live Tooling Milling/Drilling Tool on both Turrets, Full Contouring C-Axis Spindles, Microcentric DK409 Collet Chucks, (2) 12-Position Tool Turrets, Bar Loader, Part Extractor Chip Conveyor, Coolant System, Tooling Package.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Mazak Mazatrol T-32-6 CNC Control |
| Max Swing Over Slant Bed | 13.78" |
| Max Swing Over Crosslide Ways | 13.78" |
| Max Distance Between Spindles | 40.55" |
| Bar Capacity | 1.65" |
| X-Axis (Cross Travel) | 8.78" |
| Z-Axis (Longitudinal Travel of Left Headstock) | 14.37" |
| Z2-Axis (Longitudinal Travel of Right Headstock) | 16.54" |
| X-Axis Rapid Traverse Rate | 945 IPM |
| Z-Axis Rapid Traverse Rate | 945 IPM |
| Upper Turret Positions | 12 |
| Lower Turret Positions | 12 |
| Spindle Speed Range | 35 - 5,000 RPM |
| Spindle Horsepower | 15 HP |
| Driven Tool Spindle Horsepower | 3 HP |
| Approximate Machine Dimensions | 128" x 74" |
| Approximate Machine Height | 95" |
| Approximate Machine Weight | 14,000 LBS |
CONDITION: This Machine Appears to be in Very Good Condition !
