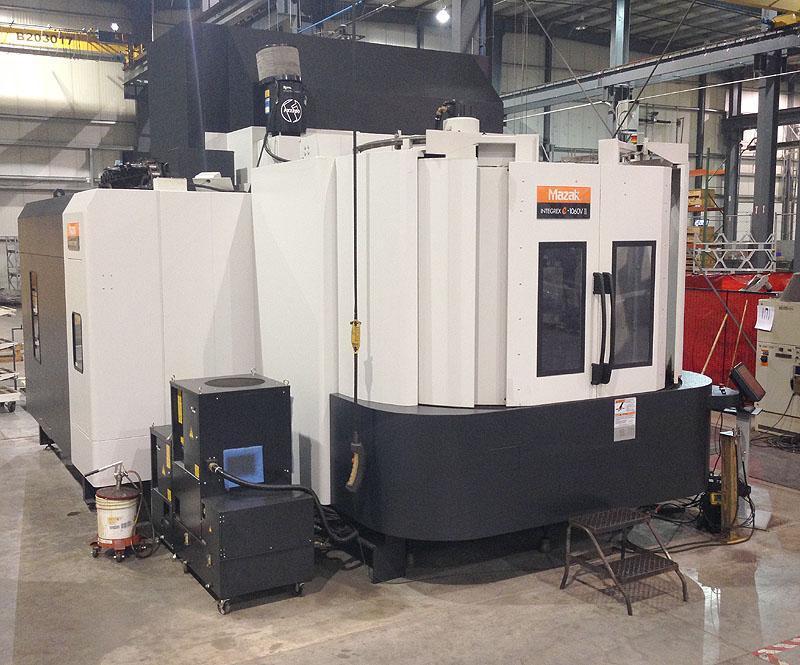

Stock #: K14305a
Brand: MAZAK
Model: Integrex e1060V/8ii
Type: Machining Centers, Horizontal, (5-Axis or More)
Condition: Like New
Year: 2009
Mazak Matrix CNC Control with Color CRT, Mazatrol Conversational Programming, Full 5-Axis Simultaneous Control, 5-Axis Tool Length and Cutter Comp, Multiple Part Program Storage, Ethernet, Hand Held Pendent, Automatic Pallet Changer, Load/Unload Station, Two 39" Diameter Pallets, Full Contouring 4th-Axis Pallet Rotation, Full Contouring 5th-Axis Spindle Tilt, Tool Setting Probe, Mazak e-Tower, Adaptive Feed Control, Pallet Can Rotate at 500 RPM for Turning Applications, 120 Station Automatic Tool Changer, Chip Conveyor, Coolant System.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Mazak Matrix CNC Control with Color CRT |
| # Axis | 5 |
| Number of Pallets | 2 |
| Pallet Dimensions | 39.4" Diameter |
| X-Axis (Longitudinal Table Travel) | 73.82" |
| Y-Axis (Vertical Travel) | 41.73" |
| Z-Axis (Head Cross Travel) | 52.9" |
| A-Axis (Spindle Tilt) | 150° |
| B-Axis (Pallet Rotation Travel) | 360° |
| Max Turning Diameter | 49.2" |
| Rapid Traverse Rate, All Axes | 1,653 IPM |
| Pallet Rotational Speed (Turning) | 1 - 500 RPM |
| Spindle Horsepower | 50 HP |
| Spindle Speed Range | 20 - 8,000 RPM |
| Spindle Taper | #50 CAT |
| # Tool Positions | 120 |
| Electrics | 460/3/60 |
| Approximate Machine Dimensions | 269" x 249" |
| Approximate Machine Height | 141" |
| Approximate Machine Weight | 86,000 LBS |
CONDITION: This Machine Appears to be in Like New Condition !
