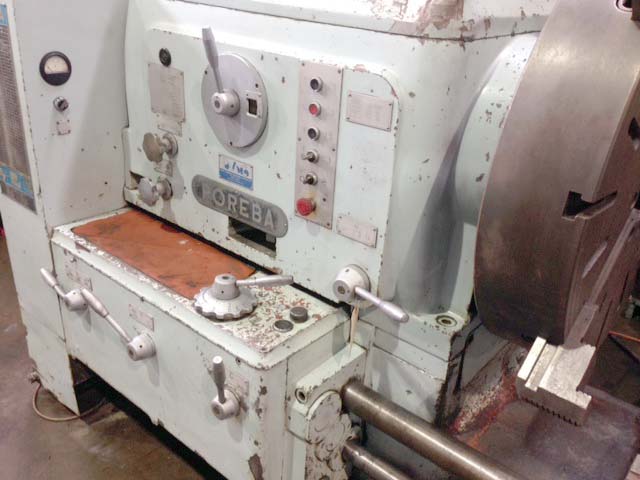

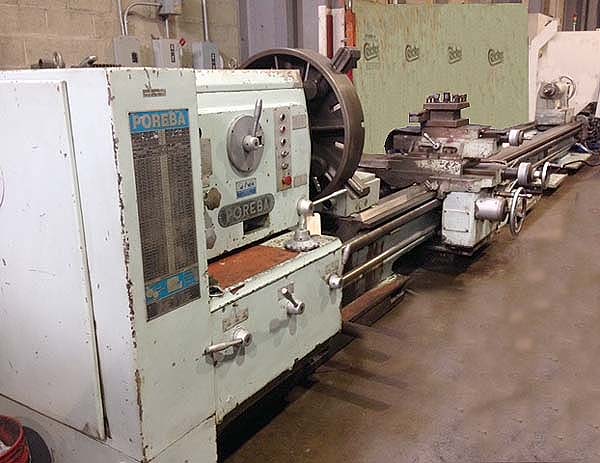

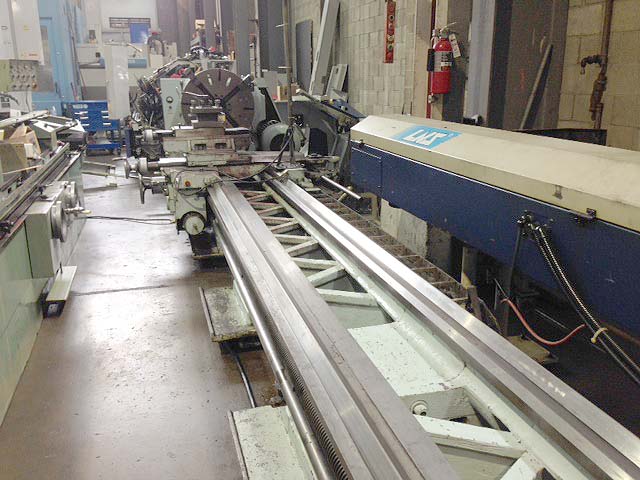

40" X 240" POREBA GAP BED ENGINE LATHE

Stock #: K14298

Brand: POREBA
Model: TR100B1/6M
Type: Lathes, Engine
Condition: Very Good
Year: 1978

Equipped With:

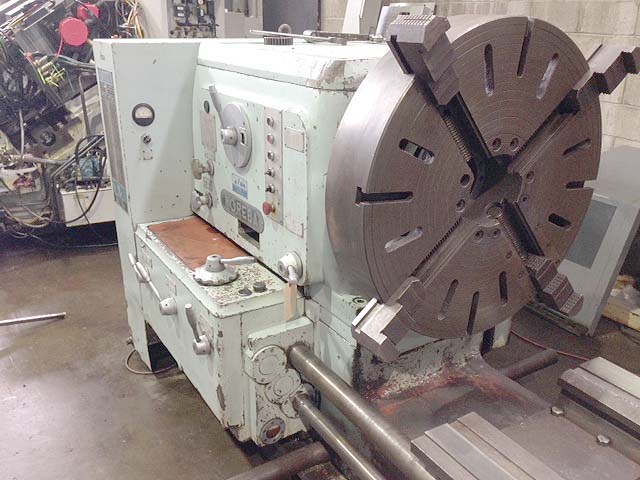

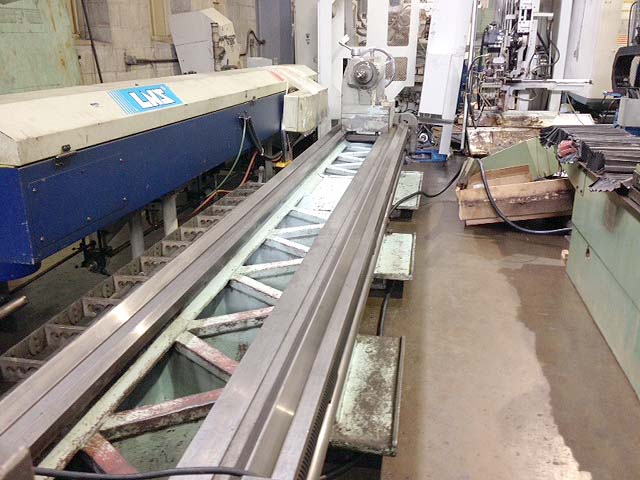

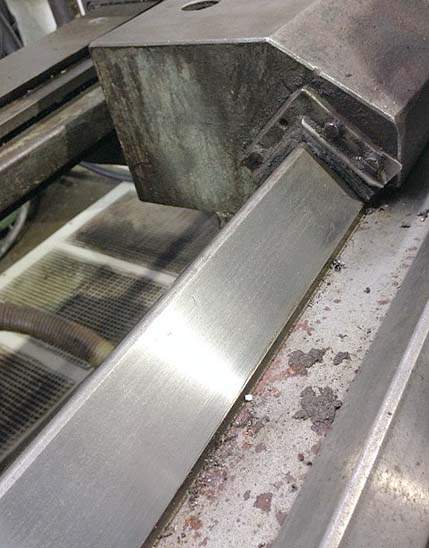

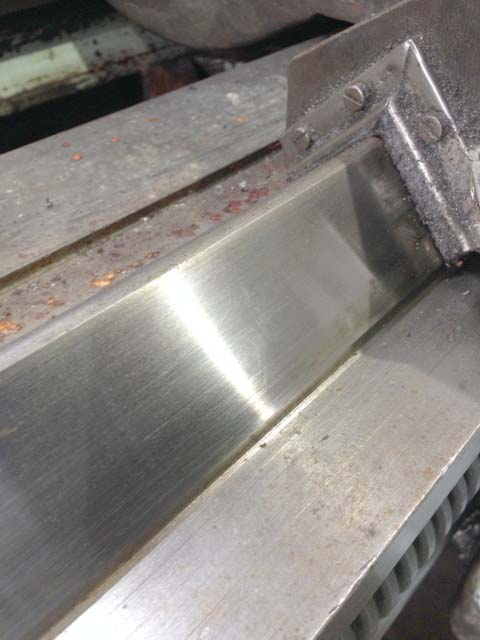

31" 4-Jaw Chuck, Face Plate, (3) Steady Rest, Follow Rest, Coolant Pans, Inch / Metric Threading, Taper Attachmnet, Induction-Hardened Guideways, Rapid Traverse for Carriage, Misc Boring Bars and tools, Central Lubrication for Guideways, Coolant System.

SPECIFICATIONS:
Maximum Swing Over Bed............................... 40"
Maximum Swing in Gap................................. 54"
Maximum Swing Over Carriage.......................... 26-3/4"
Turning Length in Gap................................ 15-3/8"
Max. Distance Between Centers........................ 240"
Hole Thru Spindle.................................... 4-3/4"

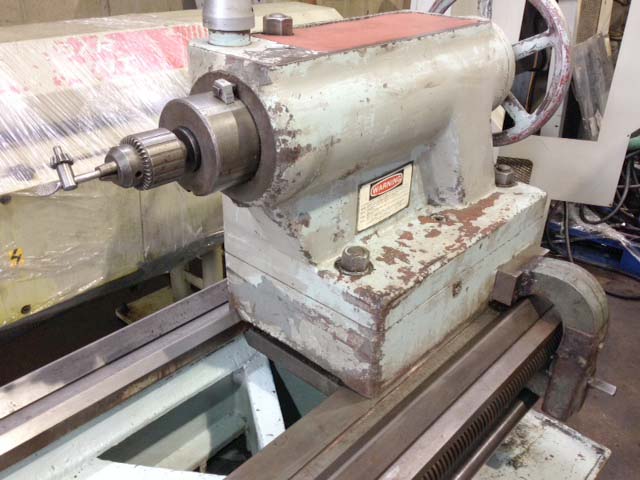

Tailstock, Spindle Travel............................ 12"
Tailstock, Spindle Diameter.......................... 5-1/2"
Tailstock, Spindle Taper............................. # 6MT
(21) Spindle Speeds, Range........................... 5 to 500 RPM
Spindle Nose, Type................................... A1-11
Spindle Horsepower................................... 40/53 HP

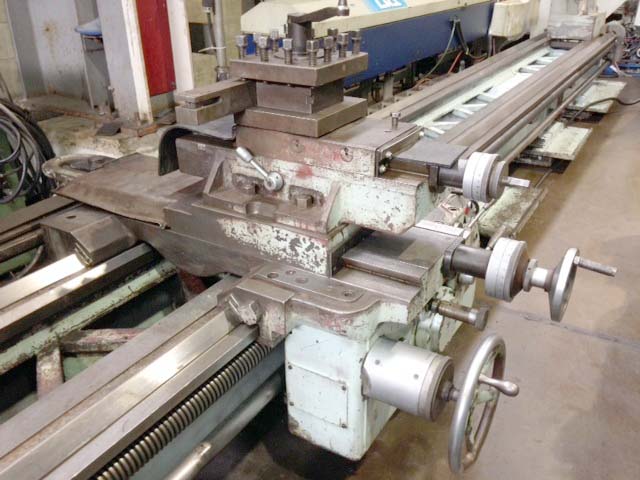

Carriage Power Rapid Traverse........................ 156 IPM
Threading Leads, Range............................... .006" to .363 IPR
(51) Thread Changes, Range (Inch).................... 1/4 to 30 TPI
(62) Thread Changes, Range (Metric).................. 1 to 120 mm
Electrics ........................................... 440/220/3/60
Approximate Machine Weight........................... 32,625 LBS

CONDITION: Machine Appears to be in Very Good Condition!

Specifications:

40" X 240" POREBA GAP BED ENGINE LATHE

40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
  • 40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
  • 40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
  • 40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
  • 40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
  • 40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
  • 40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
  • 40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
  • 40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
  • 40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.
  • 40" x 240" POREBA, Model TR100B1/M6, 40" Swing over Ways, 54" Swing in the Gap, 4-3/4" Thru Hole, (3) Steady Rest, Follow Rest, Taper, Threading, New 1978.

Share:

Print Details

Fields marked with * are required.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Fields marked with * are required.


      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      Brand
      POREBA

      Model
      TR100B1/6M

      Type
      Lathes, Engine

      Stock #
      K14298

      Condition
      Very Good

      Year
      1978

      Request a Quote Today!

      Get Started

      Equipped With

      31" 4-Jaw Chuck, Face Plate, (3) Steady Rest, Follow Rest, Coolant Pans, Inch / Metric Threading, Taper Attachmnet, Induction-Hardened Guideways, Rapid Traverse for Carriage, Misc Boring Bars and tools, Central Lubrication for Guideways, Coolant System.

      SPECIFICATIONS:
      Maximum Swing Over Bed............................... 40"
      Maximum Swing in Gap................................. 54"
      Maximum Swing Over Carriage.......................... 26-3/4"
      Turning Length in Gap................................ 15-3/8"
      Max. Distance Between Centers........................ 240"
      Hole Thru Spindle.................................... 4-3/4"
      Tailstock, Spindle Travel............................ 12"
      Tailstock, Spindle Diameter.......................... 5-1/2"
      Tailstock, Spindle Taper............................. # 6MT
      (21) Spindle Speeds, Range........................... 5 to 500 RPM
      Spindle Nose, Type................................... A1-11
      Spindle Horsepower................................... 40/53 HP
      Carriage Power Rapid Traverse........................ 156 IPM
      Threading Leads, Range............................... .006" to .363 IPR
      (51) Thread Changes, Range (Inch).................... 1/4 to 30 TPI
      (62) Thread Changes, Range (Metric).................. 1 to 120 mm
      Electrics ........................................... 440/220/3/60
      Approximate Machine Weight........................... 32,625 LBS

      CONDITION: Machine Appears to be in Very Good Condition!
