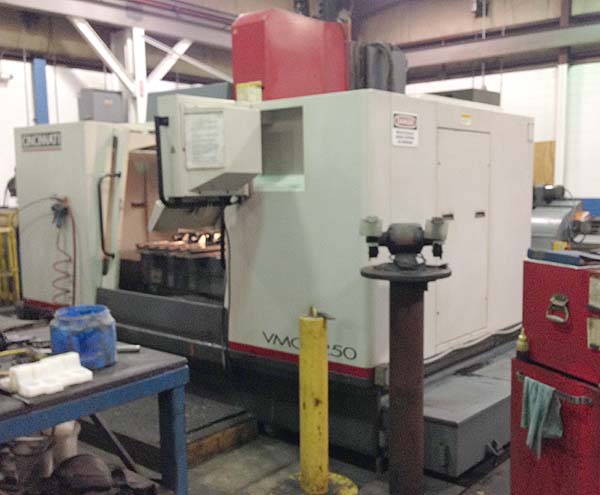

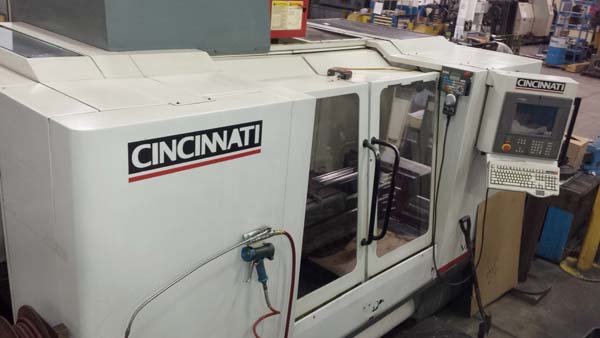

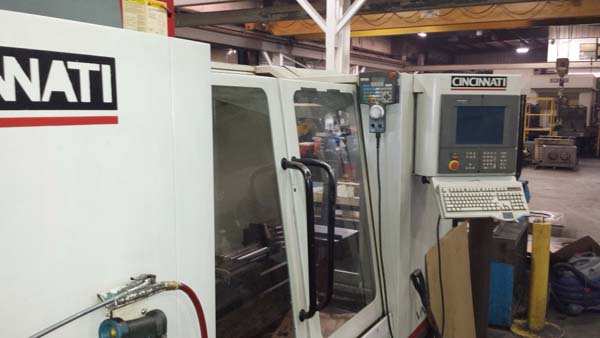

CINCINNATI ARROW 1250 CNC VERTICAL MACHINING CENTER

Stock #: K14470

Brand: Cincinnati
Model: ARROW 1250
Type: Machining Centers, Vertical
Condition: Excellent
Year: 1998

Equipped With:

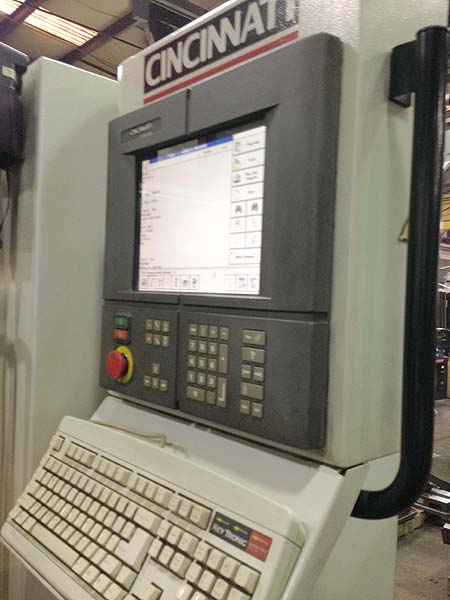

Acramatic 2100 PC Based CNC Control w/ Color CRT, Touch Screen Programming, Rigid/Solid Tapping, Background Edit, Multi Part Program Storage, Tool Setting Probe, Renishaw Part Probe,Thru the Spindle Coolant, RS-232 Data Line, Full Coolant Enclosure, Chip	 Conveyor, and Coolant System.

SPECIFICATIONS:
X Travel (Longitudinal)............................... 50"
Y Travel (Cross)...................................... 30"
Z Travel (Vertical)................................... 30"
Table Working Surface................................. 60"x30"
Table Work Load Capacity.............................. 4410 LBS
Spindle Horsepower.................................... 15 HP
Spindle Speeds........................................ 60-8000 RPM
Spindle Taper......................................... CAT 40
Feed Rates, X & Y..................................... 0.1 to 472 IPM
Feed Rate, Z.......................................... 0.1 to 472 IPM
Rapid Traverse X & Y.................................. 945 IPM
Rapid Traverse Z...................................... 945 IPM
Tool Storage Capacity................................. 21
Approximate Dimensions................................ 145.6"x145.7"
Approximate Height.................................... 142"
Approximate Weight.................................... 19,360 LBS

CONDITION: Machine appears to be in Excellent Condition !
