Stock #: K14462
Brand: GIDDINGS & LEWIS
Model: HMC-410
Type: Machining Centers, Horizontal
Condition: Excellent
Year: 2005
Fanuc 160iM CNC Control, Rigid Tapping, Helical Interpolation, Multiple Part Program Storage, RS-232 Port, Network Port, (2) 63" x 49" Pallets, (2) Extra 49" x 49" Pallets, Full Contouring 4th Axis Pallet Rotation, 150 Position Automatic Tool Changer, Full Coolant Enclosure, Thru Spindle Coolant, Chip and Coolant System System.
Specifications: |
|
|---|---|
| CNC Control | yes |

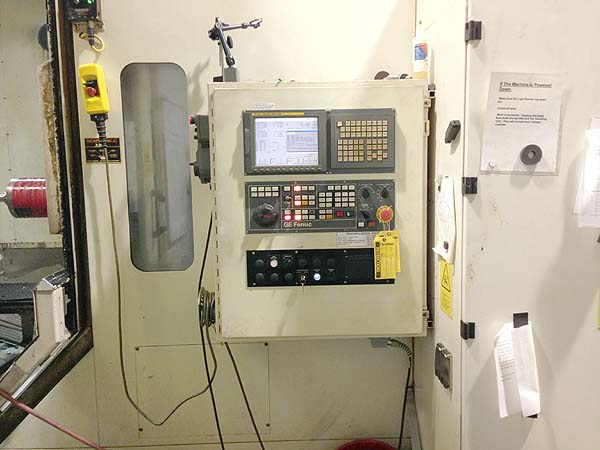

| Type of CNC Control | Fanuc 160iM CNC Control |
| # Axis | 4 |
| # Pallets | 2 |
| Pallet Dimensions | 63"x 49.2" |
| Number of Index Positions | 360,000 |
| Max Pallet Load | 15,430 LBS |
| Max Rotatable Part Size | 118" |
| X-Axis (Longitudinal Table Travel) | 129" |
| Y-Axis (Vertical Travel) | 82.6" |
| Z-Axis (Spindle Travel) | 78.7" |
| Spindle Nose to Pallet Center Minimum | 13.8" |
| Feed Rate, All Axes | .001 - 630 IPM |
| Rapid Traverse Rate, All Axes | 1260 IPM |
| Spindle Horsepower | 60 HP |
| Spindle Taper | #50 CAT |
| Spindle Speed Range | 30 - 6,000 RPM |
| Coolant Through Spindle | yes |

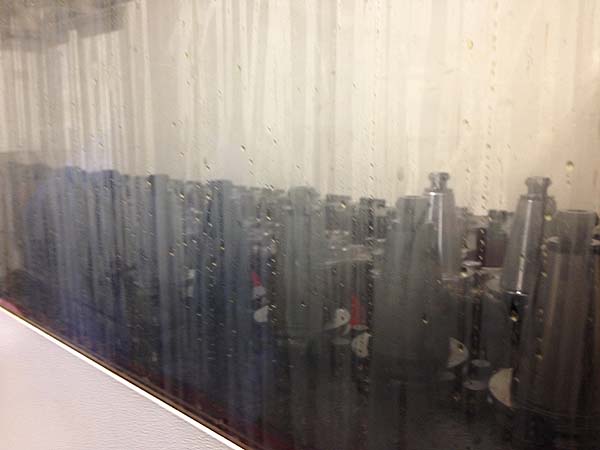

| Automatic Tool Changer Capacity (ATC) | 150 |
| Electrics | 480/3/60 |
| Approximate Machine Dimensions | 359" x 348" |
| Approximate Machine Height | 188" |
| Approximate Machine Weight | 92,000 LBS |
CONDITION: This Machine Appears to be in Excellent Condition!
