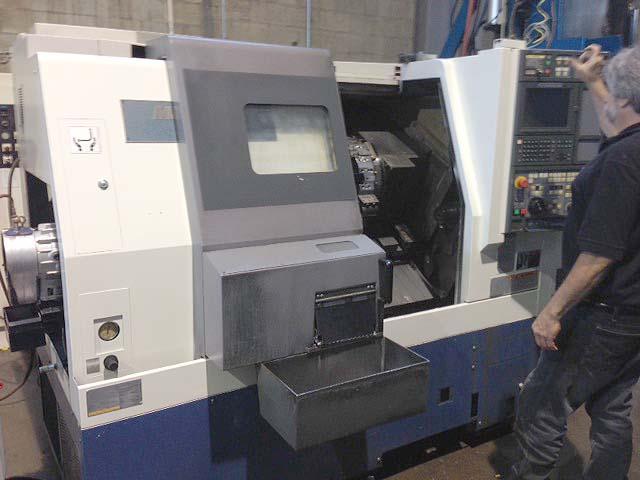

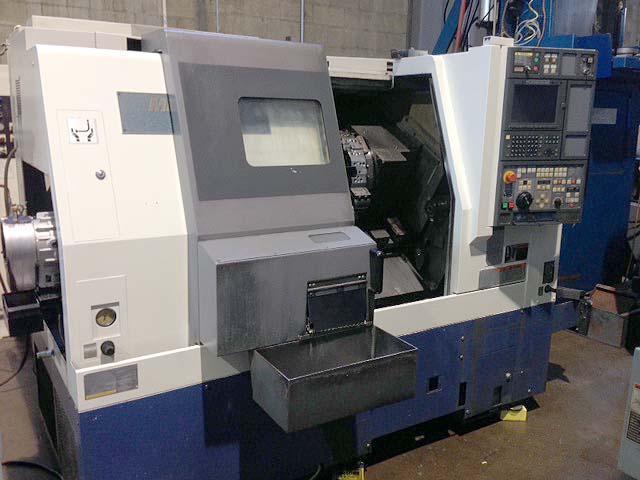

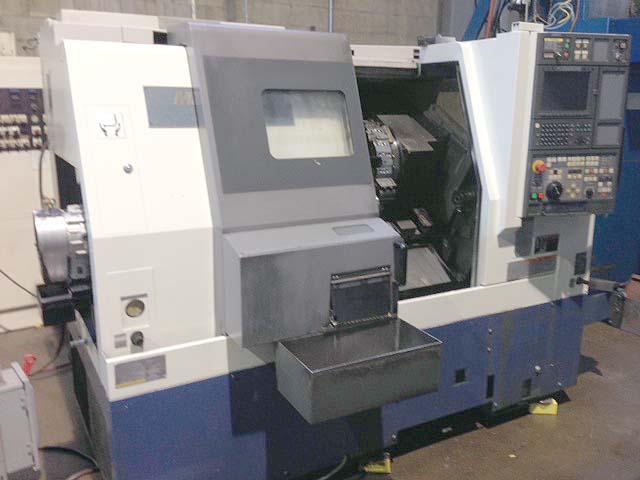

MORI SEIKI SL-253B/500 CNC TURNING CENTER

Stock #: K14459

Brand: MORI SEIKI
Model: SL-253B/500
Type: Lathes, CNC
Condition: Excellent
Year: 2001

Equipped With:

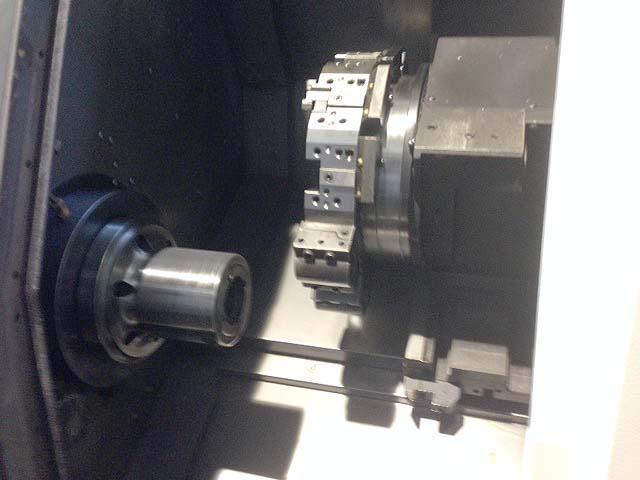

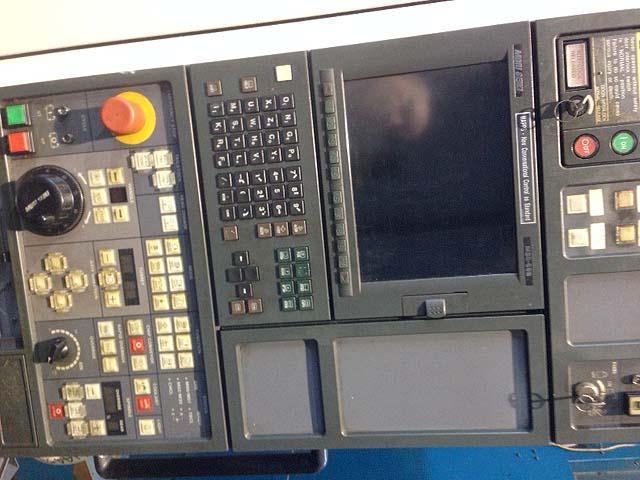

Mori Seiki MSC-500 (Fanuc 21i) CNC Control with Color CRT, MAPPS Conversational Programming Package, RS-232 Port, Multiple Part Program Storage, 12 Station Tool Turret, Power Collet Chuck with 2.85" Capacity, Programmable Tailstock, Barfeed Interface, Parts Catcher, Coolant System and Chip Conveyor.

Specifications:
CNC Control yes
Type of CNC Control Mori Seiki MSC-500 (Fanuc 21i) CNC Control
Max Swing Over Bed 26.7"
Max Swing Over Carriage 20.1"
Max Turning Diameter 15.3"
Max Tailstock Position 22.6"
Max Turning Length 19.1"
X-Axis (Cross Travel) 9.3"
Z-Axis (Longitudinal Travel) 19.5"
Number of Tool Turrets 1
Tool Turret Positions 12 Total
Spindle Nose A2-8
Bar Capacity 2.85"
Spindle Speed Range (1 RPM Increments) 35 - 3,500 RPM
Spindle Horsepower 20 HP
Electrics 230/3/60
Approximate Machine Dimensions 102" x 78"
Approximate Machine Height 80"
Approximate Machine Weight 11,000 LBS
CONDITION: This Machine Appears to be in Excellent Condition!!

MORI SEIKI SL-253B/500 CNC TURNING CENTER

MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.
MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.
MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.
MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.
MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.
MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.
MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.
MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.
  • MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.
  • MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.
  • MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.
  • MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.
  • MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.
  • MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.
  • MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.
  • MORI SEIKI SL-253B/500, Mori MSC-500 (Fanuc 21i) CNC Control, 26" Swing Over the Bed, 20" Swing Over the Carriage, Tailstock with 19" Centers, 2.85" Bar Capacity, Collet Chuck, New 2001.

Machine Videos

Share:

Print Details

Fields marked with * are required.

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Fields marked with * are required.


      This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

      Brand
      MORI SEIKI

      Model
      SL-253B/500

      Type
      Lathes, CNC

      Stock #
      K14459

      Condition
      Excellent

      Year
      2001

      Request a Quote Today!

      Get Started

      Equipped With

      Mori Seiki MSC-500 (Fanuc 21i) CNC Control with Color CRT, MAPPS Conversational Programming Package, RS-232 Port, Multiple Part Program Storage, 12 Station Tool Turret, Power Collet Chuck with 2.85" Capacity, Programmable Tailstock, Barfeed Interface, Parts Catcher, Coolant System and Chip Conveyor.

      Specifications
      CNC Control yes
      Type of CNC Control Mori Seiki MSC-500 (Fanuc 21i) CNC Control
      Max Swing Over Bed 26.7"
      Max Swing Over Carriage 20.1"
      Max Turning Diameter 15.3"
      Max Tailstock Position 22.6"
      Max Turning Length 19.1"
      X-Axis (Cross Travel) 9.3"
      Z-Axis (Longitudinal Travel) 19.5"
      Number of Tool Turrets 1
      Tool Turret Positions 12 Total
      Spindle Nose A2-8
      Bar Capacity 2.85"
      Spindle Speed Range (1 RPM Increments) 35 - 3,500 RPM
      Spindle Horsepower 20 HP
      Electrics 230/3/60
      Approximate Machine Dimensions 102" x 78"
      Approximate Machine Height 80"
      Approximate Machine Weight 11,000 LBS
      CONDITION: This Machine Appears to be in Excellent Condition!!
