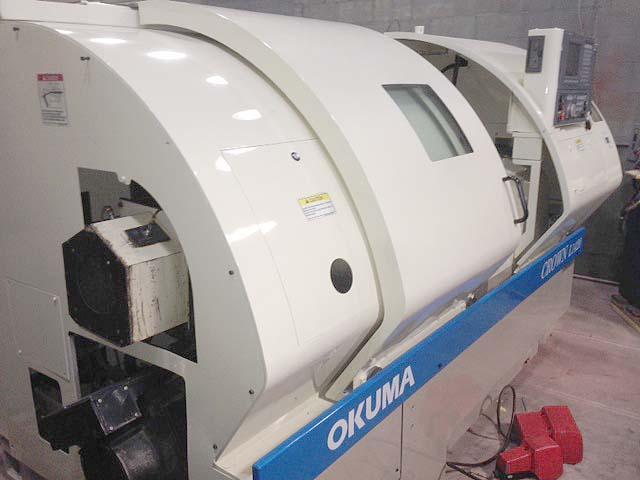

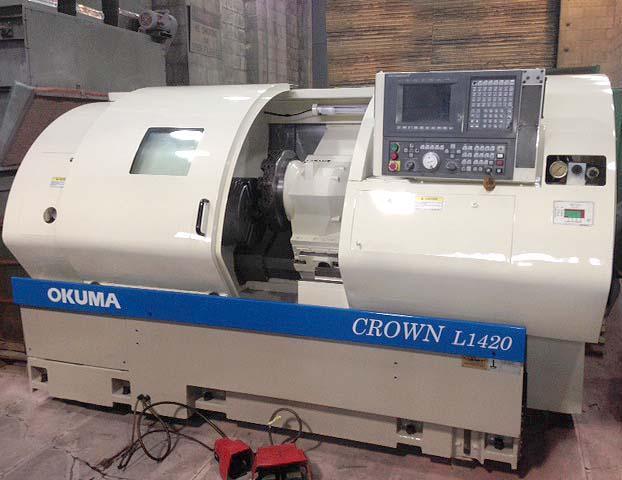

OKUMA CROWN-L1420 Big Bore CNC TURNING CENTER

Stock #: K14458

Brand: OKUMA
Model: CROWN L1420/650
Type: Lathes, CNC
Condition: Very Good
Year: 2001

Equipped With:

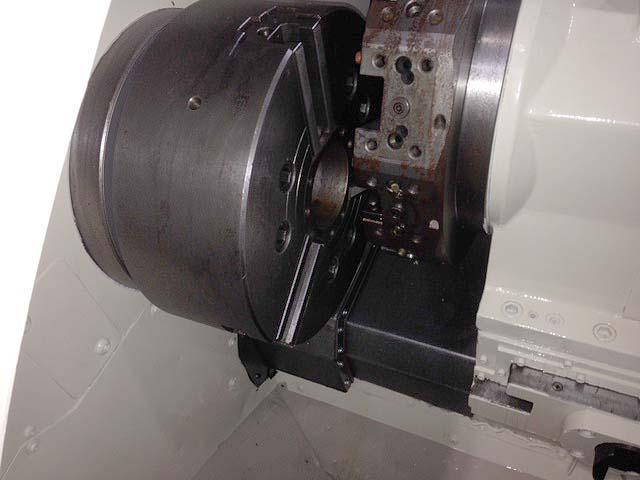

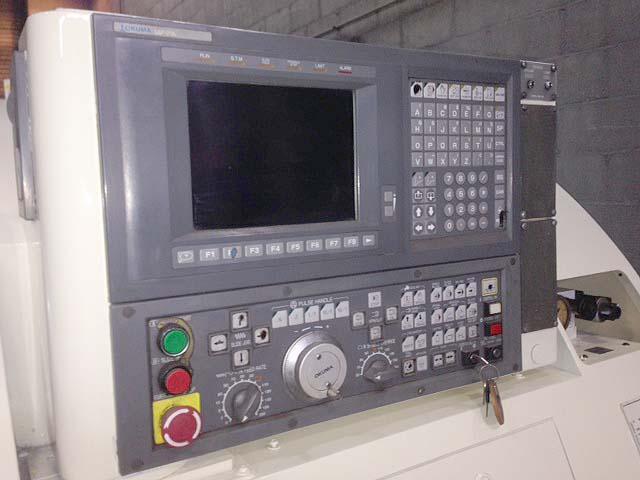

OSP U10L CNC Control, Animation, Lap 4, User Task 2, MacMan, RS-232 Port, Floppy Disk Drive, 15" 3-Jaw Kitagawa Hydraulic Chuck, 12 Position Turret, Hydraulic Tailstock with Programmable Quill, Chip Conveyor, Coolant System.

SPECIFICATIONS:
Max Swing Over Bed ..................................... 28"
Max Swing Over Saddle................................... 18.9"
Max Tail Stock Position................................. 31"
Max Turning Length...................................... 25.29"
Max Work Diameter ...................................... 14.17"
Chuck Size.............................................. 15"
Spindle Bore............................................ 3.15"
Cross Travel (X-Axis)................................... 9.05"
Longitudinal Travel (Z-Axis)............................ 25.59"
Rapid Traverse Rate (X-Axis)............................ 472 IPM
Rapid Traverse Rate (Z-Axis)............................ 591 IPM
Tool Positions.......................................... 12
Spindle Nose ........................................... A2-8
Spindle Speed Range..................................... 65-3500 RPM
Spindle Drive Motor (30 Minute)......................... 30 HP

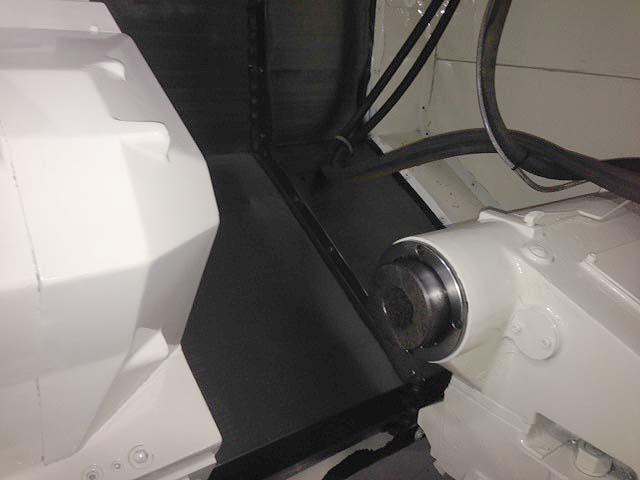

Hydraulic Tailstock Stroke.............................. 4.72"
Hydraulic Tailstock Taper............................... #5 MT
Approximate Machine Dimensions.......................... 135" x 72"
Approximate Machine Weight.............................. 15,000 LBS

CONDITION:  Appears to be Very Good Condition !
