Stock #: K14097
Brand: LEADWELL
Model: MCV-2200
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2007
Fanuc 0iMC CNC Control, Multiple Part Program Storage, Custom Macro B, Rigid Tap, Tool Offsets and Fixture Offsets, Backlash Comp, RS-232 Port, Spindle Chiller, Thru-Spindle Coolant, Heavy Duty Box Way Construction, 32 Station Double Arm Automatic Tool Changer, Heavy Duty 50 Taper Geared Spindle, Work Lights, Dual Chip Augers, Coolant System.
Specifications: |
|
|---|---|
| CNC Control | yes |

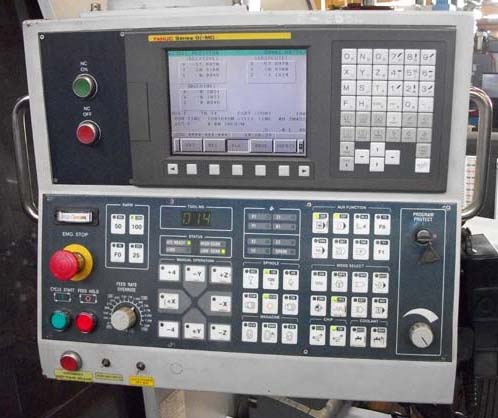

| Type of CNC Control | Fanuc 0iMC CNC Control |
| # Axis | 3 |
| Table Size | 94.4" x 37.7" |
| Table Load Capacity | 6,000 LBS |
| X-Axis (Longitudinal Travel) | 86.6" |
| Y-Axis (Cross Travel) | 40" |
| Z-Axis (Vertical Travel) | 31.4" |
| Max Clearance Tabletop to Spindle Nose | 41" |
| Feed Rates, All Axes | 0.1 to 400 IPM |
| Rapid Traverse Rate, All Axes | 590 IPM |
| Spindle Horsepower | 35 HP |
| Spindle Speed Range | 30 - 6,000 RPM |
| Spindle Taper | 50 Taper |
| Coolant Thru Spindle | yes |
| Automatic Tool Changer Capacity (ATC) | 32 |
| Electrics | 240/3/60 |
| Approximate Machine Dimensions | 205" x 182" |
| Approximate Machine Height | 134" |
| Approximate Machine Weight | 48,000 LBS |
CONDITION: This Machine Appears to be in Excellent Condition !
