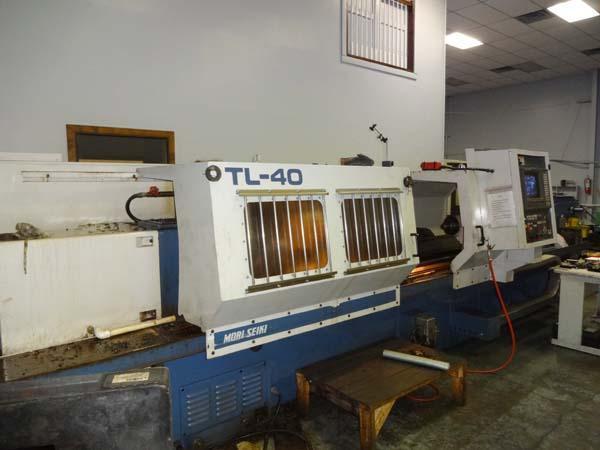

MORI SEIKI TL-40B CNC TURNING CENTER

Stock #: K14137

Brand: MORI SEIKI
Model: TL-40B/3000
Type: Lathes, CNC
Condition: Excellent
Year: 1993

Equipped With:

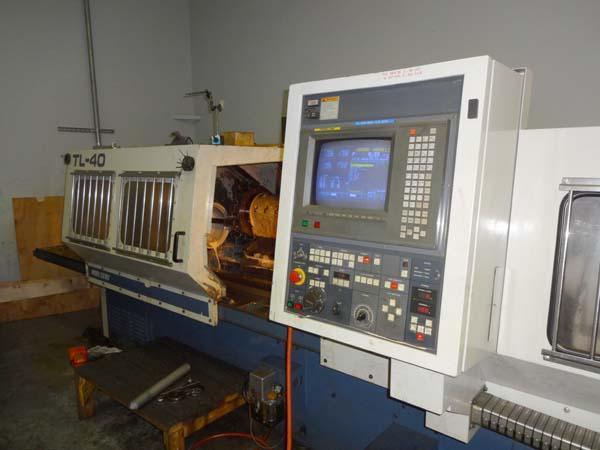

Mori Seiki Moric-T6F (Fanuc 16TF) CNC Control w/CRT, Color Graphics, Spindle Load Meter, Manual Pulse Generator, RS-232 Port, Steady Rest, 12" 3-Jaw Hydraulic Chuck, 8 Position Turret, Chip Conveyor and Coolant System.

Specifications:

CNC Control yes
Type of CNC Control Mori Seiki Moric-T6F (Fanuc 16TF) CNC Control
Max Swing Over Bed 24"
Max Swing Over Carriage 15"
Max Turning Diameter 17.3"
Max Tailstock Position 147.6"
Max Machinable Center Distance 144.4"
Chuck Size 12" 3-Jaw Hydraulic
X-Axis (Cross Travel) 9.3"
Z-Axis (Longitudinal Travel) 144.4"
X-Axis Rapid Traverse Rate 236 IPM
Z-Axis Rapid Traverse Rate 472 IPM
Spindle Nose A2-8
Spindle Bore 4.1"
Bar Capacity 3.6"
Spindle Speed Range 20-2000 RPM
Spindle Power 30 HP
Tailstock Quill Diameter #5 MT
Approximate Machine Dimensions 236" x 99.2"
CONDITION: This Machine Appears to be in Excellent Condition !

MORI SEIKI TL-40B CNC TURNING CENTER
