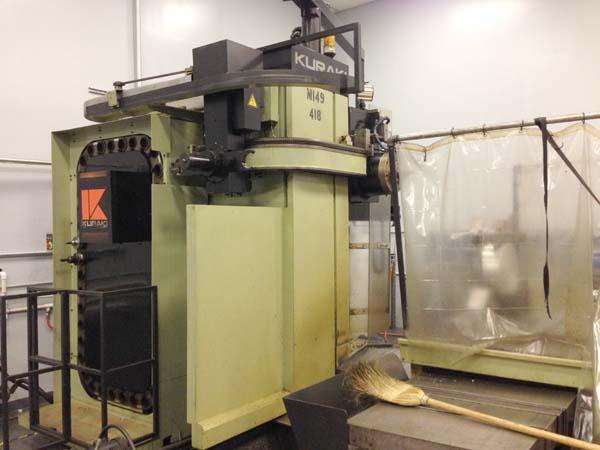

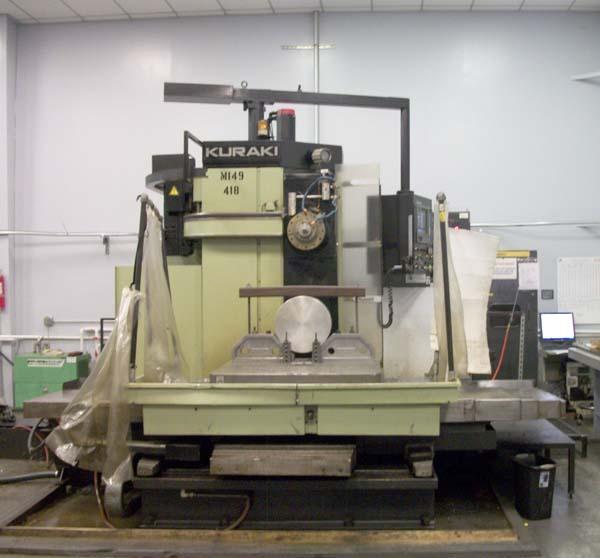

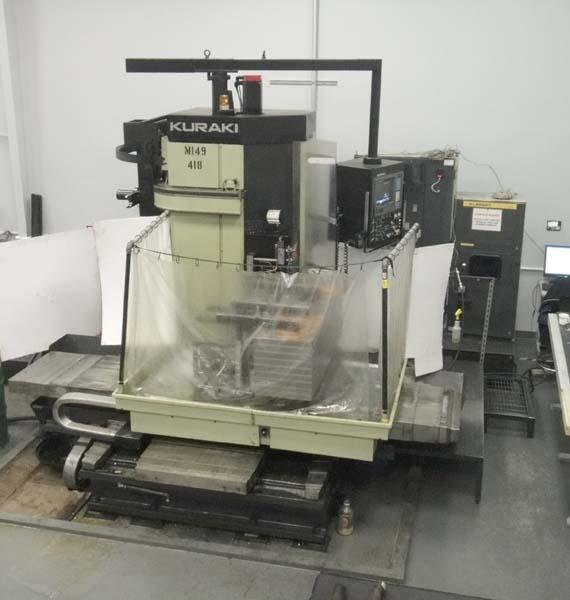

Stock #: K14136
Brand: KURAKI
Model: KBT-10DX
Type: Boring Mills, Horizontal, Table Type
Condition: Excellent
Year: 1991
Fanuc 15M CNC Control, RS-232 Port, Renishaw Probe, Multiple Program Storage, Full Contouring 4th Axis Rotary Table, Heavy Duty 35 HP 50 Taper Spindle, Spindle Chiller, 40 Station Automatic Tool Changer, Coolant System.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Fanuc 15M CNC Control |

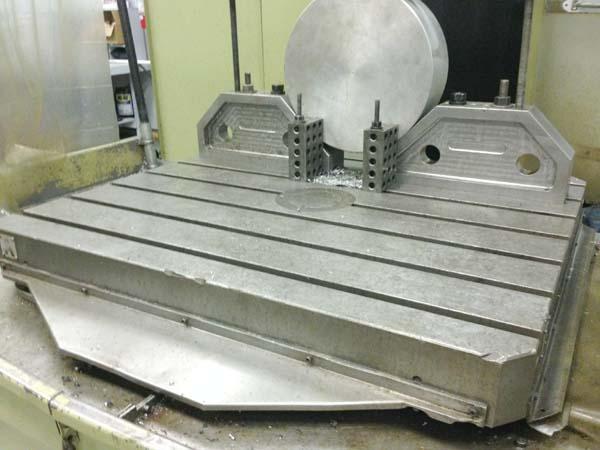

| Table Size | 43.3" x 37.4" |
| Table Load Capacity | 6,000 LBS |
| X-Axis (Table Cross Travel) | 59" |
| Y-Axis (Vertical Travel ) | 39.7" |
| Z-Axis (Spindle (Quill) Travel) | 19.68" |
| W-Axis (Column Longitudinal Travel) | 31.5" |
| B-Axis (Rotary Table Positions) | 360,000 |
| Spindle Diameter | 4" |
| Spindle Taper | #50 |
| Spindle Horsepower | 30 HP |
| Spindle Speed Range | 25 - 2,500 RPM |
| Automatic Tool Changer Capacity (ATC) | 40 |
| Electrics | 230/3/60 |
| Approximate Machine Dimensions | 181" x 226" |
| Approximate Machine Height | 130" |
| Approximate Machine Weight | 38,000 LBS |
CONDITION: From a Large Aerospace Facility. This Machine Appears to be in Excellent Condition!
