Stock #: K14023
Brand: OKUMA
Model: LB-15II-M
Type: Lathes, CNC (3-Axis or More)
Condition: Excellent
Year: 1998

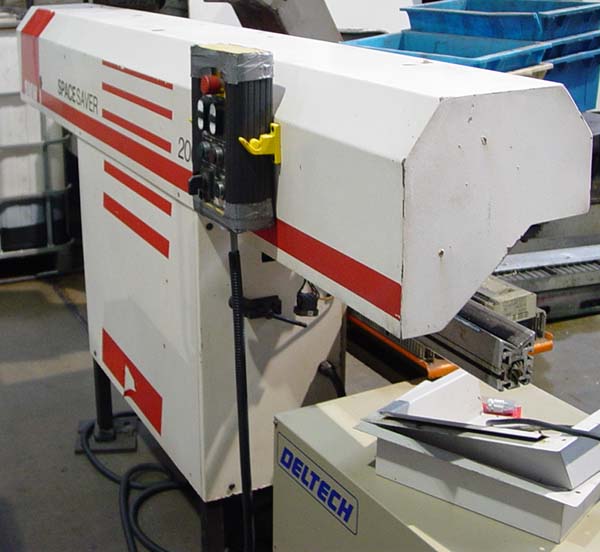

Okuma OSP 7000 CNC Control with CRT, 2.5 Bar Capacity "Big Bore" Option, Live (Rotating) Tool Option, Full Contouring (360,000 Positions) C-Axis Option, Tailstock w/ 40" Centers, SMW Space Saver Barfeeder, Lap 4, Nose-R 2B, User Task 2, Exp. Auto Chamf., RS232 Port for DNC System, Tool Offsets, 12 Position ID/OD Tool Turret, Heavy Duty Slant Bed Construction, Centralized Lubrication System, Animation, Load Monitor, Chip Conveyor, Coolant System.
SPECIFICATIONS:
Max Swing Over Saddle..................................... 13.38"
Max Turning Diameter...................................... 13.38"
Max Work Length........................................... 39.37"
Distance Between Centers.................................. 40.15"
Cross Travel (X-Axis)..................................... 10.23"
Longitudinal Travel (Z-Axis).............................. 40.15"
C Axis.................................................... 360,000 Pos.
Cutting Feed.............................................. .001-39 IPR
Rapid Traverse Rate (X-Axis).............................. 591 IPM
Rapid Traverse Rate (Z-Axis).............................. 787 IPM
Number of Turrets......................................... 1
Turret Positions.......................................... 12
Spindle Bore.............................................. 3.15"
Bar Capacity.............................................. 2.5"
Spindle Nose.............................................. A2-8
Spindle Speed Range....................................... 38-3800 RPM
Spindle Drive Motor....................................... 29 HP
Live Tool Motor........................................... 4.9 HP
Live Tool Speeds.......................................... 45 - 4500 RPM
Approximate Machine Dimension............................. 137" x 76"
Approximate Machine Height................................ 80"
Approximate Machine Weight................................ 10,000 LBS
CONDITION: Came from a Large Food Equipment Manufacturer. Ran Plastic and Stainless Steel Only. Machine Appears to be in Excellent Condition !
