Stock #: K14163
Brand: CINCINNATI MILACRON
Model: FALCON 200
Type: Lathes, CNC
Condition: Excellent
Year: 1997

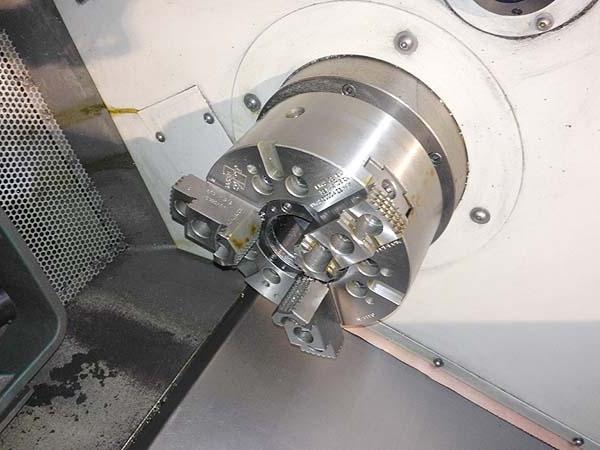

Siemens Acramatic 2100 CNC Control, Touch Screen Programming with RAP Conversational Programming, RS-232 Port and 3-1/2" Floppy Drive for Uploading M and G Code Programs, Fanuc 0 Program Translation, Set up for a Removable Renishaw Tool Probe but is Missing Probe Body, Spindle Load Meter, Realtime Enhanced Performance, Tailstock, 8.25" 3-Jaw Hydraulic Chuck, 12 Position Tool Turret, Coolant System, Tooling Package.
Specifications: |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Siemens Acramatic 2100 CNC Control |
| Max Swing Over Bed | 20.86" |
| Max Swing Over Carriage | 9.84" |
| Max Tailstock Position | 17.5" |
| Max Machinable Center Distance | 16.53" |
| Chuck Size | 8.25" |
| X-Axis (Cross Travel) | 8.45" |
| Z-Axis (Longitudinal Travel) | 16.53" |
| X-Axis Feed Rate | .01-630 IPM |
| Z-Axis Feed Rate | .01-630 IPM |
| # Tool Turrets | 1 |
| Tool Turret Positions | 12 Total |
| Spindle Nose | A2-6 |
| Spindle Bore | 2" |
| Spindle Speed Range (1 RPM Increments) | 40 - 4,500 RPM |
| Spindle Horsepower | 15 HP |
| Approximate Machine Dimensions | 109" x 55" |
| Approximate Machine Height | 77" |
| Approximate Machine Weight | 6,600 LBS |
CONDITION: Machine Comes From a Very Clean Shop and Appears to be in Excellent Condition !
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Equipped With |
|---|
|
Siemens Acramatic 2100 CNC Control, Touch Screen Programming with RAP Conversational Programming, RS-232 Port and 3-1/2" Floppy Drive for Uploading M and G Code Programs, Fanuc 0 Program Translation, Set up for a Removable Renishaw Tool Probe but is Missing Probe Body, Spindle Load Meter, Realtime Enhanced Performance, Tailstock, 8.25" 3-Jaw Hydraulic Chuck, 12 Position Tool Turret, Coolant System, Tooling Package. |
Specifications |
|
|---|---|
| CNC Control | yes |
| Type of CNC Control | Siemens Acramatic 2100 CNC Control |
| Max Swing Over Bed | 20.86" |
| Max Swing Over Carriage | 9.84" |
| Max Tailstock Position | 17.5" |
| Max Machinable Center Distance | 16.53" |
| Chuck Size | 8.25" |
| X-Axis (Cross Travel) | 8.45" |
| Z-Axis (Longitudinal Travel) | 16.53" |
| X-Axis Feed Rate | .01-630 IPM |
| Z-Axis Feed Rate | .01-630 IPM |
| # Tool Turrets | 1 |
| Tool Turret Positions | 12 Total |
| Spindle Nose | A2-6 |
| Spindle Bore | 2" |
| Spindle Speed Range (1 RPM Increments) | 40 - 4,500 RPM |
| Spindle Horsepower | 15 HP |
| Approximate Machine Dimensions | 109" x 55" |
| Approximate Machine Height | 77" |
| Approximate Machine Weight | 6,600 LBS |
| CONDITION: Machine Comes From a Very Clean Shop and Appears to be in Excellent Condition ! |
