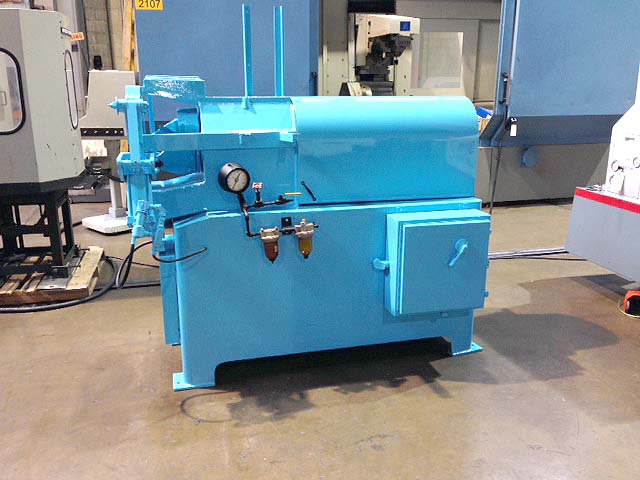

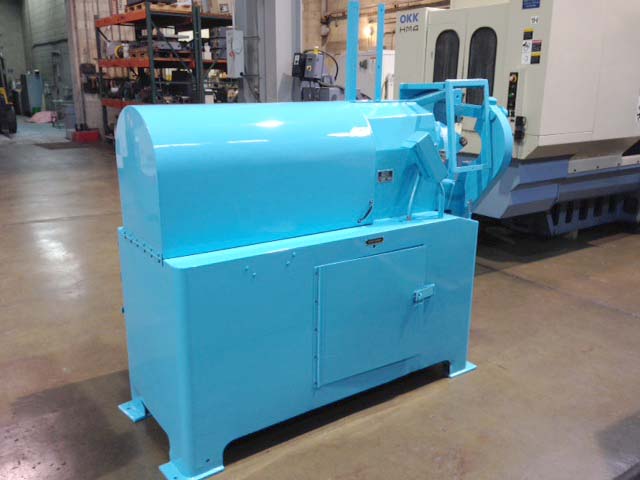

CONRAC, PHI PIPE FLANGING MACHINE

Stock #: K14170

Brand: PHI
Model: M343
Type: Flangers
Condition: Excellent
Year: Not Specified

Equipped With:

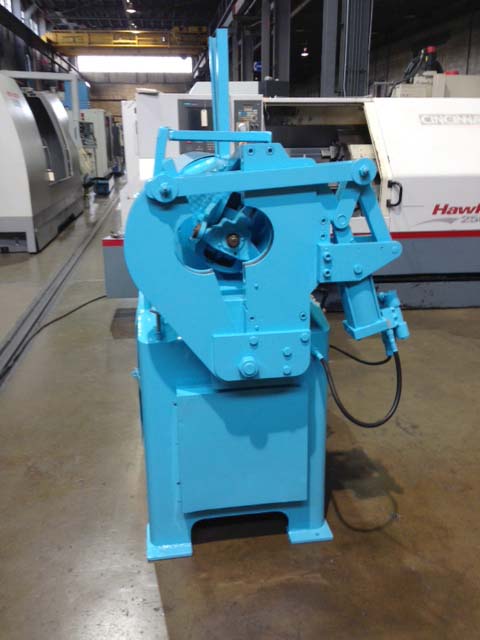

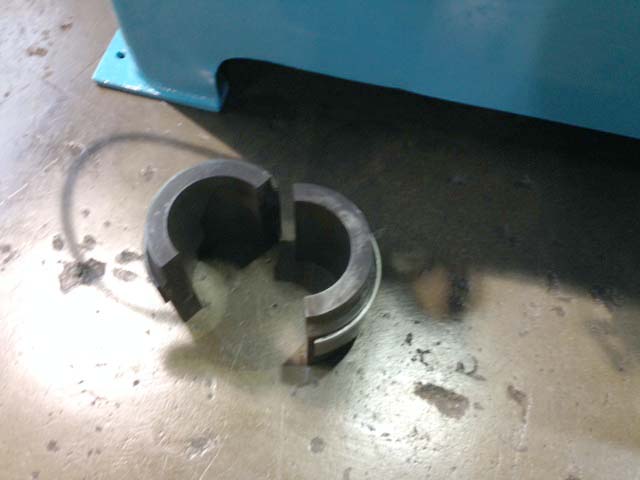

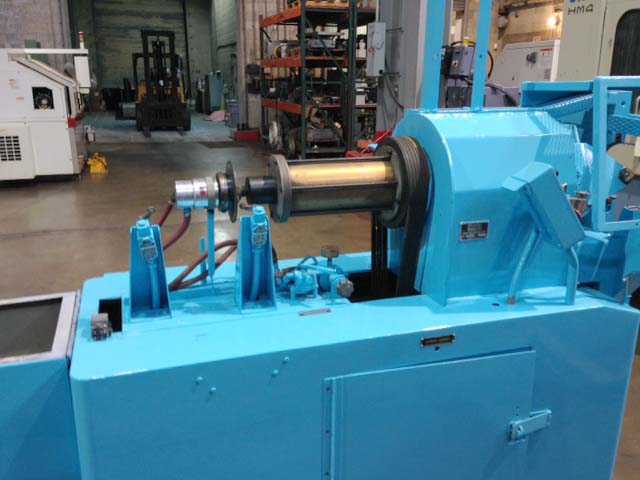

The Model M343 Flanging Machine is Designed to Cold-Form Pipe Ends to a 90 Degree Flange. The Machine is Simple in Design and Simple to Operate. Once the Pipe is Automatically Clamped into Place, The Flange is formed in Minutes. The Whole Operation requires a Maximum of 5 Minutes for 4" Diameter Pipe. This Compares Favorably to the Approximately 45 Minutes required to Fabricate and Weld a Flange onto   a Pipe. Rotary Forming Head, Fully Automatic Operation, Automatic Clamping Fixture, Self-Contained Hydraulic System.

SPECIFICATIONS:
Maximum
Minimum Diameter of Part............................ 1/2"
Forming Capacity
  Schedule 5,10 and 40 Pipe......................... 1/2" to 4"
  Max Forming Cap of 8" Dia Pipe.................... .322 Wall Thickness
  Schedule 80 Pipe.................................. 1/2" to 2"
  Max Forming Cap of 4" Dia Pipe.................... .337 Wall Thickness
Main Motor.......................................... 5 HP
Electrics........................................... 480/3/60
Approximate Machine Dimensions...................... 82" x 45"
Approximate Machine Height.......................... 69"
Approximate Machine Weight.......................... 2,500 lbs

CONDITION: Machine Appears to be in Excellent Condition !
