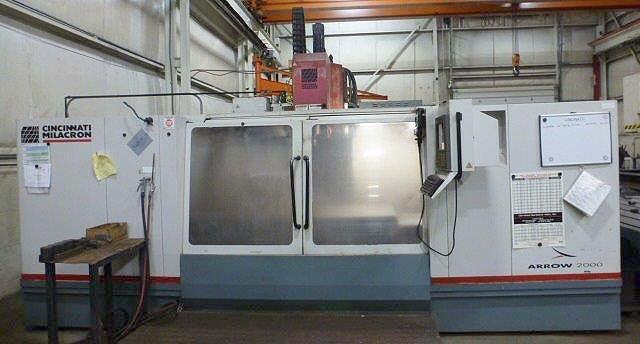

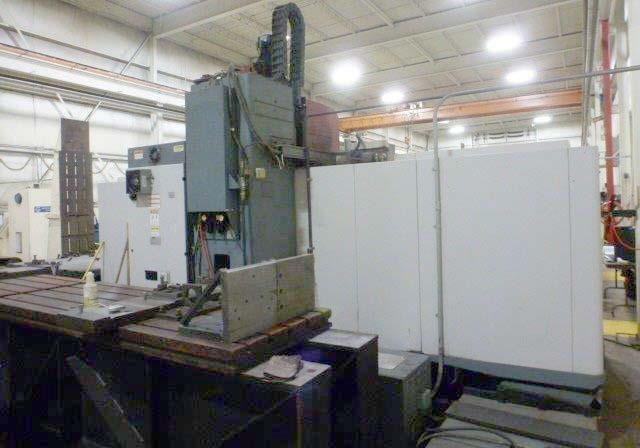

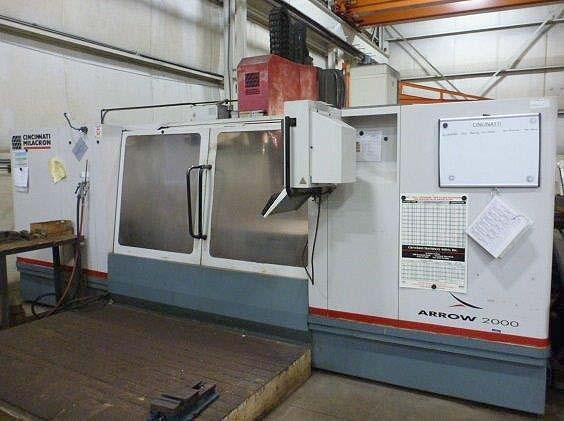

CINCINNATI ARROW-2000 CNC VERTICAL MACHINING CENTER

Stock #: K14171

Brand: CINCINNATI MILACRON
Model: ARROW 2000
Type: Machining Centers, Vertical
Condition: Excellent
Year: 1998

Equipped With:

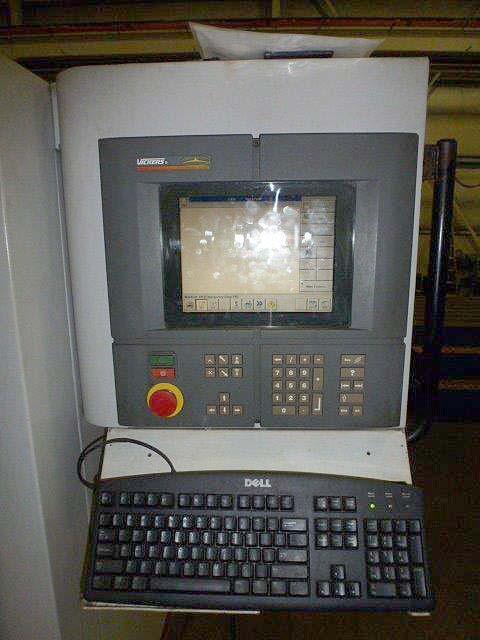

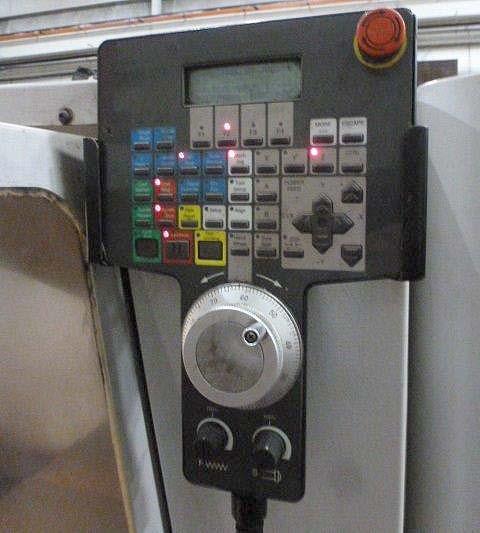

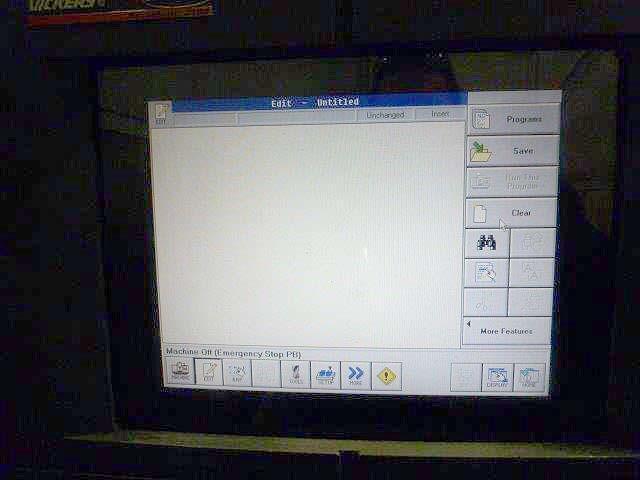

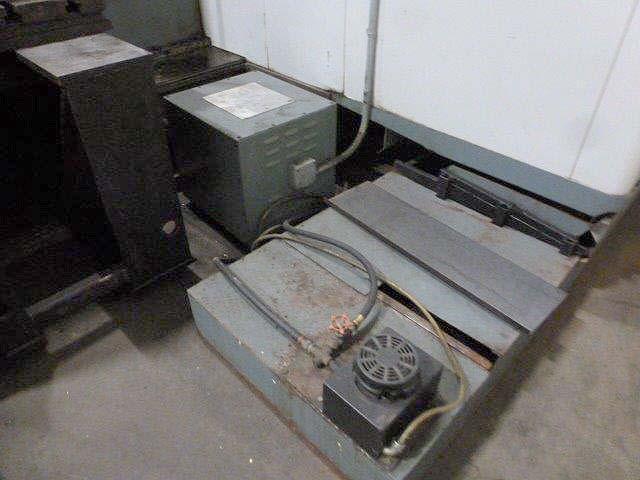

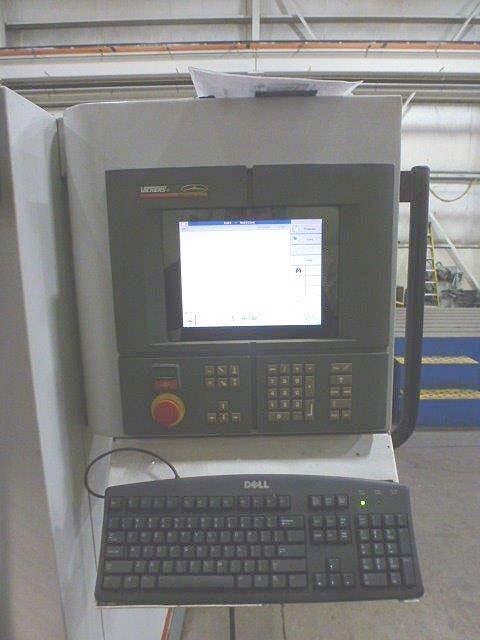

Cincinnati Acramatic 2100 PC-Based CNC Control w/Color CRT, Full Keyboard, 3-1/2" Floppy Disk Drive, Hand-Held Pendent Control, Background Edit, Multi Part Program Storage, Enhanced Tool Data, Programable Offsets, RS-232 Data Line, Arranged for Tool Setting Probe and Spindle Probe, Includes Spindle Probe Body without Toolholder, Full Coolant Enclosure, Coolant System.

Specifications:

CNC Control yes
Type of CNC Control Cincinnati Acramatic 2100 CNC Control
# Axis 3
Table Working Surface 90" x 30"
Table Load Capacity 6,615 LBS
X-Axis (Longitudinal Travel) 80"
Y-Axis (Cross Travel) 30"
Z-Axis (Vertical Travel) 30"
Feed Rates, All Axes .1 - 590 IPM
Rapid Traverse Rate, All Axes 945 IPM
Spindle Horsepower 15 HP
Spindle Speed Range 60 - 8,000 RPM
Spindle Taper #40
Automatic Tool Changer Capacity (ATC) 21
Electrics 460/3/60
Approximate Machine Dimensions 213" x 116"
Approximate Machine Height 129"
Approximate Machine Weight 24,000 LBS
CONDITION: This Machine Appears to be in Excellent Condition !
