Stock #: K15273

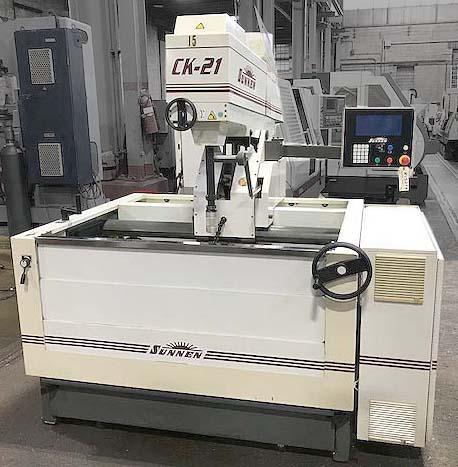

Brand: SUNNEN
Model: CK21-D
Type: Hones, Vertical
Condition: Like New
Year: 1999

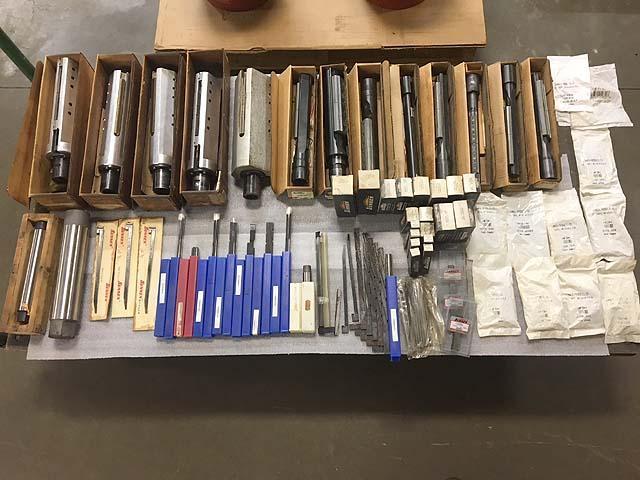

Size Control, 2-Stage Feed Profiling, Auto Rapids, Auto Retract, Preset Stock Removal, Automatic Feed Cycle with Automatic Shut Off, Tilt Table, Tooling Package of Hone Mandrels, Honing Oil Filter and Pump.
Specifications: |
|
|---|---|
| Diameter Range | .75" to 8" |

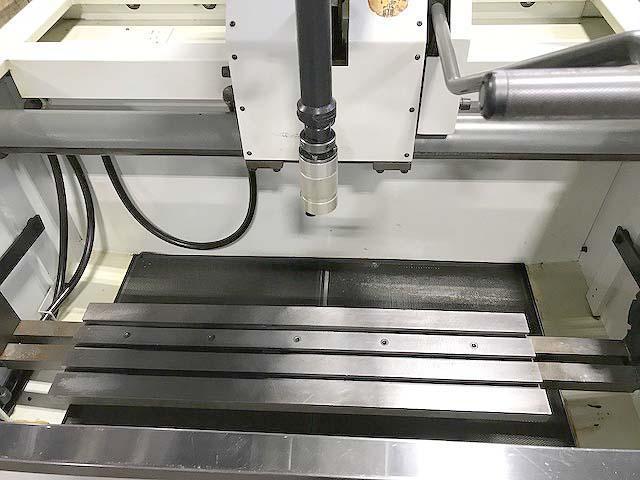

| Table Size | 12" x 40" |
| Max Part Weight | 1,500 LBS |
| Stroke Length | .75" to 12" |
| Spindle Speeds | 90 to 550 RPM |
| Stroke Rate | 40 to 100 SPM |
| Spindle Horsepower | 4 HP |
| Coolant Capacity (Oil) | 65 Gal |
| Approximate Machine Dimensions | 87" x 86" |
| Approximate Machine Height | 88" |
| Approximate Machine Weight | 3,000 LBS |
CONDITION: Machine Appears to be in Like New Condition !
